MTD 316-960-000 (1986) Snow Thrower

Model: 316-960-000 (1986)

Save
 Part Not Listed?Part Not Listed?
product name

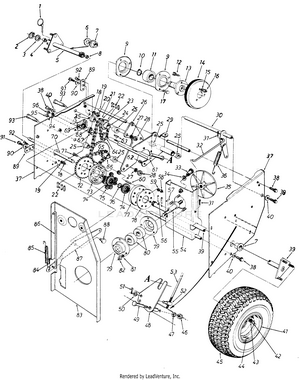

Parts

...
...
1
Click Pin MTD-714-0143A
...
2
Snap Ring .625" Shaft MTD-916-0115
...
3
Fl-Wash. .62" I.D. x 1.25" O.D. MTD-736-0187
...
4
Sleeve Brg. (Must Be Drilled After Press Fit) MTD-741-0305
...
5
Differential Tubing Ass'y.-R.H. MTD-05637
...
6
Fl-Wash. .62" I.D. x 1.25" O.D. MTD-736-0187
...
7
Flange Bearing w/ Flats MTD-941-0170
...
8
Sleeve Brg. MTD-741-0305
...
9
Bearing Housing MTD-05794
...
10
Snap Ring-1.00" Dia. MTD-716-0102
...
11
Ball Brg. .25MM x 52MM x 15MM Thk. MTD-941-0301
...
12
Hex Sems Bolt 5/16-18 x .75" 4. MTD-910-0198
...
13
Friction Wheel Adapter MTD-748-0281
...
14
Friction Wheel Ass'y. MTD-05080AP
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Hex Bolt 1/4-28 x 50" Lg. MTD-910-0195
...
18
L-Wash. 1/4" I.D. MTD-936-0329
...
19
Sliding Support Axle MTD-738-0278
...
20
Hex Nut 1/4-20 Thd. MTD-912-0287
...
21
#41 Chain-1/2" Pitch x 43 Links MTD-713-0270
...
22
Master Link for #41 Chain MTD-913-0723
...
23
#41 Chain-1/2" Pitch x 19 Links MTD-713-0199
...
xx
Master Link for #41 Chain MTD-913-0723
...
24
9 and 14 Teeth Sprocket Hub Ass'y. MTD-913-0193
...
25
Flange Brg. .630" I.D. MTD-748-0184
...
26
Chain Support Brkt. MTD-05520
...
27
L-Wash. 3/8" I.D. Heavy Duty MTD-736-0217
...
28
Hex L-Jam Nut 3/8-24 Thd. MTD-712-0116
...
29
Sliding Brkt. Ass'y. MTD-784-5137
...
30
Drive Clutch Brkt. Ass'y. MTD-05500
...
31
Inter. Cot. Pin 5/16" Dia. MTD-714-0104
...
32
Drive Clutch Rod .31" Dia. x 7.38" Lg. MTD-747-0150
...
33
Shld. Bolt MTD-738-0144
...
34
Bell-Wash. .44" I.D. x .88" O.D. MTD-736-0105
...
35
Plate, Drive MTD-917-0302
...
36
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
37
Frame Ass'y. MTD-784-5129
...
38
Hex L-Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
39
Differential Shaft Ass'y. (See special diagram note for disassembly) MTD-05820
...
40
Fl-Wash. .345" I.D. x .75" O.D. MTD-736-0264
...
41
Rim Only-16" MTD-09262
...
42
Cone Nut 3/8-24 Thd. MTD-712-0193
...
43
L-Wash. 3/8" I.D. Heavy Duty MTD-736-0217
...
44
TUBELESS VALVE MTD-934-0255
...
45
Wheel Ass'y. Comp. 16 x 6.5 MTD-734-0748
...
xx
Tire Only 16 x 6.5 MTD-734-0275
...
46
Jam Nut, 3/8-16 MTD-912-3008
...
47
L-Wash. 3/8" I.D. MTD-736-0169
...
48
Shifting Linkage Brkt. Ass'y. MTD-784-5133
...
49
Shld. Bolt .498" Dia. x 2.005" Lg. MTD-738-0129
...
50
Fl-Wash. .344" I.D. x .62' O.D. MTD-736-0264
...
51
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
52
Adjustment Ferrule MTD-711-0628
...
53
Shifting Rod MTD-747-0356
...
54
Drive Plate Mtg. Brkt. Ass'y. MTD-05497
...
55
Drive Plate Spindle MTD-738-0279
...
56
H-Spring Pin Spiral 3/16" Dia. x 1.25' Lg. (See special diagram note for disassembly) MTD-715-0136
...
57
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
58
Hex ut 1/4 -28 Thd. MTD-712-0138
...
59
L-Wash. 1/4" I.D. MTD-936-0329
...
60
Differential Pin MTD-738-0304
...
61
Hex Shaft MTD-738-0280
...
62
Hex Ins. Jam L-Nut 1/4-28 Thd. MTD-712-0896
...
63
#9 Hi-Pro Key 3/32 x 5/8 Dia. MTD-714-0125
...
64
8 Teeth Sprocket MTD-748-0204
...
65
#420 Chain-.50 Pitch x 37 Links MTD-713-0265
...
xx
Master Link for #420 Chain MTD-913-0154
...
66
9 and 32 Teeth Sprocket Hub Ass'y. MTD-913-0194
...
67
Hex Bolt 1/4-20 x .62 Lg. MTD-710-0258
...
68
Spacer .51" I.D. x .69 O.D. MTD-750-0277
...
69
Ball Bearing MTD-741-0133
...
70
Differential Connecting Shaft (See special diagram note for disassembly) MTD-738-0284
...
71
Hex Bolt 1/4-28 x 1.75 Lg.* MTD-710-0559
...
72
28 Teeth Sprocket MTD-713-0198
...
73
Differential Housing MTD-748-0222
...
74
20 Tooth Spur Gear MTD-748-0224
...
75
9 Tooth Spur Gear MTD-748-0223
...
76
Fl-Wash. .62" I.D. x 1.25 O.D. MTD-736-0187
...
77
Differential Housing MTD-748-0222
...
78
Differential Hsg. Support Plate MTD-05484
...
79
Bearing Housing MTD-08253B
...
80
BALL BEARING MTD-941-0919B
...
81
L-Wash. 5/16" I.D. MTD-736-0115
...
82
HEX NUT 5/16-18 MTD-712-3010
...
83
Engine Brkt. Ass'y. MTD-05491
...
84
Inter. Cotter Pin 5/16' Dia. MTD-714-0104
...
85
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
86
Auger Clutch Rod .31' Dia. x 10.62" Lg. MTD-747-0149
...
87
Auger Clutch Brkt. MTD-05518
...
88
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281
...
89
Pivot Axle Brkt. MTD-05523
...
90
Fl-Wash. .345" I.D. x .75" O.D. MTD-736-0264
...
91
Hex L-Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
92
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
93
Sprocket Hub Tubing 1.880" Lg. MTD-750-0275
...
94
L-Wash. 1/4" I.D. MTD-936-0329
...
95
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
96
Hex Nut 1/4-20 Thd. MTD-912-0287
...
...
...
