MTD 262-032 (1987) Self Propelled Mower

Model: 262-032 (1987)

Save
Part Not Listed?Part Not Listed?
product name

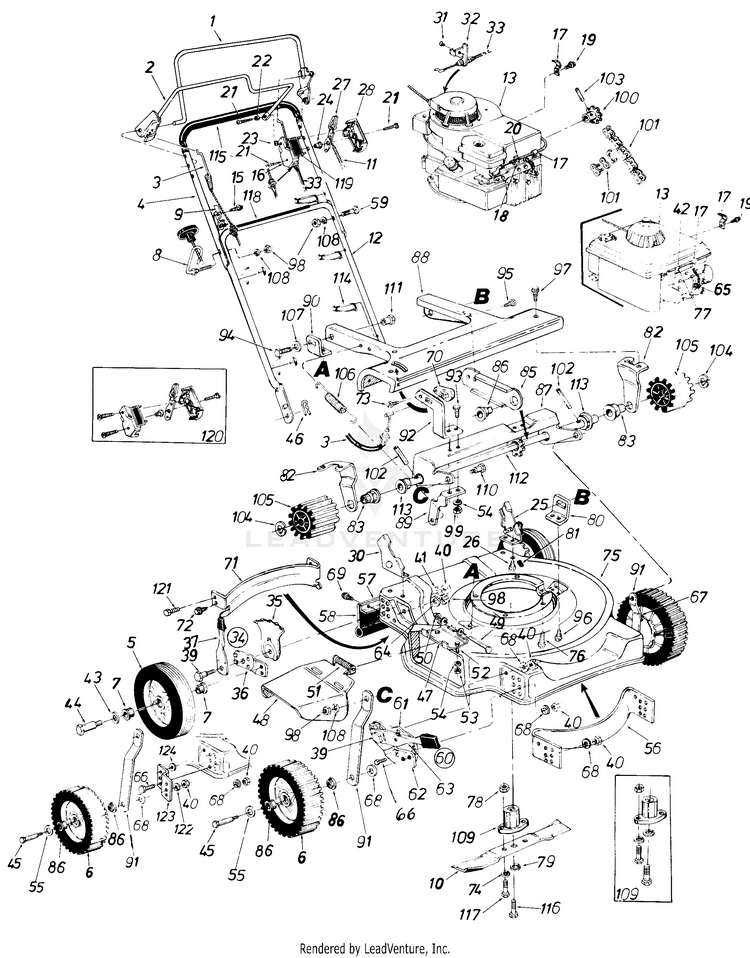

Parts

...
...
1
Control Handle Ass'y. MTD-14321

...
2
Control Handle MTD-16391

...
3
Control Cable w/Spring- 47" Lg. (Green) MTD-746-0600

...
4
Upper Handle MTD-749-0536

...
5
Rear Wheel Ass'y. Comp. MTD-NA

...
xx
Waffle Tread (7 x 1.50) MTD-734-0893

...
xx
Twinline Tread (7 x 1.50) MTD-734-0876

...
xx
Smooth Tread (7 x 1.50) MTD-734-0842

...
xx
Gear Tread (8 x 1.75) MTD-734-0538

...
xx
Waffle Tread (8 x 1.75) MTD-734-0812

...
xx
Twinline Tread (8 x 1.75) MTD-734-0661

...
xx
Smooth Tread (8 x 1.75) MTD-734-0843

...
6
Front Wheel Ass'y. Comp. MTD-734-1026

...
7
Flange Brg. 1/2" I.D. MTD-741-0262

...
8
Rope Guide Bolt MTD-710-0842

...
9
Cable Brkt. MTD-16309A

...
10
22" Blade MTD-942-0125B

...
11
Throttle Wire-58" Lg. MTD-946-0674A

...
12
Lower Handle MTD-749-0928A-0637

...
13
Engine MTD-NA

...
15
Hex AB-Tap Scr. 5/16-18 x 314 MTD-710-0726

...
16
Clutch Panel Half MTD-731-0816

...
17
Casing Clamp MTD-12894

...
18
Hex AB-Tap Scr. #8 x .50 Lg. MTD-710-0227

...
19
Hex B-Tap Scr. #10 x .38" MTD-910-0429

...
20
Casing Clamp MTD-751-0369

...
21
Truss Hd. B-Tap Scr. #12 x 1.5" Lg. MTD-710-0796

...
22
Spacer .23 I.D. x .30 O.D. MTD-750-0649

...
23
Spr. Wash. .206 I.D. x .448 O.D. MTD-736-0370

...
24
Control Disc Pin MTD-731-0524

...
25
Handle Mtg. Brkt. Ass'y. MTD-12935

...
26
Hex B-Tap Scr. 5/16-18 x .50" MTD-710-0603

...
27
Throttle Control Lever MTD-931-0972

...
28
Control Panel Half MTD-731-0817

...
30
Handle Mtg. Brkt. Ass'y. MTD-12936

...
31
Pop Rivet .156 Dia. x .316 Lg. MTD-728-0171

...
32
Cable Bracket MTD-14924

...
33
Clutch Control Cable 45" Lg. MTD-946-0477A

...
34
Height Adj. Ass'y. Comp. (R.H.) (262) MTD-753-06761

...
xx
Height Adj. Ass'y. Comp. (R.H.) (262) (Not Shown) MTD-753-06761

...
35
Height Adjustment Plate (262) MTD-787-01290A

...
36
Pivot Bar (262) MTD-15262B

...
37
Spring Lever (262) MTD-732-0417A

...
39
Shoulder Bolt .50" Dia. (262) MTD-738-0507B

...
40
Hex Nut 3/8-16 Thd. MTD-712-0798

...
41
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356

...
42
Casing Clamp MTD-751-0442

...
43
Bell-Wash. .40 I.D. x .88 O.D. x .06 MTD-736-0105

...
44
Rear Axle Bolt (260) MTD-738-0213

...
xx
Rear Axle Bolt (262) MTD-738-0102

...
45
SCREW:SHLDR:0.498X1.630:3/8-16 (260) MTD-738-0533

...
xx
Front Axle Bolt (262) MTD-738-0144

...
46
Int. Cot. Pin 5/16 Dia. MTD-714-0104

...
47
Adapter Plate MTD-11130

...
48
Chute Deflector Ass'y. MTD-931-1034B

...
49
Pivot Pin MTD-711-0555

...
50
PUSH NUT MTD-726-0106

...
51
Torsion Spring MTD-732-0253

...
52
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289

...
53
Hex Nut 1/4-20 Thd. MTD-912-0287

...
54
L-Wash. 1/4" I.D. MTD-936-0329

...
55
Fl-Wash. .531 I.D. x .93 O.D. x .090 MTD-736-0192

...
56
Front Baffle MTD-16328

...
57
Retaining Strip-14" Lg. MTD-14846

...
58
Rear Flap MTD-731-0794

...
59
Carriage Bolt 5/16-18 x 2 MTD-710-1174

...
60
Front Height Adjustment Ass'y.-R.H. (262) MTD-16106

...
61
Index Plate (262) MTD-14764C

...
62
Pivot Bar (262) (7" wheel assembled in bottom hole, 8" wheel assembled in top hole) MTD-14765

...
xx
BAR-PIVOT (LH) *ON MTD-14766

...
63
Spring Lever (262) MTD-732-0417A

...
64
Bell-Wash. .345 I.D. x .88 O.D. MTD-736-0242

...
65
Spark Plug Insulator MTD-735-0639

...
66
Hex Bolt 3/8-16 x .75 MTD-710-0216

...
67
Front Height Adjustment Ass'y.-L.H. (262) MTD-16107

...
68
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105

...
69
Hex Screw, 1/4-14 x 0.625" MTD-710-0896

...
70
Barrel Cable Hold Down MTD-946-0605

...
71
Rear Baffle MTD-16414

...
72
Truss Mach. Scr. #10 x .50 MTD-710-0351

...
73
Hex B-Tap Scr. #10 x .44" Lg. MTD-710-0919

...
74
Lock Wash. 5/16" I.D. MTD-936-0119

...
75
22" Deck Ass'y MTD-16526

...
76
TT Screw, 3/8-16 x 1.00 MTD-710-0654A

...
77
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651

...
78
Hex Nut 5/16-24 Thd. MTD-912-3057

...
79
L-Wash. 3/8" I.D.-H.D. MTD-736-0217

...
80
Pivot Bracket MTD-14759

...

...
82
Axle Bracket MTD-14757

...
83
Fl-Ball Brg. 1/2" I.D. MTD-941-0180

...
85
Brg. Support MTD-14877

...
86
Fl-Ball Brg. 1/2" I.D. MTD-941-0180

...
87
Drive Engagement Cam MTD-16332

...
88
Front Pinion-Pivot Cover MTD-16528

...
89
Spring Mtg. Brkt. MTD-16530

...
90
Pivot Bracket MTD-16531

...
91
Link-5.30 x .88" MTD-16532

...
92
Engage. Arm-R.H. MTD-16535

...
93
Carr. Bolt 1/4-20 x .62 Lg. MTD-710-0134

...
94
Hex Bolt 3/8-16 x .50 Lg. MTD-710-0168

...
95
Hex B-Tap Scr. 1/4 x .38 Lg. MTD-710-0352

...
96
Hex Screw, 1/4-14 x 0.625" MTD-710-0896

...
97
Hex AB-Tap Scr. 1/4 x .62 Lg. MTD-710-0892

...
98
HEX NUT 5/16-18 MTD-712-3010

...
99
Hex Nut 1/4-20 Thd. MTD-912-0287

...
100
10 Tooth Sprocket Ass'y. MTD-713-0308

...
101
#48 Chain 1/2" Pitch 50 Links MTD-913-0311

...
xx
#48 Master Link (Service Only) MTD-713-0122

...
102
Roll Pin 3/16 x 1.25" MTD-915-0246

...
103
Spring Pin 3/16 Dia. x 1.00 Lg. MTD-715-0247

...
104
E-RING FOR .500 MTD-916-0104

...
105
DRIVE PINION MTD-931-0393

...
106
Spring, extension, .50 Od x 4.35 MTD-732-0428B

...
107
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105

...
108
Lock Wash. 5/16" I.D. MTD-936-0119

...
109
Blade Adapter Kit MTD-753-0348

...
110
Shoulder Bolt MTD-938-0155

...
111
Shoulder Nut.825 x .165 Lg. MTD-938-0529

...
112
Pinion Shaft w/7 Tooth Sprocket MTD-738-0530

...
113
BALL BEARING MTD-941-0484

...
114
Cable Tie MTD-725-0157

...
115

...
116
Hex Bolt 3/8-24 x 2.25" Lg. MTD-710-0331

...
117
Hex Bolt 5/16-24 x 1.0" Lg. (Spec .) MTD-710-0888

...
118
Instruction Label MTD-777-5776

...
119
Control Label MTD-777-5773

...
120
Kit-Control Housing Comp. MTD-753-0430

...
121
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118

...
122
L-Wash. 3/8" I.D. (260) MTD-736-0169

...
123
Wheel Brkt. (260 Only) MTD-14761

...
124
Fl-Wash. (260 Only) MTD-936-0117

...
xx
Hardware Pack MTD-8260-000-7
...
...
...
