product name

MTD 250-534-146 Edger

Model: 250-534-146

Save
 Part Not Listed?Part Not Listed?
product name

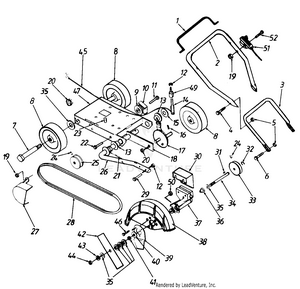

Parts

...
...
1
Lever-Depth Control MTD-706-15632-01-91
...
2
Upper Handle MTD-706-10751-00-90
...
3
Lower Handle MTD-706-18771-02-90
...
4
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
5
Hex Keps L-Nut 5/16-18 Thd. MTD-706-10003-02
...
6
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038
...
7
Wheel Bolt MTD-706-10118-01
...
8
Wheel 6" MTD-706-15808
...
9
Idler Pulley MTD-706-10668
...
10
Bracket-ldler Pulley MTD-706-10693-00-05
...
11
Bolt (Special) MTD-706-14387-15
...
12
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
13
Bushing MTD-706-10646
...
14
Arm-Pivot Rod MTD-706-15856
...
15
Flat Washer, 5/8 MTD-736-0237
...
16
Cotter Pin .75" Lg. MTD-714-0474
...
17
Adjustor Assembly (Depth) MTD-706-10076-01
...
18
Arm-Front Wheel MTD-706-15806-00-05
...
19
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
20
Flange Lock Nut 3/8-16 MTD-912-0431
...
21
Spring-Cutterhead MTD-706-15804
...
22
Hex Bolt 5/16-18 x 1" MTD-710-0376
...
23
TT Screw, 3/8-16 x 1.00 (Special) MTD-710-0654A
...
24
Set Screw 5/16-18 x 3/8" Lg. MTD-710-3006
...
25
Pulley Engine MTD-706-18870-03-05
...
26
Rod Cutterhead MTD-706-15803-00-05
...
27
Belt Guard MTD-706-15807
...
28
V-Belt MTD-954-0935
...
29
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
30
Belt Guard (Cutterhead) MTD-706-18723-00-91
...
31
Transmission Key MTD-914-0112
...
32
Retaining Ring MTD-916-0182
...
33
Pulley Cutterhead MTD-706-18870-02-05
...
34
Shaft - Cutterhead MTD-911-0855
...
35
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
36
Bushing Cutterhead MTD-706-18796
...
37
Housing Cutterhead Shaft MTD-706-18721-01
...
38
Blade Guard MTD-706-14203-00-90
...
39
Edge Guide MTD-706-18729-00-91
...
40
Fl-Wash. MTD-936-0117
...
41
Hex Jam Nut, 3/8-24 MTD-912-3001
...
42
9" Replacement Blade MTD-706-16746-00-90
...
43
Spring L-Wash. 818n I.D. MTD-736-0217
...
44
Hex Nut 3/8-24 Thd. MTD-712-0241
...
45
DEPTH CONTROL CABLE 45.75" MTD-946-0591
...
46
Hex Bolt #10-24 x .75" MTD-710-0941
...
47
Base Edger Frame MTD-706-14405-00-14
...
49
Spacer Pivot Arm MTD-706-13884
...
50
Nylok Nut #10-24 MTD-712-0161
...
51
Throttle Control MTD-746-0800A
...
52
Hex Bolt 1/4-20 x 1.5 MTD-710-0606
...
...
...
