MTD 24A-452J706 (2013) Chipper-Shredder Vac

Model: 24A-452J706 (2013)

Save
 Part Not Listed?Part Not Listed?
product name

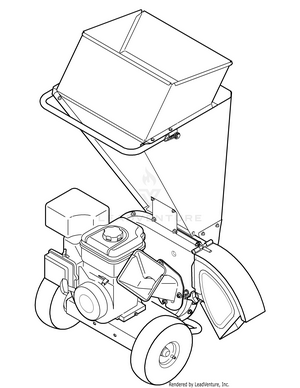

.Quick Reference Chipper

...
...
xx
Spark Plug MTD-759-3336
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-394358S
...
xx
Impeller Assembly MTD-981-04096
...
xx
Chipper Blade MTD-981-0490
...
xx
Shredder Blade MTD-942-0571
...
xx
Flail Blade MTD-719-04308
...
xx
Shredder Screen MTD-781-0457-0637
...
xx
Chipper Shredder Chute - Upper MTD-681-04118-0638
...
xx
Chipper Shredder Chute - Lower MTD-681-04118-0638
...
xx
Hopper Assembly MTD-731-1707A
...
xx
Hopper Collar MTD-731-1710A
...
xx
Wheels MTD-734-1600
...
xx
Push Cap (Wheel) MTD-726-0214
...
xx
Knob MTD-720-0170
...
xx
SHREDDER BAG (23.5 x 36) (WHITE) MTD-664P04022A
...
xx
DISCHARGE CHUTE ASSEMBLY(POWDER BLACK) MTD-681-0094A-0637
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional) MTD-490-850-0018
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional) MTD-490-850-0018
...
xx
Oil Siphon (Optional) MTD-490-850-0008
...
xx
STA-BIL 32 OZ (Optional) MTD-22287
...
xx
STA-BIL Fuel Stabilizer 8 oz. (Optional) MTD-22208

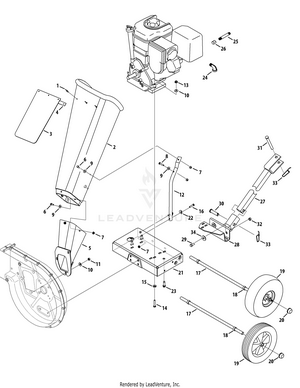

Chipper Shredder General Assembly

...
...
1
Pop Rivet Not used in this application MTD-NA
...
2
Chipper Shredder Chute MTD-681-04118-0638
...
3
Chute Flap Not used in this application MTD-NA
...
4
Chute Flap Strip Not used in this application MTD-NA
...
5
Chipper Chute Assembly Not used in this application MTD-NA
...
6
Hex Cap Screw 1/4 -20 x.620 Not used in this application MTD-NA
...
7
Hex Lock Nut 1/4-20 Not used in this application MTD-NA
...
8
Hex Cap Screw 1/4-20 x 1.25 Not used in this application MTD-NA
...
9
Flat Washer.28 ID x.74 OD Not used in this application MTD-NA
...
10
Bell Washer.340 ID x.872 OD MTD-736-0242
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Support Brace Not used in this application MTD-NA
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
15
Spec. L-Wash. 5/16" I.D. MTD-736-0170
...
16
Hex Cap Screw, 1/4-20 x 1.250 Not used in this application MTD-NA
...
17
Axle Assembly MTD-738-0814
...
18
Spacer MTD-950-0786
...
19
Wheel Comp., 10.0 x 2.5 Plastic MTD-734-1600
...
20
Push Cap MTD-726-0214
...
21
Frame MTD-681-0184C-0638
...
22
Washer,.320 ID x.93 OD Not used in this application MTD-NA
...
23
Screw, 3/8-16 x 1.250 MTD-710-0502A
...
24
Elbow Fitting MTD-937-0195
...
25
Oil Drain Pipe Not used in this application MTD-NA
...
26
Oil Drain End Cap Not used in this application MTD-NA
...
27
TOW BAR (POWDER BLACK) If Equipped MTD-981-0133B-0637
...
28
TOW BAR BASE (POWDER BLACK) If Equipped MTD-681-0134B-0637
...
29
Hex Cap Screw, 3/8-16 x.88 If Equipped MTD-710-3001
...
30
Clevis Pin,.625 x 2.4 If Equipped MTD-711-0299
...
31
Clevis Pin,.50 x 4.62 If Equipped MTD-911-0835
...
32
Flange Lock Nut, 3/8-16 If Equipped MTD-712-04065
...
33
Spring Pin If Equipped MTD-732-0194
...
34
Fl-Wash. 3/8 I.D. x 1.25 O.D. x .090 If Equipped MTD-736-0133
...
xx
SHREDDER BAG (23.5 x 36) (WHITE) (not shown) MTD-664P04022A
...
xx
Safety Glasses (not shown) MTD-723-0400

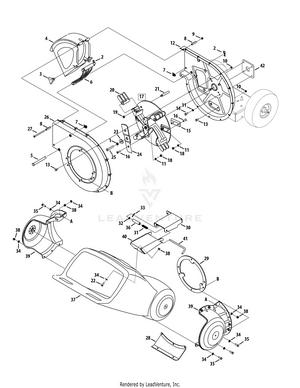

Chipper Shredder Hopper & Impeller

...
...
1
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
2
Inter. Cotter Pin MTD-714-0149B
...
3
Wing Knob 5/16-18 MTD-720-0170
...
4
DISCHARGE CHUTE ASSEMBLY(POWDER BLACK) MTD-681-0094A-0637
...
5
Clevis Pin MTD-911-0835
...
6
Shredder Screen MTD-781-0457-0637
...
7
U-Nut 5/16-18 Thd. MTD-726-0211
...
8
Spacer MTD-950-0793
...
9
Hex Lock Nut, 1/4-20 MTD-912-3027
...
10
HEX FLANGE NUT MTD-712-3004A
...
11
Lock Washer 5/16 MTD-936-0119
...
12
INNER FLAIL HOUSING MTD-681-05063-0638
...
13
Hex Cap Screw 5/16-18 x .625 MTD-710-3025
...
14
Hex Cap Screw 5/16-24 x 1.00 MTD-710-0888
...
15
Chipper Blade (standard) MTD-981-0490
...
16
Hex Cap Screw 5/16-24 x 1.0 MTD-710-1054
...
17
Impeller Assembly (standard) MTD-981-04096
...
18
Hex L-Nut 5/16-24 Thd. MTD-712-0411
...
19
Nut, Jam Lock, 3/8-16 MTD-712-0266A
...
20
Flail Blade MTD-719-04308
...
21
Shoulder Pin, .5 x 2.625 MTD-738-04286A
...
22
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
23
Flat Washer 3/8 x 1.25 MTD-736-0247
...
24
Shredder Blade MTD-942-0571
...
25
Hex Cap Screw 3/8-24 x 2.25 MTD-710-1254
...
26
Outer Impeller Housing Assembly MTD-681-0004A-0637
...
27
Hex Cap Screw 1/4-20 x 3.75 MTD-710-0825
...
28
Front Support Bracket MTD-781-0515-0638
...
29
Shredder Plate MTD-781-0574-0638
...
30
Rear Hopper Bracket Assembly MTD-681-0104-0638
...
31
Compression Spring 1.75 MTD-932-0306A
...
32
Flat Washer MTD-936-0117
...
33
Hairpin Clip MTD-714-0104
...
34
Flat Washer .330 ID x. 630 OD MTD-936-0264
...
35
Hex Cap Screw 5/16-18 x 1.0 MTD-710-0376
...
36
Spacer,.375 ID x 2.50 LG MTD-748-0453
...
37
Hopper Assembly MTD-731-1707A
...
38
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
39
Hopper Collar MTD-731-1710A
...
40
Front Hopper Bracket Assembly MTD-681-0123-0638
...
41
Lock Rod MTD-711-1128
...
42
Engine Plate MTD-781-04292-0637

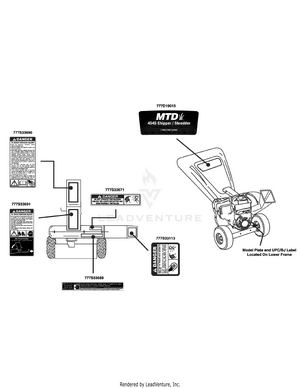

Label Map CS MTD

...
...
777S33690
Label-Dngr/Avoid Inj MTD-777S33690
...
777S33691
Label-Dngr/Avoid/Ins MTD-777S33691
...
777S33689
Label-Flail Housing Wrng MTD-777S33689
...
777S33113
Label-Chipper Shre MTD-777S33113
...
777S33671
Label-Flail Housing Dang MTD-777S33671
...
777D19015
Label-Hoppper MTD-777D19015
...
...
...
