MTD 249-660-000 (1989) Chipper-Shredder Vac

Model: 249-660-000 (1989)

Save
 Part Not Listed?Part Not Listed?
product name

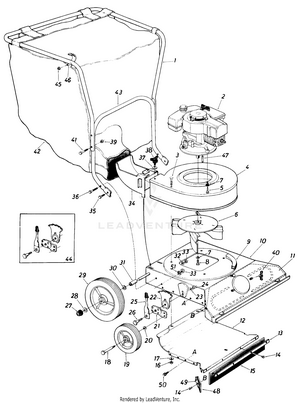

Parts

...
...
1
Upper Handle (Painted) MTD-749-0664
...
xx
Upper Handle (Chrome) MTD-749-0480
...
2
Engine MTD-NA
...
3
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
4
Blower Housing Ass'y. MTD-15784
...
5
Hex Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
6
Impeller Ass'y. MTD-15786A
...
7
L.-Wash. 3/8" I.D.* MTD-736-0217
...
8
Hex Bolt 3/8-24 x 1.0" Lg. w/ Patch MTD-710-0591
...
9
P.V.C. Foam Strlp (4-Pcs. 12" Lg. ) MTD-722-0137
...
10
Vacuum Deck Ass'y. MTD-15780
...
11
Front Baffle Ass'y. MTD-15796
...
12
Lower Baffle Ass'y. MTD-15788
...
13
Wiper Retaining Strip MTD-15790
...
14
Pop Rivet .188 Dia. MTD-928-0123
...
15
Nozzle Wiper Rear MTD-735-0222
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Bell.-Wash. .34" I.D. x.87" O.D. MTD-736-0242
...
18
Shld. Bolt 1/2" Dia. x 1.45" Lg. (3/8-16) MTD-738-0102
...
19
Wheel Ass'y. Comp. 8 x 1.75" - Front MTD-734-1139
...
20
Bell.-Wash. .39" I.D. x 1.12"O.D. MTD-736-0331
...
21
Pivot Bar MTD-15262B
...
22
Height Adjustment Plate MTD-787-01290A
...
23
Bell.-Wash. .39" I.D. x 1.12"O.D. MTD-736-0331
...
24
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
25
Front Spring Lever MTD-94832
...
26
Shoulder Bolt .500" x 7/16" Lg. (3/8-16) MTD-738-0507B
...
27
1 Push Cap .50" Rod (Black) MTD-726-0128
...
28
FLAT WASHER .510 x .995 MTD-736-0272
...
29
Wheel Ass'y. Comp. 10 x 1.75" - Rear MTD-734-1140
...
30
FLAT WASHER .510 x .995 MTD-736-0272
...
31
Wheel Spacer 1/2" I.D. x 15/16" Lg. MTD-750-0588
...
32
Bell.-Wash. .39" I.D. x 1.12" O.D. MTD-736-0331
...
33
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
34
Air Duct Ass'y. MTD-15779
...
35
HEX SCREW 3/8-16 x .625 GR5 MTD-710-0201
...
36
Hex Bolt 3/8-16 x 1.50" Lg.* MTD-710-0344
...
37
Bell.-Wash. .34" I.D. x .87" O.D. MTD-736-0242
...
38
Thumb Scr. 5/16-18 x .75" Lg. MTD-720-0170
...
39
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
40
Wing Nut 1/4-20 Thd. MTD-912-0113
...
41
Hex Bolt 1/4-20 x 1.75" Lg.* MTD-710-0136
...
42
Vacuum Bag (6.6 Bushel) MTD-764-0208A
...
43
Lower Handle (Painted) MTD-749-0592
...
xx
Lower Handle (Chrome) MTD-749-0665
...
44
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Not Shown) MTD-753-06761
...
45
Push Speed Nut .25" Dia. MTD-1539-019
...
46
Stud Pin .250" Dia. x 1.75" MTD-911-0737
...
47
KEY, SPINDLE MTD-914-0105
...
48
Nozzle Wiper Side MTD-735-0221
...
49
Wiper Retaining Strip MTD-15789
...
50
HEX SCREW #10-24 x 0.500 MTD-710-0302
...
51
L-Wash. 3/8" I.D.* MTD-736-0169
...
...
...
