MTD 247-462B000 (1997) Chipper-Shredder Vac

Model: 247-462B000 (1997)

Save
 Part Not Listed?Part Not Listed?
product name

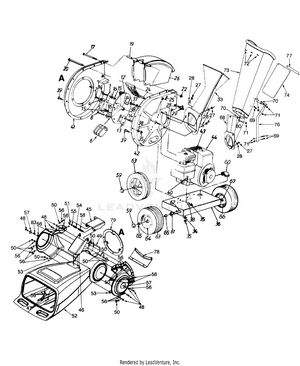

General Assembly

...
...
1
Blade MTD-942-0571
...
2
Hex Patch Bolt 3/8-24 x 2.25" (Gr. 8) MTD-710-1254
...
4
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
5
Beleville Washer MTD-936-0427
...
6
Flail Blade MTD-719-0329
...
8
Clevis Pin .496" Dia. MTD-911-0833B
...
?10
Spring Roll Pin 1.125" Lg. MTD-915-0162
...
12
Impeller Assembly (standard) (Incl. Ref. 1, 6, 8, 10, 12, 13, 14) MTD-981-04096
...
13
CHIPPER BLADE MTD-981-0490
...
14
Flat Hd. Scr. 5/16-24 x .75: Lg. MTD-710-1054
...
15
Hex Top L-Nut 5/16-24 (Gr. 5) MTD-712-0411
...
16
Lock Wash. 5/16" I.D. MTD-936-0119
...
17
Hex Bolt 1/4-20 x 3.75" Lg. MTD-710-0825
...
19
SPACER-.260 x .3 MTD-950-0793
...
20
Clevis Pin .50 Dia x 4.82 Lg. MTD-911-0835
...
22
Hex Ctr. L-Nut 1/4-20 Thd. MTD-712-0291
...
24
SHREDDER SCREEN MTD-781-0457-0637
...
25
Internal Cotter Pin 3/8" Dia. MTD-714-0149B
...
26
DISCHARGE CHUTE ASSEMBLY New Part MTD-681-0094A
...
27
HEX NUT 5/16-18 MTD-712-3010
...
28
Bell-Wash. .345 I.D. x .88" MTD-736-0242
...
29
Hand Knob MTD-720-0170
...
33
Chipper Chute Ass'y. For models 462B/463C MTD-681-0095
...
34
Spec. L-Wash. 5/16" I.D. MTD-736-0170
...
35
HEX FLANGE NUT MTD-712-3004A
...
36
FRAME ASSEMBLY New Part MTD-681-0184C
...
37
Hex Bolt 5/16-24 .75" Lg. MTD-710-0157
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
40
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
41
Flail Housing Ass'y.--L.H. New Part MTD-681-0004A
...
42
Flail Housing Ass'y.--R.H. New Part MTD-681-0117
...
43
Spark Plug Boot (Optional) MTD-735-0639
...
44
Engine MTD-NA
...
45
Bracket Ass'y.--R.R. New Part MTD-681-0104
...
46
Bracket Ass'y.--Frt. New Part MTD-681-0123
...
47
Hex Bolt 5/16-18 x .75" Lg. (Gr. 2) MTD-710-0118
...
48
Hex Bolt 5/16-18 x 1.0" Lg. (Gr. 5) MTD-710-0376
...
49
Lock Rod New Part MTD-711-1128
...
50
Hex L-Nut 5/16-18 MTD-712-0429
...
51
Internal Cotter Pin .072 x 1.12 Lg. MTD-714-0104
...
52
SHREDDER HOPPER New Part MTD-731-1707A
...
53
CHIPPER SHREDDER HOPPER COLLAR New Part MTD-731-1710A
...
54
Compression Spring MTD-932-0306A
...
55
Fl-Wash. MTD-936-0117
...
56
Flat Wash. 330 x .630 x .06 MTD-736-0264
...
57
Flat Wash. .320 I.D. x 1.25 O.D. MTD-736-0362
...
58
Spacer, .382 x .50 x 1.12 MTD-950-0785
...
59
Push Cap 5/8" Dia. Rod MTD-726-0214
...
60
Drain Elbow (645C) For models 462B/463C MTD-937-0195
...
61
Spacer 64" I.D. x .38" Lg. MTD-950-0786
...
62
Shredder Axle For models 462B/463C MTD-738-0814
...
xx
Shredder Axle For model 465A MTD-738-0813
...
63
Wheel Ass'y. Comp. For models 462B/463C MTD-734-1600
...
xx
Wheel Ass'y Comp For model 465A MTD-934-04009
...
64
Rim Only For model 465A MTD-734-1455A
...
65
Flange Bearing .632 ID For model 465A MTD-741-0487C
...
66
TUBELESS VALVE For model 465A MTD-934-0255
...
67
Grease Fitting For model 465A MTD-737-0211A
...
68
Chipper Chute Assembly For model 465A MTD-681-0068A
...
69
Hex Bolt 1/4-20 x 1.25 For model 465A MTD-710-0106
...
70
Hex Bolt 1/4-20 x 0625 For model 465A MTD-710-0258
...
71
LOCK NUT 1/4 For model 465A MTD-912-3027
...
72
Pop Rivet For model 465A MTD-728-0175
...
73
CHIPPER SHREDDER KIT New Part; For model 465A MTD-753-05094
...
74
CHUTE FLAP For model 465A MTD-735-0249A
...
75
Flat Wash. .28 I.D. For model 465A MTD-736-0173
...
76
Chute Support New Part; For model 465A MTD-749-1004
...
77
Flat Strip For model 465A MTD-781-0633
...
78
Front Support Bracket MTD-781-0515
...
79
Back Up Plate MTD-781-0574
...
80
UNKNOWN MTD-NA
...
83
UNKNOWN MTD-NA
...
xx
SHREDDER BAG (23.5 x 36) (WHITE) (Not Shown) MTD-664P04022A
...
xx
Safety Glasses (Not Shown) MTD-723-0400

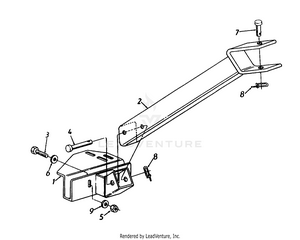

Tow Hitch Kit

...
...
1
Tow Bar Base MTD-681-0042
...
2
TOW BAR TONGUE (POWDER BLACK) MTD-681-0043-0637
...
3
Hex Bolt 3/8-16 x .88" Lg. (Gr. 5) MTD-710-3001
...
4
Clevis Pin 2.4" Lg. MTD-711-0299
...
5
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798
...
6
Fl-Wash. .406" I.D. x 1.25" O.D. x .10" MTD-736-0133
...
7
Clevis Pin .50 Dia x 4.82 Lg. MTD-911-0835
...
8
Spring Pin MTD-732-0194
...
9
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
...
...
