MTD 24677-7 (1987) Chipper-Shredder Vac

Model: 24677-7 (1987)

Save
Part Not Listed?Part Not Listed?
product name

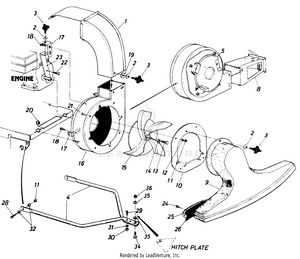

Blower Assembly

...
...
1
Air Duct Assembly MTD-14532

...
2
Belleville Wash. 34" I.D. x .87" O.D. MTD-736-0242

...
3
3-Arm Thumb Scr. 5/16-18 x .75" Lg. MTD-720-0170

...
4
Tow Bar Half MTD-749-0501

...
5
Impeller Guard MTD-731-0608

...
8
Directional Discharge Assy. MTD-14479

...
9
Nozzle Ass'y. MTD-14562

...
10
Nozzle Plate Assembly MTD-14563A

...
11
HEX NUT 5/16-18 MTD-712-3010

...
12
Lock Wash. 5/16" I.D. MTD-936-0119

...
13
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191

...
14
L.-Wash. 3/8" I.D. H.D. MTD-736-0217

...
15
Air Vane Plate Ass y. (24677) MTD-14536

...
xx
Air Vane Plate Ass'y. w/pulley (24687) MTD-14557

...
16
Blower Housing Assembly MTD-14496B

...
17
Right Angle Bracket MTD-14541

...
18
Hex Self-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0600

...
19
Fl.-Wash. 5/16" I.D. MTD-736-0231

...
20
Hex Shoulder Nut .50 I.D. MTD-911-0758

...
21
Carriage Bolt 5/16-18 x.62 MTD-710-0260A

...
22
Hex Locking Bolt 5/16-24 x .75" Lg. MTD-710-0627

...
23
Housing - Engine Brace Ass'y. MTD-14539-0637

...
24

...
25
Wiper Retaining Strip MTD-14569

...
26
Nozzle Wiper MTD-735-0214

...
28
Hex Bolt 5/16-18 x 1.00" Lg.* Optional parts MTD-710-0602

...
29
Truss Mach. Scr. 1/4-20 x.75" Lg. Optional parts MTD-710-0924

...
30
Hex Nut 1/4-20 Thd. Optional parts MTD-912-0287

...
31
L-Wash. 1/4" I.D. Optional parts MTD-936-0329

...
32
Shoulder Spacer Optional parts MTD-748-0234

...
34
SHOULDER SCREW .498 DIA x .340 Optional parts MTD-738-0143

...
35
Bell-Wash. .400" I.D. x 1.13" O.D. Optional parts MTD-936-0219

...
36
Hex Jam L-Nut 3/8-16 Thd. Optional parts MTD-712-0181

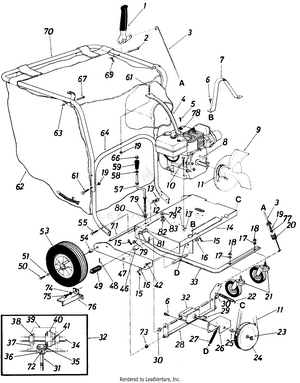

Handle & Frame Assembly

...
...
1
Clutch Grip Ass'y. Parts for self-propelled units. (Models 24687) only MTD-05778

...
2
Clevis Pin .375" Dia. x 1.88" Parts for self-propelled units. (Models 24687) only MTD-711-0679A

...
3
Clutch Rod 32" Lg. Parts for self-propelled units. (Models 24687) only MTD-747-0154

...
4
Handle Brace MTD-749-0482

...
5
Part of Engine MTD-NA

...
6
Hex L-Wash. Hd. AB Tap Scr. 1 /4" x .62 " Lg. Parts for self-propelled units. (Models 24687) only MTD-710-0892

...
7
Belt Guard Parts for self-propelled units. (Models 24687) only MTD-14558

...
8
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114

...
9
Air Vane Plate Ass'y. (677 ) MTD-14536488

...
xx
Air Vane Plate Ass'y. w/pulley MTD-14557488

...
10
SCREW 5/16-18 x 1.5 LG MTD-710-0805A

...
11
V-Belt Parts for self-propelled units. (Models 24687) only MTD-954-0219

...
12
Lock Wash. 5/16" I.D. MTD-936-0119

...
13
HEX NUT 5/16-18 MTD-712-3010

...
14
Engine Mounting Frame Ass'y. MTD-16454

...
15
CotterPin 1/8" Dia. x 1.0" Lg. MTD-714-0115

...
16
Fl.-Wash. .63" I.D. x 1.25" O.D. MTD-736-0187

...
17
L.-Wash. 1/2" I.D. MTD-736-0921

...
18

...
19
Hex L-Nut 1/4-20 Thd MTD-912-0107

...
20
Extension Spring .78" O.D. x .75" Lg. Parts for self-propelled units. (Models 24687) only MTD-732-0411

...
21
Swivel Caster Wheel 5" Dia. x 1.25" MTD-734-1036

...
22
Extension Spring .38" O.D. x 3.18" Lg. Parts for self-propelled units. (Models 24687) only MTD-932-0409

...
23
E-RING FOR .500 Parts for self-propelled units. (Models 24687) only MTD-916-0104

...
24
"V"-Pulley 5/8" x 6.50" O.D. Parts for self-propelled units. (Models 24687) only MTD-756-0367

...
25
Flange Bearing .502" I.D. Parts for self-propelled units. (Models 24687) only MTD-748-0142

...
26
Gear Box Mounting Bracket Parts for self-propelled units. (Models 24687) only MTD-14570

...
27
Extension Spring .75" O.D. x 3.28" Lg. Parts for self-propelled units. (Models 24687) only MTD-932-0376

...
28
Clutch Bracket Ass'y. Parts for self-propelled units. (Models 24687) only MTD-14565

...
29
#2 Woodruff Key 3/32" Dia. x .8 1 " Lg. Parts for self-propelled units. (Models 24687) only MTD-714-0229

...
30
Hex Flange Bearing Bronze .625" I.D. Parts for self-propelled units. (Models 24687) only MTD-948-0227A

...
31
SHAFT-PINION Parts for self-propelled units. (Models 24687) only MTD-738-0516

...
32
Gear Box Ass'y. Comp. Parts for self-propelled units. (Models 24687) only MTD-717-0493

...
33
Caster Arm Ass'y. MTD-16273

...
34
Drive Shaft .624" Dia. x 22.75" Lg. Parts for self-propelled units. (Models 24687) only MTD-08348

...
35
Bevel Gear .50" I.D. x 14 Teeth MTD-748-0136

...
36
Flange Bearing, .503 x .75 Parts for self-propelled units. (Models 24687) only MTD-948-0108

...
37
Gear Box Parts for self-propelled units. (Models 24687) only MTD-08189

...
38
Flange Bearing .630" I.D. Parts for self-propelled units. (Models 24687) only MTD-748-0110

...
39
Gear Box Cover Parts for self-propelled units. (Models 24687) only MTD-08187

...
40
Bevel Gear .62" I.D. x 28 Teeth Parts for self-propelled units. (Models 24687) only MTD-748-0135

...
41
Roll Pin 3/16 x 1.25" Parts for self-propelled units. (Models 24687) only MTD-915-0246

...
42
Hex Wash. Hd. "AB" Tap Scr. 5/16" x .75" Lg. MTD-710-0726

...
46
Spacer .635" I.D. x .89" O.D. x .57" Parts for self-propelled units. (Models 24687) only MTD-948-0201

...
47
Side Plate MTD-14530488

...
48
Spring Pin Spiral 3/16" Dia. x 1.0" Lg. Parts for self-propelled units. (Models 24687) only MTD-715-0247

...
49
Drive Pinion Parts for self-propelled units. (Models 24687) only MTD-748-0288

...
50
Hex Locking Bolt 5/16-24 x.62" Lg. MTD-710-0170

...
51
Fl.-Wash. .34" I.D. x 87" O.D. MTD-736-0159

...
53
Wheel Ass'y.-Comp. 12" x 3" (Incl. Ball Bearings) MTD-734-1035

...
xx
Wheel Ass'y. Comp. 10.5" x 4" (677) (677 Only) MTD-634-0147

...
xx
Flange Bearing .632 ID (677 Only) MTD-741-0487C

...
54
Spacer .63" I.D. x 1.00" O.D. x.94" Lg. (687) MTD-750-0194

...
xx
Spacer .63" I.D. x .878" O.D. x.79" Lg. (677) MTD-748-0192

...
55
Hex Bolt5/16-18 x .75" Lg. MTD-710-0118

...
57
Height Adjustment Crank MTD-747-0665

...
58
Fl-Wash. MTD-936-0117

...
59
Knob - Black MTD-920-0171

...
61
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136

...
62
Vacuum Bag-Felt MTD-764-0162

...
63
Push Speed Nut .25" Dia. Stud MTD-1539-019

...
64
Lower Handle (Painted) I MTD-749-0785

...
66
Push Nut 3/8" Dia. MTD-726-0100

...
67
Stud Pin .250" Dia. x 1.75" MTD-911-0737

...
69
Internal Cotter Pin 3/8" Dia. MTD-714-0145

...
70
Upper Handle MTD-749-0480

...
71
Rear Axle .624" Dia. x 24.37" MTD-738-0185

...
72
Spring Roll Pin 1.12" Lg. Parts for self-propelled units. (Models 24687) only MTD-915-0249

...
73
Spacer 82" I.D. x 1.0" O.D. x .305 Lg Parts for self-propelled units. (Models 24687) only MTD-950-0142

...
74
Spring Wash. .265 I.D. x .562 O.D. Parts for self-propelled units. (Models 24687) only MTD-936-0175

...
75
Hex Self Tap Scr. 1/4" x 3/8" Lg. Parts for self-propelled units. (Models 24687) only MTD-710-0352

...
76
R.H. Pinion Guard Parts for self-propelled units. (Models 24687) only MTD-14556

...
xx
L.H. Pinion Guard (Not Shown) MTD-14555

...
77
Hex Jam Nut 1/4-20 Thd. Parts for self-propelled units. (Models 24687) only MTD-912-0298

...
78
Belleville Washer MTD-736-0242

...
79
Fl.-Wash..35" I.D. x.87"O.D. MTD-736-0300

...
80
Spacer .38" I.D. x .50" O.D. x .18" Lg. MTD-950-0528

...
81
Ferrule3/8-16x .38" Dia. MTD-21989

...
82
Hex Nut 3/8-16 Thd. MTD-712-0798

...
83
L.-Wash. 3/8" I.D. MTD-736-0169
...
...
...
