MTD 24650C (1986) Chipper-Shredder Vac

Model: 24650C (1986)

Save
Part Not Listed?Part Not Listed?
product name

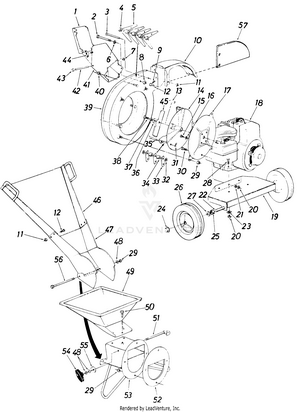

Shredder

...
...
1
Door Chip It MTD-11476

...
2
Hex Bolt 1/2-20 x 4.50" Lg. MTD-710-0465

...
3
Clevis Pin MTD-711-0580

...
4
Flail Spacer 7/32" Lg. MTD-711-0579

...
5
Cutting Finger MTD-11455

...
6
L.-Wash. 1/2" Scr. MTD-736-0921

...
7
Palnut3/16" Dia. MTD-726-0111


...
9
Cotter Pin 3/32" Dia. x 3/4" Lg. MTD-714-0507

...
10
Chute Deflector MTD-11465

...
11
Hex L-Nut 1/4-20 Thd MTD-912-0107

...
12
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289

...
13
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114

...
14
Impeller Assembly MTD-13430

...
15
Hex Bolt 5/16-24 x 3/4" Lg. MTD-710-0157

...
16
Lock Wash. 5/16" I.D. MTD-936-0119

...
17
Hopper to Engine Mtg. Plate MTD-14573

...
18
Engine MTD-NA

...
19
Engine Mounting Plate MTD-11464

...
20
Hex Nut 5/16-24 Thd. MTD-912-3057

...
21
Lock Wash. 5/16" I.D. MTD-936-0119

...
22

...
23
Special L.-Wash. 5/16" I.D. MTD-736-0170

...
24
Push Cap MTD-726-0221

...
25

...
26
Wheel Ass'y.-Comp. MTD-734-1056

...
27
FLAT WASHER .531 ID x 1.25 OD x .036 MTD-736-0100

...
28
Hex Bolt 5/16-24 x 1.50" Lg. MTD-710-0624

...
29
Elastic Stopnut 5/16-18 Thd. MTD-712-0429

...
30
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237

...
31
Cotter Pin 1/8" Dia. x 1.00" Lg.* (Special) MTD-714-0144

...
32
Fl-Wash. .531" I.D. x 93 O.D. x .09 MTD-736-0192

...
33

...
34
Flail Spacer MTD-911-0564

...
35
Clevis Pin .50" Dia. x 3.0" Lg. MTD-711-0578

...
36
Fl.-Wash. .406" I.D. x 1.25" O.D. Hdn. MTD-736-0247

...
37
L.-Wash. 3/8" Scr. H.D. MTD-736-0217

...
38
HexBolt3/8-24x 2.00" Lg. H.T. MTD-710-0151

...
39
Flail Housing Ass'y.-Comp. MTD-14575

...
40
Hex L-Nut 1/4-20 Thd MTD-912-0107

...
41
Upper Guide Extension Ass'y. MTD-11477

...
42
H inge Pin MTD-11478

...
43
Palnut3/16" Dia. MTD-726-0111

...
44
Wing Nut Elastic 1/4-20 Thd MTD-712-0109

...

...
46
Guide Extension Assembly MTD-11460

...
47
Guide Extension MTD-11472

...
48
Fl.-Wash. 5/16" Scr. MTD-736-0264

...
49
Hopper Assembly MTD-11481

...
50
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A

...
51
Clamp Rod Assembly MTD-11479

...
52
Back-Up Plate MTD-11454

...
53
Inlet Guide Assembly MTD-11467

...
54
Star Knob MTD-720-04072A

...
55
Stop Washer MTD-11480

...
56
Hex Bolt 5/16-18x 8.38" Lg. MTD-710-0542

...
57
Deflector Side Plate MTD-15798

...
xx
SHREDDER BAG (23.5 x 36) (WHITE) (Not Shown) MTD-664P04022A
...
...
...
