product name

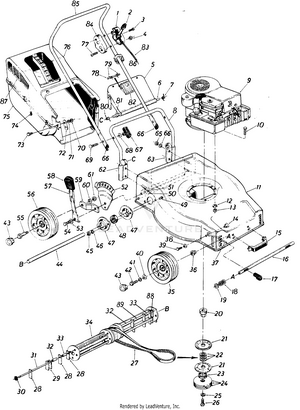

MTD 24630S (1985) Thatcher

Model: 24630S (1985)

Save
 Part Not Listed?Part Not Listed?
product name

Thatcher

...
...
1
Throttle Control Housing MTD-K329-932
...
2
Throttle Control Lever MTD-K312-867
...
3
Sheet Metal Screw M5 x 30 MTD-K701-010
...
4
Hex Nut M5 MTD-K700-106
...
5
Deflector-Chute MTD-K321-889
...
6
Pivot Shaft-Chute Deflector MTD-K325-832
...
7
Torsion Spring-L.H. MTD-K325-816
...
8
Lower Handle MTD-K328-400
...
9
Engine MTD-NA
...
10
Hex Bolt M8 x 30 MTD-K701-171
...
11
Deck MTD-K321-979
...
12
Lock Washer B8 MTD-K700-128
...
13
Hex Nut M8 MTD-K700-108
...
14
Spacer MTD-K313-910
...
15
Deck Handle-Front MTD-K313-357
...
16
Front Axle MTD-K319-661
...
17
Knob-for Front Height Adj. MTD-K313-751
...
18
Compression Spring MTD-K313-976
...
19
Spring Spacer MTD-K314-385
...
20
Pulley Hub MTD-K321-972
...
21
Pulley "V" Belt MTD-K321-966
...
22
Spacers (Washers) MTD-K321-971
...
23
Spacer MTD-K321-968
...
24
Fly Wheel MTD-K321-886
...
25
Lock Washer MTD-NA
...
26
Hex Bolt 3/8" x 45 UNF MTD-K321-885
...
27
"V"-Belt MTD-K321-829
...
28
Thatcher Blade MTD-K321-876
...
29
Lift Blade MTD-K321-898
...
30
Snap Ring 8M MTD-K700-897
...
31
Thatcher Blade Shaft MTD-K321-894
...
32
Spacer MTD-K321-895
...
33
Spacer MTD-K321-897
...
34
Thatcher Rotor MTD-K321-964
...
35
Front Wheel MTD-K316-831
...
36
Spring Spacer MTD-K314-385
...
37
Front Height Adjustment Lever MTD-K313-916
...
38
Lock Washer B6 MTD-K700-127
...
39
Hex Bolt M6 x 12 MTD-K700-483
...
40
Flat Wash 0 15 MTD-K700-998
...
41
Belleville Washer M12 MTD-K701-223
...
42
Hex Bolt M12 x 16 MTD-K700-826
...
43
Hub Cap MTD-K313-367
...
44
Thatcher Blade Shaft MTD-K321-894
...
45
Hex Nut M6 MTD-K700-107
...
46
Lock Washer M6 MTD-K700-127
...
47
Flange Bearing w/Housing MTD-K322-953
...
48
Part of Ref. No. 47 MTD-NA
...
49
Mach. Screw M6 x 16 MTD-K700-799
...
50
Lock V\lasher B 10 MTD-K700-129
...
51
Hex Nut M10 MTD-K700-109
...
52
Index Plate MTD-K312-398
...
53
Belleville Washer MTD-K700-735
...
54
Hex Bolt M10 x 20 MTD-K700-552
...
55
Rear Wheel Axle Bolt MTD-K300-189
...
56
Rear Wheel MTD-K316-831
...
57
Spring Lever w/Knob MTD-K312-399
...
58
Part of Ref. No. 57 MTD-NA
...
59
Pivot Bracket MTD-K302-745
...
60
Lock Washer B10 MTD-K700-129
...
61
Hex Nut M10 MTD-K700-208
...
62
Handle Bracket-R.H. MTD-K325-731
...
63
Handle Bracket-L.H. MTD-K325-732
...
xx
Flat Washer 8.4 MTD-K700-138
...
65
Hex Nut M8 MTD-K700-121
...
66
Handle Cap MTD-K305-786
...
67
Wing Nut M6 MTD-K316-668
...
68
Lock Washer 6.4 MTD-K700-148
...
69
Mach. Screw M6 x 50 MTD-K312-257
...
70
Hex Nut MTD-NA
...
71
Lock Washer MTD-NA
...
72
Reinforcement Plate MTD-NA
...
73
Mach. Screw B3.92 x 32 MTD-K701-661
...
74
Mach. Screw Self Tap B3.9 x 9.5 MTD-K701-496
...
75
Grass Bag-Lower Half MTD-K321-881
...
76
Grass Bag-Upper Half MTD-K330-629
...
77
Screw B2.9 x 9.5 MTD-K700-398
...
78
Pivot Pin MTD-K325-829
...
79
Torsion Spring for Door Snap MTD-K325-828
...
80
Torsion Spring-R.H. MTD-K325-817
...
81
Spring Spacer MTD-K325-813
...
82
Door Snap MTD-K325-812
...
83
Throttle Control Wire MTD-K333-802
...
84
Throttle Control Housing MTD-K323-314
...
85
Upper Housing MTD-K328-247
...
86
Cable Tie MTD-K313-342
...
87
Screen MTD-K325-725
...
88
Spacer" Lg. MTD-K321-896
...
89
Spacer 1 3/4" Lg. MTD-K321-873
...
...
...
