MTD 245-689-000 (1995) Chipper-Shredder Vac

Model: 245-689-000 (1995)

Save
 Part Not Listed?Part Not Listed?
product name

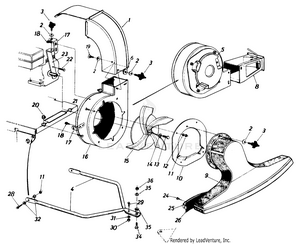

Blower Housing & Nozzle Assembly

...
...
1
Air Duct Assembly MTD-14532
...
2
Belleville Wash. .34" I.D. x .87" O.D. MTD-736-0242
...
3
Hand Knob MTD-720-0170
...
4
Tow Bar Half Optional Part MTD-749-0501
...
5
Impeller Guard MTD-731-0608
...
6
Fl-Wash. .344" I.D. x 1.125" O.D. MTD-736-0231
...
8
Directional Discharge Ass'y. MTD-14479
...
9
Nozzle Ass'y. (Black) MTD-14562B
...
xx
NOZZLE MTD-731-1123
...
10
Nozzle Plate Ass'y. New Part MTD-14563A
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
14
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
15
Air Vane Plate Ass'y. For models 675 and 677 MTD-14536A
...
xx
Air Vane Plate Ass'y. w/Pulley For models 685, 689 and 687 MTD-14557A
...
16
Blower Housing Assembly MTD-14496B
...
17
Right Angle Bracket MTD-14541
...
18
Hex Self-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0600
...
19
Thumb Screw 5/16-18 MTD-710-1258
...
20
Hex Shoulder Nut .50 I.D. MTD-911-0758
...
21
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
22
Hex Locking Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
23
Housing - Engine Brace Ass'y. MTD-14539-0637
...
24
Rivet MTD-928-0173
...
25
Wiper Retaining Strip MTD-14569
...
26
Nozzle Wiper MTD-735-0214
...
28
Hex Bolt 5/16-18 x 1.00" Lg. Optional Part MTD-710-0602
...
29
Truss Mach. Scr. 1/4-20 x.75" Lg. Optional Part MTD-710-0924
...
30
Hex Nut 1/4-20 Thd. Optional Part MTD-912-0287
...
31
L-Wash. 1/4" I.D. Optional Part MTD-936-0329
...
32
Shoulder Spacer Optional Part MTD-748-0234
...
34
SHOULDER SCREW .498 DIA x .340 Optional Part MTD-738-0143
...
35
Bell-Wash. .400" I.D. x 1.13" O.D. Optional Part MTD-936-0219
...
36
Hex Jam L-Nut 3/8-26 Thd. Optional Part MTD-712-0181

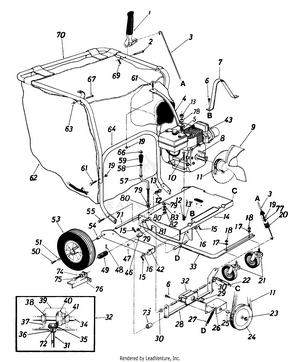

General Assembly

...
...
1
Clutch Grip Ass'y. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-05778B
...
2
Clevis Pin .375" Dia. x 1.88" Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-711-0679A
...
3
Clutch Rod 32: Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-747-0154
...
4
Handle Brace MTD-749-0787
...
5
Part of Engine MTD-NA
...
6
Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-710-0892
...
7
Belt Guard Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-14558
...
8
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
9
Air Vane Plate Ass'y. For models 675 and 677 Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-14536A
...
xx
Air Vane Plate Ass'y. w/Pulley MTD-14557A
...
10
SCREW 5/16-18 x 1.5 LG For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0805A
...
11
V-Belt Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-954-0219
...
12
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
13
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
14
Engine Mounting Frame Ass'y. MTD-16454
...
15
Cotter Pin 1/8" Dia. x 1" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0115
...
16
Fl-Wash. .63" I.D. x 1.25" O.D. MTD-736-0187
...
17
L-Wash. 1/2" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0921
...
18
HEX NUT For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0206
...
19
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
20
Extension Spring .78" O.D. x .75" Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-732-0411
...
21
Swivel Caster Wheel 5" Dia. x 1.25" MTD-734-1036
...
22
Extension Spring .38" O.D. x 3.18" Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-932-0409
...
23
E-RING FOR .500 Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-916-0104
...
24
"V"-Pulley 5/8" x 6.50" O.D. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-756-0367
...
25
Flange Bearing .502" I.D. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-748-0142
...
26
Gear Box Mounting Bracket Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-14570
...
27
Extension Spring .75" O.D. x 3.28" Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-932-0376
...
28
Clutch Bracket Ass'y. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-14565
...
29
#2 Woodruff Key 3/32" Dia. x .81" Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-714-0229
...
30
Hex Flange Bearing Bronze .625" I.D. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-948-0227A
...
31
SHAFT-PINION Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-738-0516
...
32
Gear Box Ass'y. Comp. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-717-0493
...
33
Caster Arm Ass'y. MTD-16273
...
34
Drive Shaft Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-08348
...
35
Bevel Gear .50" I.D. x 14 Teeth MTD-748-0136
...
36
Flange Bearing, .503 x .75 Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-948-0108
...
37
Gear Box Incl. Ref. 36 & 38 Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-753-0218
...
38
Flange Bearing .630" I.D. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-748-0110
...
39
Gear Box Cover Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-08187
...
40
Bevel Gear .62" I.D. x 28 Teeth Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-748-0135
...
41
Roll Pin 3/16 x 1.25" Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-915-0246
...
42
Hex Wash. Hd. AB-Tap Scr. 5/16" x .75" Lg. MTD-710-0726
...
43
Engine MTD-NA
...
xx
Muffler Guard Ass'y. Incl. Hardware; Optional Part. MTD-751-0581
...
46
Spacer .635" I.D. x .89" O.D. x .57" Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-948-0201
...
47
Side Plate MTD-14530
...
48
Spring Pin Spiral 3/16" Dia. x 1" Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-715-0247
...
49
Drive Pinion Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-748-0288
...
50
Hex Locking Bolt 5/16-24 x .62" Lg. MTD-710-0170
...
51
Fl-Wash. .34" I.D. x .87" O.D. MTD-736-0159
...
53
Wheel Ass'y. Comp. 12" x 3" Incl. Ball Bearings MTD-734-1035
...
xx
Wheel Ass'y. Comp. 10.5" x 4" (677) For model 677 Only MTD-634-0147
...
xx
Flange Bearing .632 ID For model 677 Only MTD-741-0487C
...
54
Spacer .63" I.D. x 1.0" O.D. x .94" Lg. For models 675, 685, 687 MTD-750-0194
...
xx
Spacer .63" I.D. x .878" O.D. x .79" Lg. For model 677 MTD-748-0192
...
55
Hex Bolt 5/16-18 x . 75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0118
...
57
Height Adjustment Crank MTD-747-0542
...
58
Fl-Wash. MTD-936-0117
...
59
Knob - Black MTD-920-0171
...
61
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
62
Vacuum Bag - Felt MTD-764-0162A
...
63
Push Speed Nut .25" Dia. Stud MTD-1539-019
...
64
Lower Handle MTD-749-0785
...
66
Push Nut 3/8" Dia. MTD-726-0100
...
67
Stud Pin .250" Dia. x 1.75" MTD-911-0737
...
69
Internal Cotter Pin 3/8" Dia. MTD-714-0145
...
70
Upper Handle MTD-749-0786
...
71
Rear Axle MTD-738-0185
...
72
Spring Roll Pin 1.12" Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-915-0249
...
73
Spacer 82" I.D. x 1.0" O.D. x .305 Lg Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-950-0142
...
74
Spring Wash. .265 I.D. x .562 O.D. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-936-0175
...
75
Hex Self-Tap Scr. 1/4" x 3/8" Lg. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-710-0352
...
76
R.H. Pinion Guard Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-14556
...
xx
L.H. Pinion Guard Not Shown MTD-14555
...
77
Hex Jam Nut 1/4-20 Thd. Parts for Self-Propelled Units (For models 685, 689, & 687) Only. MTD-912-0298
...
78
Belleville Washer MTD-736-0242
...
79
Fl-Wash. .35" I.D. x .87" O.D. MTD-736-0300
...
80
Spacer .38" I.D. x .50" O.D. x .18" Lg. MTD-950-0528
...
81
Ferrule 3/8-8 x .38" Dia. MTD-711-0797
...
82
Hex Nut 3/8-8 Thd. MTD-712-0354
...
83
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
xx
Grease, Benalene 8 oz tube MTD-737-0300A
...
...
...
