MTD 245-632-000 (1985) Log Splitter

Model: 245-632-000 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
xx

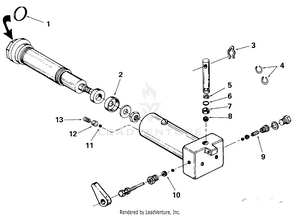

Kit-Seal MTD-753-0389
...
1
Quad Ring MTD-NA
...
2
Cup MTD-NA
...
3
Hair Pin Clip MTD-NA
...
4
Pin Ring MTD-NA
...
5
Back-Up Washer MTD-NA
...
6
"O"-Ring MTD-NA
...
7
Ball Retainer MTD-NA
...
8
Ball MTD-NA
...
9
Spring MTD-NA
...
10
Packing MTD-NA
...
11
Ball MTD-NA
...
12
Ball Retainer MTD-NA
...
13
Spring MTD-NA

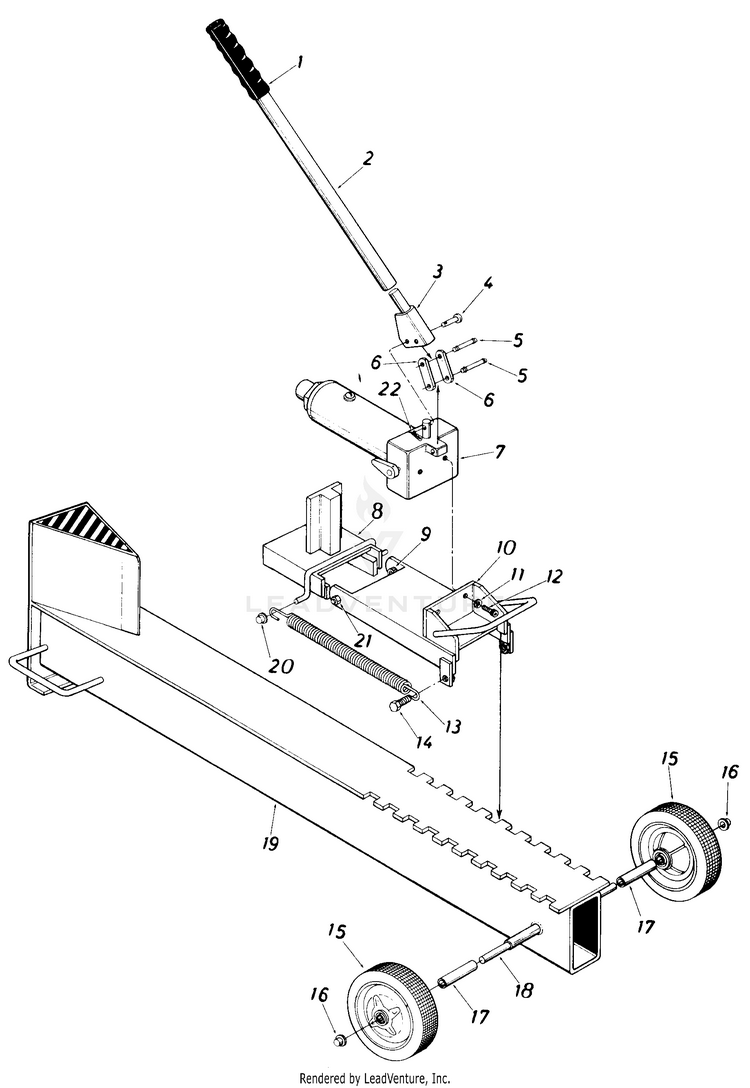

Parts

...
...
1
Rubber Grip MTD-720-0204
...
2
Handle 3/8" Dia. Rod MTD-747-0488
...
3
Handle Socket MTD-HW-66713
...
4
Clevis Pin .375" Dia. x 1.88" (Service Only) MTD-711-0679A
...
5
Pin & Ring Assembly MTD-HW-66727
...
6
Link MTD-HW-66722
...
7
Hydraulic Pump & Cylinder MTD-717-0614
...
8
Push Plate Ass'y. MTD-781-0050
...
9
Socket Hd. Bolt 1/2-13 x 75" Lg. MTD-710-0925
...
10
Cylinder Mounting MTD-781-0057
...
11
L.-Wash. 3/8" I.D.* MTD-736-0169
...
12
Socket Hd. Bolt 3/8-16 x .75" Lg. MTD-710-0926
...
13
Extension Spring .75" O.D. x 10.75" Lg. MTD-732-0466
...
14
Hex L.-Bolt 3/8-16 x .75" Lg.* MTD-710-0820
...
15
Wheel 7.0" x 1.75" MTD-734-1079
...
16
1/2" Push Cap MTD-726-0221
...
17
Spacer .550 ID x .750 OD MTD-950-0151
...
18
Axle 1/2" Dia. x 12" Lg. MTD-738-0584
...
19
Tube and Rail Ass'y. MTD-781-0066
...
20
1/2" Push Cap MTD-726-0221
...
21
Hex Lock Nut, 1/2-13 Thread MTD-912-0384
...
22
Inter. Cotter Pin (Service Only) MTD-714-0149B
...
...
...
