MTD 243-640A331 (1993) Chipper-Shredder Vac

Model: 243-640A331 (1993)

Save
Part Not Listed?Part Not Listed?
product name

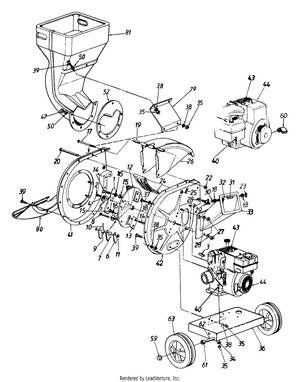

General Assembly

...
...

...
2
Hex Patch Bolt 3/8-24 x 2" Lg. (Gr. 8) Used with Keyed Engine Crankshaft MTD-710-0818

...
xx
Hex Patch Bolt 3/8-24 x 2.25" (Gr. 8) New Part Used with Tapered Engine Crankshaft MTD-710-1254

...
3
Sq. Key 1/4" x 1/4" x 2.00" Used with Keyed Engine Crankshaft MTD-914-0114

...
4
L-Wash. 3/8" I.D. H.D. MTD-736-0217

...
5
Fl-Wash..406" I.D. x 1.25" O.D. Hdn. MTD-736-0247

...
6

...
7
Flail Spacer MTD-911-0564

...
8
Clevis Pin .496" Dia. MTD-911-0833B

...
9
Flail Spacer w/.160" Dia. Hole MTD-911-0834A

...
10
Spring Roll Pin 1.12" Lg. MTD-915-0249

...
11
Fl-Wash..531" I.D. x .94" O.D. MTD-736-0192

...
12
Impeller Ass'y. Comp. Used with Keyed Engine Crankshaft MTD-681-0002

...
xx
Impeller Assembly (standard) (Incl. Ref. 1, 6, 7, 8, 9, 10, 11, 12, 13, 14) New Part Used with Tapered Engine Crankshaft MTD-981-04096

...
13
CHIPPER BLADE MTD-981-0490

...
14
Flat Hd. Scr. 5/16-24 x .75" Lg. MTD-710-1054

...
15
Hex Top L-Nut 5/16-24 (Gr. 5) MTD-712-0411

...
16
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
17
Hex Bolt 1/4-20 x 3.75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0825

...
18
Fl-Wash..281" I.D. x .50" O.D. MTD-736-0142

...
19
SPACER-.260 x .3 MTD-950-0793

...
20
Clevis Pin .50 Dia x 4.82 Lg. MTD-911-0835

...
22
Hex Ctr. L-Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0291

...
23
Cotter Pin MTD-714-3010

...
24
SHREDDER SCREEN MTD-781-0457-0637

...
25
Internal Cotter Pin 3/8" Dia. MTD-714-0149B

...
26
DISCHARGE CHUTE ASSEMBLY MTD-681-0094A

...
27
HEX NUT 5/16-18 MTD-712-3010

...
28
Bell-Wash..345" I.D. x .88" MTD-736-0242

...
29
Hand Knob MTD-720-0170

...
30
Chipper Door Rod MTD-747-0744A

...
31
Torsion Spring 1.14" Lg. MTD-732-0542

...
32
Chipper Door MTD-781-0489

...
33
Chipper Chute Ass'y. MTD-7S1-0475

...
34
Spec. L-Wash. 5/16" I.D. MTD-736-0170

...
35
HEX NUT 5/16-18 MTD-712-3010

...
36
FRAME ASSEMBLY New Part MTD-681-0184C

...
37
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157

...
38
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
39
SCREW 5/16-18 x .75 GR5 MTD-710-3008

...
40
SCREW 5/16-18 x 1.5 LG For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0805A

...
41
Flail Housing Ass'y.- L.H MTD-681-0004A

...
42
Flail Housing Ass'y.- R.H. MTD-781-0474A

...
43
Spark Plug Boot MTD-735-0639

...
44
Engine MTD-NA

...
47
Elastic Lock Nut 5/16-18 Thd. MTD-712-0429

...
50
Fl-Wash. 5/16" I.D. MTD-736-0264

...
52
Back-Up Plate MTD-781-0521

...
59
Push Cap 5/8" Dia. Rod MTD-726-0214

...
60
Drain Elbow (645C) New Part MTD-937-0195

...
61
Spacer 64" I.D. x .38" Lg. MTD-950-0786

...
62
Shredder Axle MTD-738-0814

...
63
Wheel Ass'y. Comp. MTD-734-1603

...
79
Hopper Support Brkt. MTD-781-0519

...
80
Front Support Brkt. MTD-781-0515

...
81
Leaf Hopper MTD-731-1307

...
xx
SHREDDER BAG (23.5 x 36) (WHITE) Not Shown MTD-664P04022A

...
xx
Safety Glasses Shown MTD-723-0400
...
...
...
