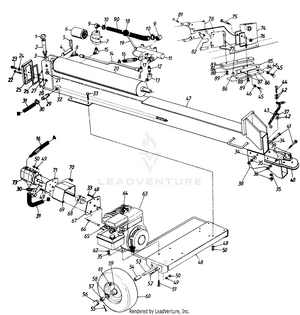

MTD 240-612-000 (1990) Log Splitter

Model: 240-612-000 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Cap Ass'y. MTD-745-0174
...
2
Filler Tube Ass'y. MTD-781-0036
...
3
"O" Ring .92" I.D. MTD-721-0204
...
4
Cylinder Mtg. Pin 3.82" Lg. MTD-715-0205
...
5
External Cotter Pin MTD-714-0203
...
6
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405
...
7
Filter Head MTD-681-0179
...
8
90ø Solid Male Adapter MTD-737-0192
...
9
Return Elbow MTD-737-0153
...
10
Adj. Hose Clamp MTD-726-0146
...
11
Control Valve MTD-717-0942
...
12
Pipe Nipple 1/2 NPT x 2" Lg. MTD-737-0238
...
13
Street Elbow 1/2" Male x 1/2" Female NPT MTD-737-0260
...
14
Metal Pressure Tube MTD-727-0307
...
15
Male Pipe Elbow 3/4" MTD-737-0262
...
16
High Pressure Hydraulic Hose 0 0 27.5 Lg. MTD-727-0431
...
17
90ø Solid Male Adapter MTD-737-0171
...
18
Ball Knob MTD-720-0231
...
19
Control Handle MTD-747-0709
...
20
Hydraulic Cylinder MTD-717-0885B
...
21
Hex Nut 1-1/16-12 Thd. MTD-712-0338
...
22
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
23
Screw, 5/16-18 x .625 MTD-710-0604A
...
24
Gasket Washer 5/16" I.D. MTD-721-0205A
...
25
End Plate MTD-781-0317
...
26
Gasket MTD-721-0217
...
27
FLAT WASHER MTD-736-0275
...
28
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
29
Adapter 1" x 1-1/16-12 Thd. MTD-737-0191
...
30
Hose Clamp 5/8 MTD-726-0132
...
31
Suction Hose 1.0" I.D. MTD-727-0428
...
32
Strainer Tube Ass'y. MTD-781-0021
...
33
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
34
Shld. Spacer .625" I.D. MTD-938-0347
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
HEX NUT 3/8-16 GR5 MTD-712-3017
...
37
Spacer, .380 x .625 x .255 MTD-750-04776
...
38
Beam Stand MTD-781-0311
...
39
Spacer .375" I.D. x .625" O.D. MTD-750-0261
...
40
Hitch Ass'y. MTD-727-0289
...
41
Hex Bolt 3/8-16 x 3.25n Lg. (Grade 8) MTD-710-3130
...
42
Fl-Wash. 375" I.D. x .87" O.D. MTD-736-0262
...
43
Chain Tow Hitch MTD-713-0338
...
44
Hex Bolt 3/8-16 x l.5n Lg. (Grade 5) MTD-710-0520
...
45
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
46
Hex Jam Nut, 3/8-24 MTD-912-3001
...
47
Tank Beam Ass'y. MTD-781-0335
...
48
Engine Frame Ass'y. MTD-781-0033B
...
49
Lock Wash. 5/16" I.D. MTD-936-0119
...
50
Hex Nut 5/16-24 Thd. MTD-912-3057
...
51
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
52
Hex Bolt 5/16-24 x 1.75" Lg. MTD-710-0409
...
53
Axle Ass'y. MTD-781-0018
...
54
Spacer .75" I.D. x 1.56" Lg. MTD-750-0442
...
55
Cotter Pin 5/32" Dia. MTD-714-0162
...
56
Hub Cap MTD-734-0873
...
57
Hex Slotted Nut 3/4-16 Thd. MTD-712-0299
...
58
Roller Rearing 3/4" I.D MTD-941-0107
...
59
Dust Seal MTD-921-0168
...
60
Wheel Assembly MTD-634-0186
...
xx
Tire Only MTD-734-0872
...
61
TUBELESS VALVE MTD-934-0255
...
62
Hex Nut 3/8-24 Thd. MTD-712-0241
...
63
Engine MTD-130202-3116-01
...
64
Spark Plug Boot MTD-735-0639
...
65
Sq. Key 3/16-.75" Lg. MTD-714-0122
...
66
Hex Bolt 5/16-24 x 4" Lg. MTD-710-0363
...
67
Front Coupling Support Bracket MTD-781-0098A-0637
...
68
Flex Coupling MTD-917-0891
...
69
Coupling Shield MTD-719-0278
...
70
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
71
Rear Coupling Support Bracket MTD-781-0097-0637
...
72
Hi-Pro Key 1/8n x 1/2n Lg. MTD-714-3024
...
73
Gear Pump (11 GPM) (Incl. Ref. 72) MTD-753-05194
...
74
Wedge Assembly MTD-753-04120
...
75
Hex Bolt 1/2-20 x 3" Lg. (Grade 8) MTD-710-1010
...
76
Hex L-Nut 1/2-20 Thd. MTD-712-0239
...
77
Hex Bolt 1/2-20 x 2.75n Lg. (Grade 8) MTD-710-1018
...
78
Stripper Side MTD-781-0168A
...
81
Hex Bolt 3/8-16 x 2" Lg. (Grade 5) MTD-710-3144
...
82
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
83
Fixed Side Gib MTD-781-0350A
...
84
Pusher Back Plate MTD-781-0346A
...
85
Floating Gib Plate MTD-781-0356
...
86
Spacer 1/2" I.D. x .68n Lg. MTD-750-0743
...
87
Adjustable Gib MTD-781-0351
...
88
L-Wash. 1/2n I.D. MTD-736-0921
...
89
Hex Nut 1/2-20 Thd. MTD-712-0333
...
90
Return Hose 3/4" I.D. x 20.5" Lg. MTD-727-0436
...
...
...
