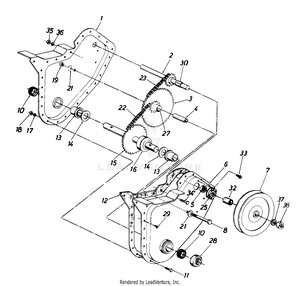

Pulley - Chain Case New Part; Not part of chain case assembly
MTD-756-0996
8
Hex Bolt 3/8-24 x 2.5" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0369
Hex Bolt 1/4-28 x 50" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-910-0195
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0329
18
Hex Nut 1/4-28 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-0138
Spacer .647 x .77" Not part of chain case assembly; New Part
MTD-750-0999
33
Hex Wash. Hd. Self-Tap, Scr. 1/4-20 x .38" Lg.
MTD-710-0653
34
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0118
35
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-3010
36
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0119
Hex Bolt 1/4-20 x 2" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0501
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0119
Hex Bolt 5/16-18 x 1" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0376
25
Hex Bolt 5/16-18 x 5/8" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0759
Hex Bolt 1/4-20 x 5/8" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0258
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0329
SCREW 5/16-18 x 1.5 LG For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0805A
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-0287
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-3010
77
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-736-0169
