MTD 215-418-000 (1985) Tiller

Model: 215-418-000 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

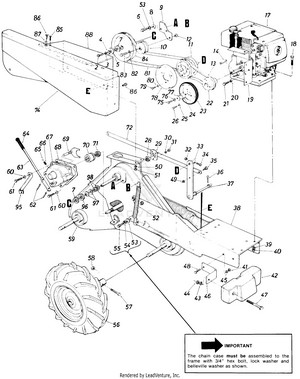

Parts04

...
...
2
Hex L-Bolt 5/16-24 x 1.5" Lg. MTD-710-0876
...
3
Lock Wash. 5/16" I.D. MTD-936-0119
...
4
Fl-Wash. 5/16" I.D. x 1.125"O.D. MTD-736-0231
...
5
Friction Disc Ass'y. MTD-15727
...
6
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
7
Friction Pad MTD-761-0189
...
8
Shoulder Spacer, .380 ID MTD-738-0372B
...
9
Idler Bracket MTD-14740
...
10
Fl-Idler 2.75" Dia. MTD-756-0225
...
11
Variable Speed Ass'y. MTD-717-0343
...
12
Hex Ins. L-Nut 3/8-16 Thd. MTD-712-0130
...
13
V-Belt 5/8" x 27.0" Lg. MTD-954-0220
...
14
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
17
Engine MTD-NA
...
18
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
19
Belt Cover Support Ass'y. MTD-784-0044
...
20
Internal L-Wash. 1/2" I.D. MTD-736-0114
...
21
HEX SCREW 1/2/20 x .75 SPEC MTD-710-0121
...
22
Engine Pulley Ass'y. MTD-756-0296
...
23
Friction Wheel Ass'y. MTD-05080AP
...
24
Spacer MTD-750-0598
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
Hex Bolt 5/16-18 x .50" Lg. MTD-710-3039
...
28
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
29
Bearing Housing MTD-05034A
...
30
L-Wash. 1/4" I.D. MTD-936-0329
...
31
Hex Nut 1/4-28 Thd. MTD-712-0138
...
32
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
33
Variable Speed Brkt. Ass'y. MTD-04837
...
34
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
35
Shld. Bolt 1/2" Dia. x .25" Lg. MTD-738-0380
...
36
Cotter Pin 118" Dia. x 1.0" Lg . MTD-714-0115
...
37
Fl-Wash. .686" I.D. x 1.25" O.D. MTD-736-0237
...
38
Frame Ass'y. MTD-784-0043
...
39
Lock Wash. 5/16" I.D. MTD-936-0119
...
40
HEX NUT 5/16-18 MTD-712-3010
...
41
Hex Cent. L-Nut 3/8-24 Thd. MTD-712-0214
...
42
Weight MTD-723-0340
...
43
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0326
...
44
HEX NUT MTD-712-0206
...
45
L-Wash. 3/8" I.D. MTD-736-0169
...
46
Weight Mtg. Brkt. MTD-04860
...
47
Hex Bolt 1/2-13 x 4.50" Lg.* MTD-710-1807
...
48
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
49
Hex Ins. L-Nut 3/8-16 Thd. MTD-712-0130
...
50
L-Wash. 1/4" I.D. MTD-936-0329
...
51
Hex Cent. L-Nut 1/4-28 Thd. MTD-712-0138
...
52
Ext. Spring .62" O.D. x 6.12" MTD-932-0384
...
53
Belleville Wash. 3/8" I.D. MTD-736-0105
...
54
L-Wash. 3/8" I.D. MTD-736-0169
...
55
Hex Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
56
Wheel Ass'y. Comp.-R.H. MTD-734-0806
...
xx
Wheel Ass'y. Comp.-L.H. (Not Shown) MTD-734-0807
...
57
Hex Bolt 3/8-24 x 1.25" Lg.* MTD-710-0191
...
58
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
59
Chain Case Ass'y. Comp. The chain case MUST be assembled to the frame as illustrated. See diagram note. MTD-15385
...
60
Lock Wash. 5/16" I.D. MTD-936-0119
...
61
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
62
Headed Spiral Pin 3/16 x 13/16" Lg. MTD-715-0139
...
63
Engagement Lever MTD-747-0265
...
64
G ri p MTD-720-0143
...
65
DETENT BALL .250 MTD-741-0862
...
66
DETENT SHAFT SPRING MTD-932-05125
...
67
Shift Housing-R.H. MTD-719-0238
...
xx
Shift Housing-L.H. (Not Shown) MTD-719-0237
...
68
Gasket-Shift Housing MTD-721-0162
...
69
Shift Yoke Ass'y.-R.H. MTD-04858
...
xx
Shift Yoke Ass'y.-L.H. (Not Shown) MTD-04859
...
70
Clutch Dog MTD-717-0383
...
71
Clutch Dog Driver MTD-717-0382
...
72
Control Brkt. MTD-04841
...
74
Shroud Belt Cover MTD-15287
...
75
Hex Bolt 7/16-20 x 2.25" Lg. MTD-710-0483
...
76
L-Wash. 7/16" I.D. MTD-736-0171
...
77
Fl-Wash. .438" I.D. x 1.37" O.D. MTD-936-0319
...
78
Friction Disc MTD-04836
...
79
Hex Bolt 1/4-28 x .50" Lg. MTD-710-0230
...
80
L-Wash. 1/4" I.D. MTD-936-0329
...
81
"V"-Belt 5/8" x 51" Lg. MTD-754-0268
...
82
L-Wash. 3/8" I.D. MTD-736-0169
...
83
Hex Bolt 3/8" x 1.50" Lg. MTD-710-0344
...
84
Input Pulley-Chain Case MTD-756-0410
...
85
Hex Bolt 1/4-28 x 50" Lg. MTD-910-0195
...
86
Hex Wash. Hd. Self-Tap Scr. MTD-710-0599
...
87
Fl-Wash. 1/4" I.D. MTD-736-0173
...
88
Belt Cover Shroud MTD-784-0046
...
95
Brace MTD-15291
...
96
Floating Disc MTD-748-0296
...
97
Spring Bell-Wash. MTD-736-0352
...
98
Hex Jam Nut 1.0-14 MTD-712-0331
...
...
...
