MTD 211-640-372/06-448641 Chipper-Shredder Vac

Model: 211-640-372/06-448641

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
UPPER LEAF RAMP SECTIO MTD-11461B
...
2
TRUSS MACHINE SCREW 1/4-20 x .5" MTD-710-0286
...
3
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
4
PIVOTHOPPER HOOD MTD-781-0494
...
5
LOWER LEAF RAMP SECTIO MTD-781-0496
...
6
HOPPER - PIVOT DOOR MTD-781-0492
...
7
HOPPER LOCKOUT BRACKET MTD-781-0493
...
8
Torsion Spring MTD-932-0629
...
9
HOPPER DOOR ROD MTD-747-0747
...
10
PUSH NUT MTD-726-0106
...
11
RELEASE BAR MTD-747-0531A

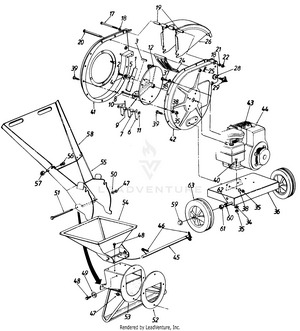

Parts

...
...
1
Blade MTD-13431-0637
...
2
Hex Patch Bolt 3/8-24 x 2.0" Lg. (Grade 8) MTD-710-0818
...
3
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
4
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
5
Fl-Wash. .406" I.D. x 1.25" O.D. Hdn. MTD-736-0247
...
6
Flail MTD-91459B
...
7
Flail Spacer MTD-911-0564
...
8
Clevis Pin .496" Dia. MTD-911-0833B
...
9
Flail Spacer w/.160" Dia. Hole MTD-911-0834A
...
10
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
11
Fl-Wash. .531" I.D. x .94" O.D. MTD-736-0192
...
12
Impeller Ass'y. MTD-781-0485
...
17
Hex Bolt 1/4-20 x 4.0" Lg. MTD-710-1058
...
18
Fl-Wash. .344" I.D. x .875" O.D. MTD-736-0159
...
19
SPACER-.260 x .3 MTD-950-0793
...
20
Clevis Pin .50 Dia x 4.82 Lg. MTD-911-0835
...
21
L-Wash. 1/4" I.D. MTD-936-0329
...
22
Hex Nut 1/4-20 Thd. MTD-912-0287
...
24
SHREDDER SCREEN MTD-781-0457-0637
...
25
Internal Cotter Pin 3/8" Dia. MTD-714-0145
...
26
DISCHARGE CHUTE ASSEMBLY MTD-681-0094A
...
28
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
29
Hand Knob MTD-720-0170
...
34
Spec. L-Wash. 5/16" I.D. MTD-736-0170
...
35
HEX NUT 5/16-18 MTD-712-3010
...
36
FRAME ASSEMBLY MTD-681-0184C
...
37
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
40
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
41
Flail Housing Ass'y.-L.H. MTD-781-0473
...
42
Flail Housing Ass'y.-R.H. MTD-781-0472
...
43
Spark Plug Boot (Optional) MTD-735-0639
...
44
Engine MTD-NA
...
45
Release Bar MTD-747-0531A
...
46
Torsion Spring 1.06" Lg MTD-932-0546
...
47
Elastic Lock Nut 5/16-18 Thd. MTD-712-0429
...
48
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
49
Stop Washer MTD-11480
...
50
Fl-Wash. 5/16" 1 .D. MTD-736-0264
...
51
Hex Bolt 5/16-18 x 8.38" Lg. MTD-710-0542
...
52
Back-Up Plate MTD-781-0487A
...
53
Inlet Guide Ass'y. MTD-16522A
...
54
HopperAss'y. MTD-11481B
...
55
Lower Leaf Ramp Section MTD-781-0509
...
56
Truss Mach. Scr. 1/4-20 x .5"* MTD-710-0286
...
57
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
58
N/638 Upper Leaf Ramp Section MTD-11461B
...
59
Push Cap 5/8" Dia. Rod MTD-726-0214
...
60
Fl-Wash. .64" I.D. x 1.24" MTD-736-0187
...
61
Spacer 64" I.D. x .38" Lg. MTD-950-0786
...
62
Shredder Axle MTD-738-0814
...
63
Wheel Ass'y. Comp. MTD-734-1603
...
xx
SHREDDER BAG (23.5 x 36) (WHITE) (Not Shown) MTD-664P04022A
...
xx
Safety Glasses (Not Shown) MTD-723-0400
...
...
...
