MTD 185-708-000 (1995) Push Walk Behind Mower

Model: 185-708-000 (1995)

Save
 Part Not Listed?Part Not Listed?
product name

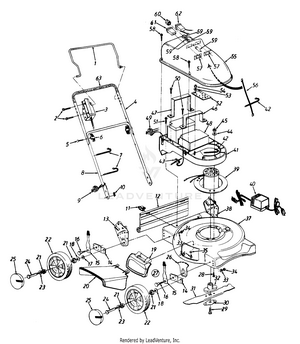

General Assembly

...
...
1
Control Handle New Part MTD-747-0622
...
2
C-Sunk Scr. 1/4-20 x 1.8" Lg. MTD-710-0605
...
3
Switch Ass'y. New Part MTD-625-0010
...
4
Upper Handle MTD-749-0538C
...
5
Carr. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
6
Hand Knob MTD-920-0276
...
7
Cable Tie MTD-725-0157
...
8
Lower Handle MTD-749-0928A-0637
...
9
Plug MTD-925-1206
...
10
Hairpin Clip MTD-714-0104
...
11
Hinge Clip MTD-17098P
...
12
Rear Flap MTD-731-1028
...
13
Hdle Brkt. Assy. L.H. MTD-753-05962
...
14
Wheel Pivot Bar MTD-15262B
...
15
Front Spring Lever MTD-94832
...
16
Shld. Bolt .5" Dia. x .43" Lg MTD-738-0507B
...
17
FL-Wash. .385" I.D. x 1" O.D. MTD-736-0258
...
18
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
19
Mulching Plug Ass'y. MTD-682-7002
...
20
Side Discharge Deflector MTD-731-1409B
...
21
BALL BEARING MTD-941-0484
...
22
Wheels - Front MTD-753-08093
...
23
Wave Washer.510 ID x.750 OD MTD-936-0504
...
24
Shld. Bolt .598" Dia. x 1.45 MTD-738-0213
...
25
Hub Cap Gray (3-1/2" Dia.) MTD-920-0249
...
26
Height Adjustment Plate MTD-787-01290A
...
27
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
28
Hex Wash. Self-Tap Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
29
Hex Bolt 3/8-24 x 2.5" Lg. MTD-710-1251
...
30
BLADE BELL SUPPORT MTD-736-0524B-1
...
31
18" Blade New Part MTD-942-0743
...
32
Blade Adapter MTD-748-0380
...
33
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
34
Hex Nut 3/8-16 Thd. MTD-712-0798
...
35
SPRING WASHER BELL MTD-736-0270
...
36
Hex Wash. Hd. TT-Tap Scr. 1/4 x .5" Lg. MTD-710-0599
...
37
Deck Ass'y. MTD-682-0018
...
38
Hdle Brkt. Assy. L.H. MTD-753-05962
...
39
Motor Ass'y. MTD-624-0033
...
40
Charger MTD-925-1684
...
41
Tray Ass'y. New Part MTD-731-1593
...
42
Cable Tie MTD-726-0317
...
43
Harness Ass'y. Switch New Part MTD-629-0235
...
44
FL-Wash. .406" I.D. MTD-736-3050
...
45
Hex L-Nut 3/8-16 Thd. MTD-712-0181
...
46
Front Bracket Ass'y. New Part MTD-682-9016
...
47
Rear Bracket Ass'y. New Part MTD-682-9017
...
48
Battery Ass'y. New Part MTD-625-0017
...
49
Charger Plug New Part MTD-629-0251
...
50
Hex Hd. Hi-Lo Scr. 1/4 x .75" Lg. MTD-710-0895
...
51
Hex Wash. Hd. Tt-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788
...
52
Circuit Board New Part MTD-725-1689
...
53
FL-Wash. .21" I.D. x .56" O.D. MTD-736-0534
...
54
Palnut Self-Threading MTD-712-3060
...
55
Motor Cover MTD-731-1594
...
56
Key Switch Harness Ass'y. MTD-629-0249
...
57
Mounting Clamp MTD-725-1687
...
58
Hex AB-Tap Scr. #10 x .75" Lg. MTD-710-0589
...
59
Key Switch MTD-725-1676
...
60
Key MTD-725-1341B
...
61
Meter MTD-725-1685
...
62
Meter MTD-725-1686
...
63
Grip Foam (Optional) MTD-720-0295
...
...
...
