MTD 185-427-372 (1994) Push Walk Behind Mower

Model: 185-427-372 (1994)

Save
 Part Not Listed?Part Not Listed?
product name

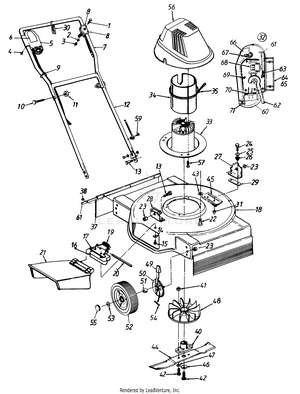

General Assembly

...
...
1
Hex Bolt 1/4-20 x 1.5" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list MTD-710-0606
...
2
Fl-Wash .281" I.D. x .5" O.D. MTD-736-0142
...
3
Acorn Nut 1/4-20 Thd. MTD-712-0442
...
4
Self-Tap Scr. #7 x 1" Lg. MTD-710-1150
...
5
UNKNOWN MTD-NA
...
6
Label - Switch Box MTD-777-9380
...
7
Upper Handle MTD-749-0900
...
8
Control Flip Knob MTD-720-0250
...
9
Cable Tie MTD-726-0303
...
10
Curved Hd. Bolt 5/16-18 x 7/8" Lg. MTD-710-0671
...
11
Hex L-Nut 5/16-18 Thd. MTD-712-0437
...
12
Lower Handle MTD-649-2220
...
13
Shld. Bolt 3/8-16 Thd. MTD-738-0859
...
14
SPRING WASHER BELL MTD-736-0270
...
15
Self-Tap Scr. 1/4-20 x 1.12" Lg. MTD-710-1108
...
16
Spacer MTD-731-1266
...
17
Chute Deflector Adapter MTD-17032A
...
18
19" Deck Ass'y. MTD-682-0105
...
19
Torsion Spring MTD-932-0593
...
20
Hinge Pin MTD-747-0710A
...
21
Chute Deflector Ass'y. (Incl. Ref. 17, 19, 20) MTD-931-1034B
...
22
Hex Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0654A
...
23
Hex Sems Nut 3/8-16 Thd. MTD-712-0438
...
24
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
25
Fl-Wash..26" I.D. x .72" O.D. MTD-736-3090
...
26
Insulator Shield MTD-731-1219
...
27
Handle Brkt.- L.H. MTD-782-3013
...
28
Handle Brkt.- R.H. MTD-782-3012
...
29
Insulator Strap MTD-721-0278
...
30
Cord Restraint MTD-725-1590
...
31
Hex Nylon Lock Nut 1/4-20 Thd. MTD-712-0324
...
32
Cord & Switch Ass'y. Comp. MTD-624-0032
...
33
Motor & Switch Ass'y. Comp. MTD-818-60013
...
34
Insulator Motor Hsg. MTD-721-0311
...
35
Cable Tie MTD-726-0230
...
37
Flap - Rear & Front MTD-720-0248
...
38
Pop Rivet .187" Dia. MTD-928-0180
...
40
Blade Adapter MTD-748-0343
...
41
Hex Nut 3/8-24 Thd. MTD-712-0241
...
42
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
43
Spacer MTD-731-1175
...
44
19" Blade MTD-742-0519
...
45
Deck Reinforcement Plate MTD-782-5001
...
46
Bell-Wash..4" I.D. x 1.14" O.O. MTD-736-0452
...
47
Bell-Wash. 3/8" I.D. MTD-736-0331
...
48
Motor Fan MTD-731-1250
...
49
Knob MTD-720-0239
...
50
Height Adj. Ass'y. (RF/LR) MTD-682-0009
...
xx
Weight Adj. Ass'y. (LF/RR) MTD-682-0010
...
51
Plastic Wheel Spacer MTD-750-0796
...
52
7" Wheel MTD-734-1797
...
53
Fl-Wash, .531" I.D. x .875" O.D. MTD-736-3068
...
54
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
55
Hub Cap MTD-731-0251
...
56
Motor Cover MTD-731-1263
...
57
Screw #10 x .75" Lg. MTD-710-1128
...
59
Self-Tap AB-Tap Scr. #10-16 x .5" Lg. MTD-710-1167
...
60
Retainer Plug MTD-731-1211
...
61
Latch MTD-731-1198
...
62
Cord Ass'y. (Incl. Ref. #70) MTD-624-0053
...
63
Spring Latch MTD-732-0681
...
64
Housing - Upper Half MTD-731-1208
...
65
Housing - Lower Half (Not Shown) MTD-731-1209
...
66
Handle - Switch Actuator MTD-731-1210
...
67
Spring - Switch Handle MTD-732-0679
...
68
Switch MTD-725-1565
...
69
Screw #6-32 x .5" Lg. MTD-710-1147
...
70
Plug Ass'y. MTD-929-0304
...
71
Retainer Plug Spring MTD-932-0680
...
?72
Hex Bolt 3/8-24 x 2,5" Lg. MTD-710-1251
...
...
...
