MTD 181-222A000 (1991) Push Walk Behind Mower

Model: 181-222A000 (1991)

Save
 Part Not Listed?Part Not Listed?
product name

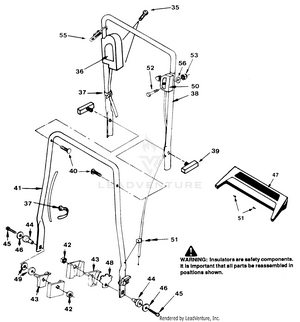

Handle Detail

...
...
35
Screw MTD-710-1150
...
36
MotorSwitch Label MTD-777-9380
...
37
Plastic Tie MTD-726-0303
...
38
Handle, Upper MTD-749-0900
...
39
Star Knob MTD-720-04072A
...
40
Curved Head Screw MTD-710-1152
...
41
Handle, Lower MTD-749-0877
...
42
Nut 5/16-18 x 1/2 Locking MTD-712-0429
...
43
Bracket Insulator MTD-721-0280
...
44
Screw Insulator MTD-721-0279
...
45
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
46
Washer MTD-736-0262
...
47
Trim plate (Optional) MTD-720-0253
...
48
Upstop Bracket MTD-782-3014
...
49
Washer MTD-736-3068
...
50
Cable Release Control MTD-720-0250
...
51
Mounting Screw MTD-710-0589
...
52
Hex Bolt 1/4-20 x 1.50" Lg. (Grade 5) MTD-910-0886
...
53
Nut 1/4-20 Acorn MTD-712-0442
...
55
Strain Relief MTD-725-1590
...
56
Washer MTD-736-0142

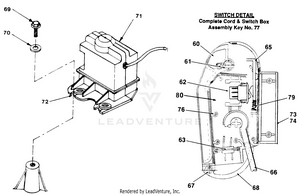

Motor & Switch Assembly

...
...
60
Handle-Switch MTD-731-1210
...
61
Spring MTD-732-0679
...
62
Switch MTD-725-1565
...
63
Plug Ass'y. MTD-929-0304
...
65
Latch MTD-731-1198
...
66
Cord Assy. (Includes #63) MTD-818-60001
...
67
Retainer Plug Spring MTD-932-0680
...
68
Plug Retainer MTD-731-1211
...
69
Bolt, Motor Mount MTD-710-1108
...
70
Washer-1/4" ID x 3/4" OD x 1/16" Thick MTD-736-3090
...
71
Motor & Switch Assy. (Complete) MTD-818-60121
...
72
Insulator, Motor Housing (Part ot Ref. No. 56) MTD-731-1216
...
73
Housing - Upper Half MTD-731-1208
...
74
Housing - Lower Han (Not Shown) MTD-731-1209
...
76
Screw - Switch Box (Not Shown) MTD-710-1147
...
xx
Cord & Switch Box (Complete) MTD-818-60000
...
79
Latch Spring MTD-732-0681
...
80
Jumper Wire (Not Shown) MTD-818-60002

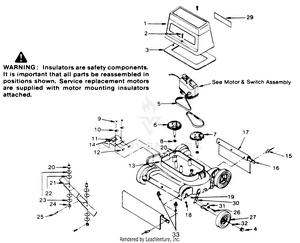

Parts

...
...
1
Motor Cover MTD-731-1241
...
2
Screw Motor Cover MTD-710-1111
...
3
Baffle Air MTD-724-0172
...
4
Hub Cap MTD-720-0251
...
5
BELT MTD-954-0374
...
6
Blade Shaft/Pulley Long MTD-618-0022
...
7
Blade Shaft/Pulley Short MTD-618-0021
...
8
Fl-Wash. .531" I.D. x .93" O.D. MTD-936-0160
...
9
Pop Rivet .188 Dia. MTD-928-0123
...
10
Hinge, Chute Guard MTD-782-3015
...
11
Chute Guard MTD-782-7001
...
12
Hinge Pin MTD-711-0872
...
13
Deck Assembly (Inc. Ref. #20, 15, 16, 17) MTD-682-0011
...
14
LABEL MTD-977S30145
...
15
Pop Rivet .187" Dia. MTD-928-0180
...
16
Strap - Trail Shield MTD-782-7515
...
17
Trailing Guard MTD-720-0248
...
18
Nut 5/16 - 18 Locking MTD-712-0429
...
19
Washer, Axle MTD-736-0464
...
20
Bearing, Blade Shaft MTD-741-0582
...
21
Blade - 9" MTD-742-0565
...
22
Washer, Fibre MTD-736-0468
...
23
Washer, Flat MTD-736-0467
...
24
Nut, Blade MTD-712-0443
...
25
Cotter Pin MTD-714-0228
...
26
Shoulder Bolt MTD-738-0860
...
27
Wheel MTD-634-0010
...
29
Caution & Data Label MTD-777-9381
...
30
Handle Height Adjustment MTD-782-0017
...
31
Bracket & Axle Assembly MTD-682-0507
...
32
Retaining Ring MTD-716-0183
...
33
GREASE FITTING (SLOTTED) MTD-737-0280
...
xx
Operator's Manual (Not Shown) MTD-770-7393F
...
...
...
