MTD 181-014J000 (1991) Push Walk Behind Mower

Model: 181-014J000 (1991)

Save
 Part Not Listed?Part Not Listed?
product name

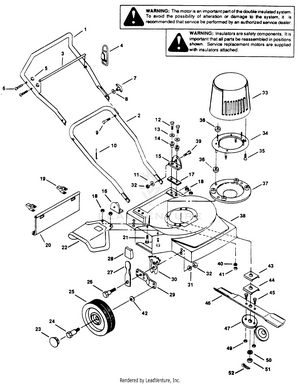

Parts

...
...
1
Upper Handle MTD-749-0876
...
2
Lower Handle MTD-749-0845
...
3
Cord Control Rod MTD-747-0795
...
4
Cord Minder MTD-725-1590
...
5
Lock Nut #10-24 MTD-712-0161
...
6
Mach. Screw #10-24 x 1-1/8" MTD-710-1171
...
7
Star Knob MTD-720-04072A
...
8
Curved Washer 5/16" I.D. MTD-736-0486
...
9
Saddle Bolt 5/16-18 x 2 MTD-710-1152
...
10
Plastic Tie MTD-726-0300
...
11
Fl-Wash. 3/8" I.D. x .937" O.D. MTD-736-0485
...
12
Hex Bolt 1/4-20 x 7/8" MTD-710-0206
...
13
Flat Washer 1/4" I D. MTD-736-3090
...
14
Insulator - Handle Bracket MTD-731-1219
...
15
LH Handle Bracket MTD-782-3019
...
16
RH Hardle Bracket MTD-782-3018
...
17
Insulator Strip MTD-721-0278
...
18
Lock Nut 1/4-20 Thd. MTD-712-0324
...
19
Hinge Clip MTD-17098P
...
20
Trail Shield MTD-731-1027
...
21
Carriage Bolt 1/4-20 x 3/4" MTD-710-0134
...
22
Safety Chute Guard MTD-731-1238
...
23
Hub Cap MTD-720-0251
...
24
Wheel Bolt MTD-738-0102
...
25
Front Wheel - 6" MTD-634-0011
...
xx
Rear Wheel - 7" MTD-634-0012
...
26
Pivot Bolt - Adjuster MTD-738-0507B
...
27
Front Spring Lever MTD-94832
...
28
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
29
Pivot Arm - Adjuster MTD-15262B
...
30
Height Adjustment Plate MTD-787-01290A
...
31
Bell Washer .39" I.d. x 1.38" O.D. (Larger) MTD-936-0356
...
32
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
33
Motor Cover (Gray) MTD-731-1239
...
34
Plate Assembly MTD-682-9000
...
35
Tapping Screw #10 x 3/4 MTD-710-1128
...
36
Spacer - Motor Mounting MTD-731-1175
...
37
Shield MTD-731-1174
...
38
Deck Ass'y. -16" Steel MTD-682-0004
...
39
Hex Bolt 3/8-16 x 3/4" MTD-710-0216
...
40
Flat Washer 5/16" I.D. MTD-736-0461
...
41
Lock Nut 5/16-18 Thd. MTD-712-0429
...
42
Bell Washer (Small) MTD-736-0105
...
43
Adapter - Blade Mounting MTD-748-0343
...
44
Insulator - Blade Adapter MTD-731-1218
...
45
Carriage Bolt 5/16-18 x 3/4 MTD-710-0451
...
46
Blade -16" Electric MTD-742-0566
...
47
Insulator- Blade MTD-731-1217
...
49
Keps Nuts 5/16-18 Thd. MTD-712-0434
...
50
Washer (Heat Treated Special) MTD-736-0462
...
51
Slotted Nut 1/2-20 Thd. MTD-712-0401
...
52
Coner Pin (Stainless Steel) MTD-714-0228
...
xx
Owner's Manual (Not Shown) MTD-770-7182F

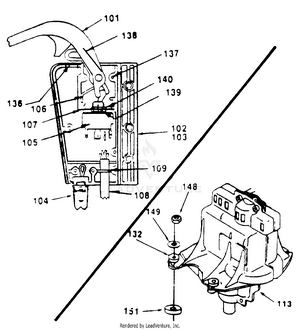

Parts

...
...
101
Handle - Switch MTD-725-1594
...
102
Housing - Upper Halt MTD-725-1593
...
103
Housing - Lower Halt MTD-725-1592
...
104
Plug Assembly MTD-729-0316
...
105
Switch MTD-725-1591
...
106
Spring - Switch Handle MTD-732-0666
...
107
Switch Mount Plate MTD-725-1596
...
108
Cord Assembly MTD-629-0002
...
109
Cord Restraint MTD-725-1595
...
113
Motor&SwitchAssembly Complete MTD-624-0015
...
132
Insulator - Motor Housing MTD-731-1216
...
136
Hole Plug MTD-721-0281
...
137
Screw-Switch 80x (Spec) (Not Shown) MTD-710-1172
...
138
Interlock Trigger MTD-725-1597
...
139
Washer MTD-736-0192
...
140
Nut-Switch Mounting MTD-712-0444
...
148
Nut 1/4-20 Locking (Not part of complete Motor & Switch Asssembly) MTD-712-0324
...
149
Flat Washer 1/4" I.D. (Not part of complete Motor & Switch Asssembly) MTD-736-3090
...
151
Spacer - Motor Mounting (Not part of complete Motor & Switch Asssembly) MTD-731-1175
...
xx
Cord & Switch Box Assembly (Complete) MTD-818-60138
...
...
...
