product name

MTD 149-817-000 (1989) Garden Tractor

Model: 149-817-000 (1989)

Save
 Part Not Listed?Part Not Listed?
product name

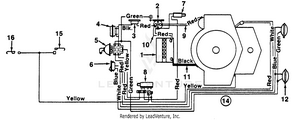

Electrical

...
...
1
Battery MTD-725-0453A
...
2
Solenoid MTD-925-0771
...
3
Circuit Breaker MTD-753-0685
...
4
Ammeter MTD-925-0925
...
5
Ignition Switch MTD-925-0267B
...
6
Light Switch MTD-925-0634
...
7
Safety Switch-Black N.O. (Clutch) MTD-925-0268
...
8
Safety Switch (PTO) MTD-925-0465A
...
9
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
10
Electric Wire 7.5" Lg. MTD-725-0563
...
11
Ground Wire 7.5" Lg. MTD-725-0996
...
12
Head Light MTD-925-0222
...
14
Wire Harness MTD-725-1398
...
15
Spring Switch MTD-725-0759
...
16
Outer Seat Spring Switch MTD-925-1303

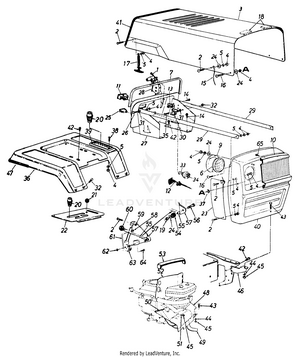

Parts18

...
...
1
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
2
Truss Mach. Scr. 1/4-20 x .5" MTD-710-0286
...
3
Hood MTD-13808
...
4
Hex Nut 1/4-20 Thd. MTD-912-0287
...
5
L-Wash. 1/4" I.D. MTD-936-0329
...
6
Head Light MTD-925-0222
...
7
Trim Strip 29" Lg. MTD-731-0511
...
9
Headlight Retainer MTD-09960
...
10
Bezel MTD-731-1062
...
11
Ammeter MTD-925-0925
...
12
Choke Control 44.0" Lg. MTD-946-0613A
...
13
Circuit Breaker MTD-753-0685
...
14
Hex Tap Scr. #10 x .5" Lg. MTD-710-0599
...
15
Hood Stop MTD-727-0199
...
16
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
17
Hood Latch Ass'y. MTD-723-0296
...
18
Foam Strip MTD-722-0157
...
19
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
20
Shift Knob MTD-720-0218
...
21
Ball Knob Brake MTD-720-0166
...
22
Transmission Cover MTD-17400
...
23
Grille Side Panel-R.H. MTD-14748A
...
xx
Grille Side Panel-L.H. (Not Shown) MTD-14749
...
24
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
25
Light Switch MTD-925-0634
...
26
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
27
Dash Panel Ass'y. MTD-16427
...
28
Throttle Control Box Ass'y. MTD-831-0823A
...
29
Grille Support Rod MTD-749-0651
...
30
Solenoid MTD-925-0771
...
31
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
32
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
33
Key MTD-925-0201
...
34
Ignition Switch MTD-925-0267B
...
35
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
36
Rear Fender MTD-17426
...
37
Rubber Washer MTD-735-0144
...
38
Truss Mach. Scr. 1/4-20 x .62" MTD-710-0946
...
39
INDEX BRACKET 7-SPEED MTD-931-1774
...
40
Grille Ass'y. MTD-17437
...
41
Trim Strip 30" Lg. MTD-731-0511
...
42
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
43
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
HEX NUT 5/16-18 MTD-712-3010
...
46
Grille Mtg. Bracket-R.H. MTD-13862
...
xx
Grille Mtg. Bracket-L.H. MTD-13863
...
47
Trim Strip 81" Lg. MTD-731-0511
...
48
Front Heat Shield MTD-16934
...
49
Muffler MTD-751-0474
...
50
Trim Strip 10" Lg. MTD-731-0511
...
51
Spec. L-Wash. 5/16" I.D. MTD-736-0170
...
52
Top Heat Shield MTD-14282B
...
53
PVC Foam MTD-722-0138
...
54
Rubber Washer .33" I.D. MTD-735-0126A
...
55
PTO Lever MTD-747-0513
...
56
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
57
Deck Clutch Control Brkt. MTD-13950A
...
58
PUSH NUT MTD-726-0106
...
59
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
60
Knob MTD-920-0232
...
61
Deck Control Rod MTD-747-0307
...
62
Hex Nut #10-24 Thd. MTD-712-0121
...
63
Safety Switch MTD-925-0465A
...
64
Truss Mach. Scr. #10-24 x .5" MTD-710-0473
...
65
SCREW-TRUSS MACH AB-TAPP #8 X MTD-710-0200
...
...
...
