MTD 148-843-000 (1988) Garden Tractor

Model: 148-843-000 (1988)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...

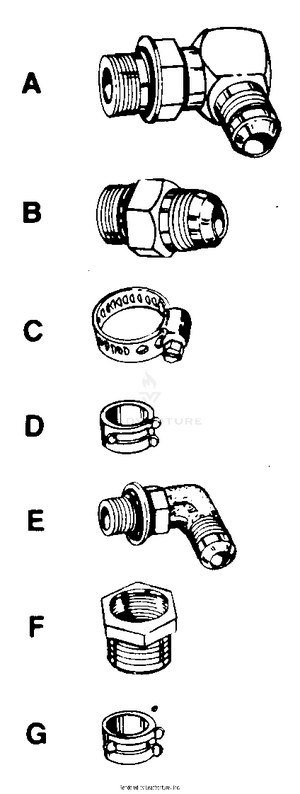

A
7.8-14 SAE Boss to 3/4-16 JIC. MTD-737-0205
...
B
Adapater-"O"-Ring, Boss to Male JIC. MTD-737-0204
...
C
Hose Clamp .406 Dia. [For Ref. No. 9 726-0232. Clamp Adj. 1.25 x .66 I.D. for Ref. No. 8] MTD-726-0207
...
D
Hose Clamp 3/8" Dia. MTD-726-0207
...
E
1/2-20 SAE Boss to 1/2-20 JIC. MTD-737-0206
...
F
Pipe Reducer 1/2-14 to 3/8-18 NPT MTD-727-0222
...
G
Hose Clamp .37 Dia. Finish-Green Paint MTD-726-0199
...
...
...
