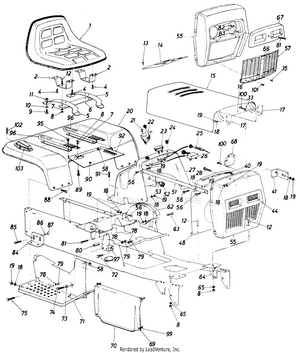

MTD 147-996-000 (1987) Garden Tractor

Model: 147-996-000 (1987)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Seat Ass'y. Comp. MTD-757-0318
...
2
Seat Support Brkt. MTD-14225
...
4
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
5
Seat Spring MTD-13123
...
6
Seat Support Plate MTD-13214
...
7
Lock Wash. 5/16" I.D. MTD-936-0119
...
8
HEX NUT 5/16-18 MTD-712-3010
...
9
Nylon Scr. 1/2-13 x .75" Lg. MTD-710-0689
...
10
Fl-Wash. .531 I.D. x .930 O.D. MTD-736-0160
...
11
Hex Lock Nut, 1/2-13 Thread MTD-912-0384
...
12
Hex Scr 5/16-18 x .75" Lg. MTD-710-0118
...
13
Self-Tap Oval Hd. Scr. 1/2" Lg. MTD-710-0697
...
14
Dash Panel Cover MTD-731-0568
...
15
Hood Ass'y. MTD-13772
...
16
Hinge Rod MTD-747-0231
...
17
Hood Hinge Ass'y. MTD-13581
...
18
L-Wash. 1/4" I.D. MTD-936-0329
...
19
Hex Nut 1/4-20 Thd. MTD-912-0287
...
20
Rear Fender MTD-13106
...
21
Fl-Hd. Truss Scr. #10 x .62" Lg. MTD-710-0721
...
22
Throttle Control MTD-746-0342
...
23
Ammeter MTD-925-3141
...
24
Bumper, Rubber MTD-735-0199A
...
25
Choke Control MTD-746-0343
...
26
Light Switch MTD-725-0670
...
27
Dash Panel MTD-731-0463
...
28
Hex Scr. 1/4-20 x .62" Lg. MTD-710-0258
...
xx
Hood Support Brkt. Ass y.-R.H. MTD-13689
...
33
Fl-Wash. .250 I.D. x 1.25 O.D. MTD-736-0211
...
35
UNKNOWN MTD-NA
...
xx
Hex Scr. 1/4-20 x .38" Lg. MTD-710-0294
...
40
Foam Strip MTD-722-0136
...
41
Heat Shield Brkt. MTD-13724
...
44
Head Light MTD-925-0222
...
48
Heat Shield MTD-13569
...
xx
Truss Mach. Scr. 1/4-20 x .75" Lg. MTD-710-0286
...
51
Grille Strap MTD-13725
...
52
Ignition Switch MTD-925-0267B
...
53
Key MTD-925-0201
...
55
Grille MTD-13200
...
56
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
57
Grille Screen MTD-731-0881
...
58
Clip-On Receptacle MTD-726-0169
...
62
Speed Control Guide MTD-13528
...
63
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
64
Frame Ass'y. MTD-13509
...
65
Bell-Wash. 5/16" Scr. MTD-736-0242
...
66
Moulding MTD-723-0337
...
67
Headlight Bezel MTD-731-0465
...
68
Headlight Retainer MTD-09960
...
69
1/4-Turn Stud MTD-726-0167
...
70
Hood Lower Side Panel MTD-13525
...
71
Foot Step Panel Ass'y.-R.H. MTD-13576
...
xx
Foot Step Panel Ass'y.-L.H. (Not Shown) MTD-13577
...
72
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
73
Fl-Wash. MTD-936-0117
...
74
HEX SCREW 3/8-16 x 3.00 GR2 MTD-710-0194
...
75
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
78
L-Wash. 3/8" I.D. MTD-736-0169
...
79
Hex Nut 3/8-16 Thd. MTD-712-0798
...
80
Spacer .375 I.D. x .62 O.D. x 2.00" Lg. MTD-750-0261
...
81
Truss Mach. Scr. #10-24 x 1.0" Lg. MTD-710-0467
...
82
Hex Nut #10-24 Thd. MTD-712-0121
...
83
Ext. L-Wash. #10 Scr. MTD-936-0147
...
84
Transaxle Support Brkt. MTD-13066
...
85
Rd. Hd. Rib Neck Scr. 3/8-24 MTD-710-0617
...
86
L-Wash. 3/8" Scr. MTD-736-0217
...
87
Hex Nut 3/8-24 Thd. MTD-712-0241
...
88
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
89
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
90
Snap Bushing MTD-731-0405
...
91
Fl-Hd. Self-Tap Scr. 1/4-20 x .62" Lg. MTD-710-0618
...
92
Transmission Cover MTD-13529
...
95
Hex Wash. Hd. Scr. 5/16-18 x .75" MTD-710-1260A
...
96
Seat Adjustment Brkt. MTD-13124
...
97
Dash Panel Mtg. Brkt. MTD-13536
...
99
Retainer MTD-726-0168
...
100
Thread Rolling Scr. 1/4" MTD-710-0599
...
101
Drive Scr. #7 MTD-728-0148
...
102
Counter Sunk Tap Screw #10 x .75" MTD-710-0841
...
103
Taillight MTD-725-0612
...
...
...
