MTD 140-842H000 (1990) Lawn Tractor

Model: 140-842H000 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

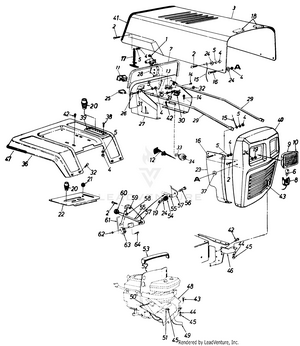

Style 2

...
...
1
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
2
Truss Mach. Scr. 1/4-20 x .5" Lg.* MTD-710-0286
...
3
Hood MTD-13808
...
4
Hex Nut 1/4-20 Thd. MTD-912-0287
...
5
L-Wash. 1/4" I.D. MTD-936-0329
...
6
Miniature Lamp 12V Socket Type MTD-925-0963
...
7
Trim Strip 29" Lg. MTD-731-0511
...
8
Headlight Socket MTD-925-1058A
...
9
Headlight Housing MTD-931-0705
...
10
HEADLAMP LENS MTD-931-0706
...
11
Ammeter MTD-925-0925
...
12
Choke Control 44.0" Lg. MTD-946-0613A
...
13
Circuit Breaker MTD-753-0685
...
14
Hex Tap Scr. #10 x .5 Lg. MTD-710-0599
...
15
Hood Stop MTD-727-0199
...
16
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
17
Hood Latch Ass'y. MTD-723-0296
...
18
Foam Strip MTD-722-0157
...
19
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
20
Shift Knob MTD-720-0218
...
21
Ball Knob Brake MTD-720-0166
...
22
Transmission Cover MTD-17400
...
23
Grille Side Panel R.H. MTD-16622
...
xx
Grille Side Panel L.H. (Not Shown) MTD-16621
...
24
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
25
Light Switch MTD-925-0634
...
26
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
27
Dash Panel Ass'y. MTD-16427
...
28
Throttle Control Box Ass'y. MTD-831-0823A
...
29
Grille Support Rod MTD-749-0720
...
30
Solenoid MTD-925-0771
...
31
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
32
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
33
Key MTD-925-0201
...
34
Ignition Switch MTD-925-0267B
...
35
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
36
Rear Fender MTD-17426
...
37
Rubber Washer MTD-735-0144
...
38
Truss Mach. Scr. 1/4-20 x .62" Lg. MTD-710-0946
...
39
INDEX BRACKET 7-SPEED MTD-931-1774
...
40
Grille MTD-17026
...
41
Trim Strip 30n Lg. MTD-731-0511
...
42
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
43
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
HEX NUT 5/16-18 MTD-712-3010
...
46
Grille Mtg. Bracket R.H. MTD-17004
...
xx
Grille Mtg. Bracket L.H. MTD-17005
...
47
Trim Strip 81" Lg. MTD-731-0511
...
48
Front Heat Shield MTD-16934
...
49
Muffler MTD-751-0474
...
50
Trim Strip 10" Lg. MTD-731-0511
...
51
Spec. L-Wash. 5/16" I.D. MTD-736-0170
...
52
Top Heat Shield MTD-14282B
...
53
PVC Foam MTD-722-0138
...
54
Rubber Washer .33" I.D. MTD-735-0126A
...
55
PTO Lever MTD-747-0513
...
56
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
57
Deck Clutch Control Brkt. MTD-13950A
...
58
PUSH NUT MTD-726-0106
...
59
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
60
Knob MTD-920-0232
...
61
Deck Control Rod MTD-747-0307
...
62
Hex Nut #10-24 Thd. MTD-712-0121
...
63
Safety Switch MTD-925-0465A
...
64
Truss Mach. Scr. #10-24 x .5"Lg. MTD-710-0473
...
...
...
