MTD 137-746-000 (1987) Lawn Tractor

Model: 137-746-000 (1987)

Save
 Part Not Listed?Part Not Listed?
product name

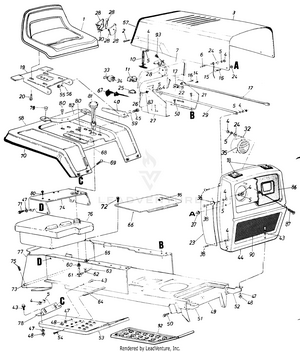

Parts

...
...
1
Seat Assembly MTD-757-0336
...
2
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
3
Hood MTD-13808
...
4
Hex Nut 1/4-20 Thd. MTD-912-0287
...
5
L-Wash. 1/4" I.D. MTD-936-0329
...
6
Truss Mach. Scr. 1/4-20 x .50" Lg.* MTD-710-0286
...
7
Vinyl Molding Strip-29" MTD-731-0511
...
10
Hood Latch Ass'y. MTD-723-0296
...
11
Ammeter MTD-925-0925
...
13
Circuit Breaker MTD-753-0685
...
14
Hex Tap Scr. #10 x .50" Lg. MTD-710-0351
...
15
Hood Stop MTD-727-0199
...
16
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
17
Grille Positioning Rod MTD-749-0651
...
18
PVC Foam Strip 1/2 x 1.00" x 2.00" Lg. MTD-722-0157
...
19
Seat Pivot Bracket MTD-783-0039A
...
20
Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg. MTD-710-0623
...
21
Hex Thd. Rolling Scr. 1/4" x .50" Lg. MTD-710-0599
...
22
Speed Nut #10Z MTD-712-0344
...
23
Grille Side Panel-R.H. MTD-14748
...
xx
Grille Side Panel-L.H. (Not Shown) MTD-14749
...
24
Fl-Wash. 1/4" I.D. MTD-736-0173
...
25
Light Switch MTD-925-0634
...
26
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
27
Dash Panel Ass'y. MTD-16427
...
28
Throttle Control Box Ass'y. MTD-831-0823A
...
29
Grille Positioning Rod MTD-749-0651
...
30
Throttle Control Wire MTD-946-0503
...
xx
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
32
Head Lamp Retainer MTD-09960
...
33
Key MTD-925-0201
...
34
Ignition Switch MTD-925-0267B
...
35
Head Light MTD-925-0222
...
36
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
37
Rubber Wash. .50" I.D. x 1.00 O.D. x .25 Thk. MTD-735-0144
...
38
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
40
Seat Bracket-L.H. MTD-15803
...
43
Hex Scr. 5/16-18 x .75" Lg. MTD-710-0118
...
44
Grille Ass'y. MTD-13800
...
45
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
xx
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
47
Lock Wash. 5/16" I.D. MTD-936-0119
...
48
HEX NUT 5/16-18 MTD-712-3010
...
49
Lower Frame Ass'y. MTD-13820
...
50
Hex Thd. Rolling Scr. 5/16" x.75" Lg. MTD-710-0726
...
51
Grille Mount Brkt.-R.H. MTD-13862
...
52
Grille Mount Brkt.-L.H. MTD-13863
...
53
Running Board-R.H. MTD-13828
...
xx
Running Board-L.H. (Not Shown) MTD-13827
...
54
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
55
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
56
Bell-Wash. .34" I.D. x .88 O.D. MTD-736-0242
...
57
Vinyl Moulding Strip-30" MTD-731-0511
...
58
Fender Ass'y. MTD-15886
...
59
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
60
BUSHING (Gas Tank) MTD-935-0149
...
61
90ø Nipple MTD-751-3054
...
62
Hose Clamp 3/8" MTD-726-0207
...
63
Fuel Line MTD-751-10349-16
...
64
Running Board Rod MTD-738-0435
...
65
Speed Nut #10-24 MTD-712-0147
...
66
Transmission Cover Ass'y. MTD-17150
...
67
Choke Control 44.0" Lg. MTD-946-0613A
...
68
Seat Bracket-R.H. MTD-15802
...
69
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
70
Trim Strip-81" Lg. MTD-731-0511
...
71
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
72
Truss Hd. Scr. #10 x .50" Lg. MTD-710-0351
...
73
Hitch Rod MTD-738-0482
...
74
Seat Mounting Channel MTD-15849
...
75
Internal Cotter Pin MTD-714-0147
...
76
Gas Tank MTD-751-0367
...
77
Hitch Plate MTD-13813
...
78
Fender Brkt.-R.H. MTD-15846
...
xx
Fender Brkt.-L.H. (Not Shown) MTD-15847
...
79
Grommet MTD-731-0555
...
80
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0607
...
81
Gas Gauge MTD-751-0370
...
82
Seat Spring MTD-732-0431
...
83
External Wash. 1/4" I.D. MTD-736-0222
...
86
Headlight Bezel MTD-731-0465
...
87
Hex Wash. Hd. F-Tap Scr. #8-32 x .38" Lg. MTD-710-0148
...
90
Grille Screen MTD-731-0881
...
92
Foot Pad MTD-731-0755
...
93
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
95
Snap Bushing MTD-731-0405
...
xx
Reflectors-Fender MTD-730-0116
...
...
...
