MTD 137-666-000 (1987) Lawn Tractor

Model: 137-666-000 (1987)

Save
 Part Not Listed?Part Not Listed?
product name

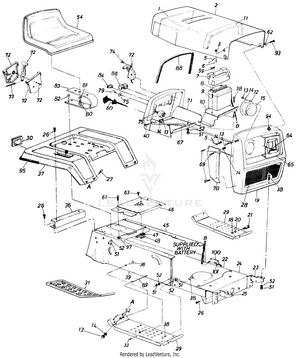

Parts

...
...
1
Hood Spring MTD-732-0477
...
2
Hood MTD-16646
...
3
Hex Sems Nut #10-24 Thd. MTD-712-0272
...
4
Push Mount Cable Tie MTD-926-0154
...
5
Hood Stop 7" Lg. MTD-723-0302
...
6
Truss Hd. Scr. #10-24 x '/2" MTD-710-0473
...
7
Battery Cover MTD-731-0707
...
8
12 Volt Battery MTD-725-0453
...
9
Battery Hold Down Rods MTD-911-0222A
...
10
Battery Bracket MTD-12747
...
11
PVC Foam-Strip MTD-722-0138
...
12
Headlight Retainer MTD-09960
...
13
Hex Nut 1/4-20 Thd. MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Head Light MTD-925-0222
...
18
Hex Nut 3/8-16 Thd. MTD-712-0798
...
19
Grille ,Ass'y. MTD-14781
...
20
L-Wash. 3/8" I.D.* MTD-736-0169
...
21
Shld. Bolt .50" Dia. x .84 MTD-738-0145
...
22
Lower Frame MTD-14606
...
23
Grille Mount Brkt.-L.H. MTD-13863
...
24
Front Pivot Brkt. MTD-14619
...
25
Grille Mount Brkt.-R.H. MTD-13862
...
26
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
27
Carriage Bolt 1/4-20 x 2.00" Lg. MTD-710-0495
...
28
Grille Insert MTD-731-0881
...
29
Running Board (R.H. & L.H.) MTD-14604
...
30
Reflector MTD-730-0116
...
31
Foot Pad MTD-731-0753
...
33
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
36
Fender Mount Brace MTD-15848
...
37
Fender MTD-16221
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
R.H. Side Frame MTD-14602G-0637
...
40
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
xx
Foam Strip MTD-722-0157
...
45
L.H. Side Frame MTD-14603
...
46
Shift Cover MTD-16433
...
47
Reverse Safety Switch MTD-725-0759
...
48
Insulatop Nut Plate MTD-926-0320
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
54
Seat Ass'y. MTD-757-0318
...
59
Wing Nut 1/4-20 Thd. MTD-912-0113
...
60
Choke Control 44.0" Lg. MTD-946-0613A
...
61
Truss Mach. Tap Scr. #10 x .50" Lg. MTD-710-0351
...
62
Washer .39" I.D. x .62" O.D. MTD-736-0413
...
63
Hex Wash. Hd. AB-Tap Scr. #8 x .50 MTD-710-0227
...
64
Truss Hd. Scr. #10-24 x .38" Lg. MTD-710-0148
...
65
Bezel MTD-731-0465
...
67
Grille Support Rod-L.H. MTD-749-0673
...
xx
Grille Support Rod-R.H. MTD-749-0674
...
69
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
70
R.H.-Grille Side Panel MTD-14748
...
xx
L.H.-Grille Side Panel MTD-14749
...
71
Dash Panel Ass'y. MTD-16184
...
72
Throttle Control Box Ass'y. MTD-831-0823A
...
73
Throttle Wire MTD-946-0634
...
74
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
75
Ignition Switch MTD-925-0267B
...
79
Key MTD-925-0201
...
80
Hex Bolt 1/2-13 x 1.00" Lg. (Grade 5) MTD-710-0865
...
81
L-Wash. 1/2" I.D. MTD-736-0921
...
82
Hex Bolt 5/16-18 x 1.00" Lg. MTD-710-0376
...
83
Seat Spring 5.5" High MTD-732-0458
...
84
Light Switch MTD-925-0634
...
86
Ammeter MTD-925-0925
...
88
Molding Strip 27" Lg. MTD-731-0511
...
89
Running Board Rod MTD-738-0526
...
93
Shoulder Bolt, .375 x .125 MTD-938-0952A
...
94
L-Nut 1/4-28 Thd. MTD-712-0380
...
95
Trim Strip 31.0" Lg. MTD-731-0511
...
97
Speed Nut #10Z MTD-726-0139
...
100
Brake Cable Bracket MTD-16371
...
101
Cable Tie MTD-726-0197
...
...
...
