MTD 135-666-000 (1985) Lawn Tractor

Model: 135-666-000 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

Electrical

...
...
1
Circuit Breaker MTD-753-0685
...
2
Spring-Switch (Reverse Safety) MTD-725-0759
...
3
Electric Wire (Red-Positive) MTD-725-0150
...
4
Ground Wire 9.0" Lg. (Black-Negative) MTD-725-0975
...
5
Battery 12V MTD-753-0607
...
6
Safety Switch (Clutch) MTD-725-0577
...
7
Safety Switch (P.T.O.) MTD-725-0803B
...
8
Ammeter MTD-925-0925
...
9
Light Switch MTD-925-0634
...
10
Key MTD-925-0201
...
11
Ignition Switch MTD-925-0267B
...
12
Tab Receptacle MTD-725-0717
...
13
Ground Wire 7.25" Lg. (Black-Engine) MTD-725-0976
...
14
Ground Wire MTD-725-0916A
...
15
HEADLAMP LENS MTD-931-0706
...
16
Headlight Housing MTD-931-0705
...
17
Miniature Lamp 12V Socket Type MTD-925-0963
...
18
Headlight Socket MTD-925-1058A
...
19
Wire Harness MTD-725-0941
...
20
Solenoid MTD-925-0771

Electrical

...
...

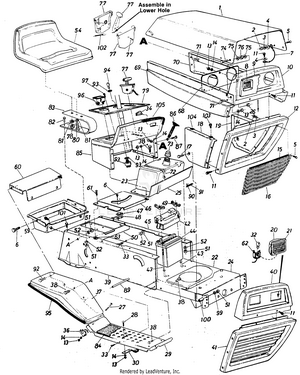

1
Hood MTD-12780
...
2
Hex Nut #10-24 Thd. MTD-712-0121
...
3
L-Wash. #10 I.D. MTD-736-0722
...
4
Fl-Wash. .25" I.D. x .62"O.D. MTD-736-0463
...
5
Truss Scr. #10-24 x .375" MTD-710-0192
...
6
Truss Hd. Scr. #10-24 x .50" Lg.* MTD-710-0473
...
7
Hood Stop MTD-727-0199
...
8
Head Light MTD-925-0222
...
9
Headlight Bezel MTD-12787
...
10
Front Grille Upper Ass'y. MTD-12814
...
11
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
12
Lower Grille MTD-12781
...
13
Hex Nut 1/4-20 Thd. MTD-912-0287
...
14
L-Wash. 1/4" I.D. MTD-936-0329
...
15
Vinyl "U"-Channel MTD-731-0144
...
16
Grille Screen MTD-12791
...
17
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
18
R.H. Lower Side Panel MTD-15544
...
19
L.H. Lower Side Panel MTD-15545
...
20
Headlight Housing MTD-931-0705
...
21
HEADLAMP LENS MTD-931-0706
...
22
Lower Frame MTD-14606
...
23
Fuel Tank MTD-753-0503
...
24
Front Pivot Brkt. MTD-14619
...
25
Fuel Tank Support MTD-14603
...
26
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
27
Truss Hd. Scr. 1/4-20 x 1.75"* MTD-710-0524
...
28
Carriage Bolt 1/4-20 x .62"* MTD-710-0134
...
29
Running Board (R.H. & L.H.) MTD-14604
...
30
Blade Brake Ass'y. (Refer to Deck Breakdown) MTD-NA
...
32
Miniature Lamp 12V Socket Type MTD-925-0963
...
33
Truss Mach. Scr. 5/16-18 x .75" Lg.* MTD-710-0323
...
34
Light Switch MTD-925-0634
...
36
Fender Clamp MTD-14671
...
37
Fender (R.H. & L.H.) MTD-14666
...
xx
Fender (R.H. & L.H.) Used w/36" Rear Discharge Deck MTD-15350
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
39
R.H. Side Frame MTD-14602G-0637
...
40
Front Upper Grille Ass'y. MTD-15871
...
41
Lower Grille MTD-15872
...
42
Battery Cover MTD-731-0708
...
43
Battery Hold Down Rods MTD-911-0222A
...
44
Battery 12V MTD-753-0607
...
45
L.H. Side Frame MTD-14603
...
46
Transmission Panel (5 Speed) MTD-15824
...
xx
Transmission Panel (3 Speed) MTD-16413
...
47
Reverse Safety Switch MTD-725-0759
...
48
Insulatop Nut Plate MTD-926-0320
...
49
Wing Nut 1/4-20 Thd. MTD-912-0113
...
50
Hitch Plate MTD-14607
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
54
Seat Ass'y. (used w/Hex Nut) MTD-757-0264
...
xx
Seat Ass'y. (used w/Hex Bolts) MTD-757-0299
...
59
Tool Tray (Optional) MTD-731-0561
...
60
Fender Panel (Optional) MTD-14789
...
61
Truss Mach. Tap Screw #10 x .50" MTD-710-0351
...
62
Miniature Lamp 12V Socket Type MTD-925-0963
...
63
Speed Nut #10Z MTD-726-0139
...
68
Head Lamp Retainer MTD-12788
...
69
Side Panel-R.H. MTD-12784
...
70
Side Panel-L.H. MTD-12785
...
71
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
72
Cable Tie MTD-726-0230
...
73
Fuel Cap Gauge MTD-723-0333
...
74
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
75
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
76
Rubber Washer .33" I.D. MTD-735-0126A
...
77
Throttle Control Box Ass'y. MTD-831-0796A
...
78
HEX NUT (Optional) MTD-712-0206
...
79
Dash Panel Insert MTD-731-0709
...
80
Hex Bolt 1/2-13 x 1.00" Lg. (Optional) MTD-710-3131
...
81
L-Wash. 1/2" I.D. MTD-736-0921
...
82
Hex Bolt 5/16-18 x 1.00"* MTD-710-0376
...
83
Seat Spring MTD-732-0458
...
84
Foot Pad (Optional) MTD-723-0360
...
85
Dash Panel Ass'y. MTD-15895
...
86
Hood Latch Ass'y. MTD-723-0296
...
87
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
89
Running Board Rod MTD-738-0526
...
90
Hose Clamp MTD-726-0207
...
91
Fuel Line MTD-751-10349-16
...
92
Thread Rolling Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
93
Ignition Switch MTD-925-0267B
...
94
Key MTD-925-0201
...
95
TRIM STRIP MTD-731-0511
...
96
Ammeter (Optional) MTD-925-0925
...
97
Hex "AB"-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
99
Belleville Wash. .34" I.D. MTD-736-0242
...
100
Spacer.344" I.D. x 1.0" O.D. x .75" Lg. MTD-22550
...
101
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
102
Throttle Control Wire (B&S) MTD-746-0505
...
xx
Throttle Control Wire (Tec.) MTD-746-0504
...
103
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
104
Speed Nut #10Z MTD-726-0139
...
105
Trim Strip-15" MTD-757-0272

Electrical

...
...
1
Circuit Breaker MTD-753-0685
...
2
Spring Switch (Reverse Safety) MTD-725-0759
...
3
Ground Wire (Black- Negative) MTD-725-0975
...
4
Battery 12V MTD-753-0607
...
5
Ammeter MTD-925-0925
...
6
Light Switch MTD-925-0634
...
7
Key MTD-925-0201
...
8
Ignition Switch MTD-925-0267B
...
9
Safety Switch-Black N.O. (Clutch) MTD-925-0268
...
10
Ground Wire 7.25" Lg. (Black-Engine) MTD-725-0976
...
11
Tab Receptacle MTD-725-0717
...
12
Headlight Housing MTD-931-0705
...
13
HEADLAMP LENS MTD-931-0706
...
14
Ground Wire MTD-725-0916A
...
15
Miniature Lamp 12V Socket Type MTD-925-0963
...
16
Headlight Socket MTD-925-1058A
...
17
Wire Harness MTD-725-1007
...
18
Safety Switch (P.T.O.) MTD-725-0803B
...
19
Solenoid MTD-925-0771
...
20
Electric Wire (Red-Positive) MTD-725-0150
...
...
...
