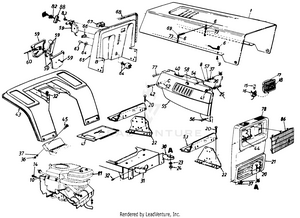

MTD 131-678-000 (Style 8) (1991) Lawn Tractor

Model: 131-678-000 (Style 8) (1991)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Hood MTD-16787A
...
2
Hex 8elt 1/4-20 x .88" Lg. MTD-710-0206
...
3
Washer.39" I.D. x .62" MTD-736-0413
...
6
Hex Sems Nut #10-24 Thd.* MTD-712-0272
...
8
Brake Cable 11.75" Lg. MTD-727-0290A
...
9
Truss Hd. Scr. #10-24 x 1/2"* MTD-710-0473
...
10
Baffle w/Trim Strip MTD-16804A
...
11
Engine MTD-NA
...
14
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
15
Miniature Lamp 12V Socket Type MTD-925-0963
...
16
Headlight Socket MTD-925-1058A
...
17
Headlight Housing MTD-931-0705
...
18
HEADLAMP LENS (Optional Part) MTD-931-0706
...
20
Hex Bolt 5/16-18 x .75" Lg.* MTD-710-0118
...
21
Grille MTD-15806B
...
xx
Grille-Used w/Headlight Bezel MTD-16456B
...
22
Dash Support Bracket MTD-17300D
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
HEX NUT 5/16-18 MTD-712-3010
...
25
Shld. Spacer MTD-738-0759
...
30
Grille Mount Brkt.-L.H. MTD-15821
...
31
Grille Mount Brkt.-R.H. MTD-15822
...
32
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
36
Hex Nut 1/4-20 Thd. MTD-912-0287
...
37
L-Wash. 1/4" I.D. MTD-936-0329
...
40
Trim Strip-12" Lg. MTD-731-0511-12
...
41
Acron Nut 1/4-20 Thd. MTD-712-0264
...
42
Hex TT-Tap Scr. 1/4-20 x 1.75" Lg. MTD-710-1026
...
43
Fender MTD-17870C
...
44
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
45
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
47
Shift Cover w/Cutout MTD-17954B-0637
...
52
Spacer 1.30" Lg. MTD-750-0583
...
53
Support Brkt. MTD-17633
...
54
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
55
Side Panel Assembly-R.H. MTD-16725
...
xx
Side Panel Assembly-L.H. (Not Shown) MTD-17309B
...
56
Truss Mach. Scr. 1/4-20 x .50" Lg.* MTD-710-0286
...
57
Fl-Wash. .281" I.D. x .73" O.D. MTD-736-0173
...
58
Mounting Clamp MTD-726-0152
...
59
Throttle Control Box Ass'y. MTD-831-0823A
...
60
Throttle Wire MTD-946-0634
...
63
Key MTD-925-0201
...
64
Ignition Switch MTD-925-0267B
...
65
Dash Panel MTD-17295
...
66
Light Switch MTD-925-0634
...
67
Ammeter MTD-925-0925
...
68
Trim Strip-31" MTD-731-0511-31
...
69
Hood Spring MTD-732-0462
...
73
Hex Screw, #10-24 x 1.00 MTD-910-0749
...
77
Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg. MTD-710-0642
...
78
Foam Strip 3/8 x 1-1/8" x 1-1/2 Lg. MTD-722-0157
...
82
Choke Control 44.0" Lg. MTD-946-0613A
...
83
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
86
Headlight Bezel (Optional Part) MTD-731-0967
...
88
Retainer Clip MTD-17782
...
...
...
