MTD 130-500-000 (1990) Lawn Tractor

Model: 130-500-000 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

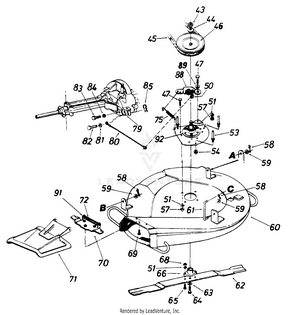

26" Side Discharge Mowing Deck

...
...
43
Hex Jam Nut 5/8-18 Thd. MTD-712-0318
...
44
Bell-Wash. 63" I.D. x 1.25" O.D. MTD-736-0317
...
45
V-Belt 1/2 " x 52" Lg. MTD-954-0264
...
46
1/2" V-Pulley .625" I.D. x 6.0" O.D. MTD-756-0485
...
47
Hex Bolt 5/16-18 x .75" MTD-710-0118
...
50
PUSH NUT MTD-726-0106
...
51
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
Stud 3/8-16 x 3.00" Lg. MTD-711-0780
...
54
Jam Nut, 3/8-16 MTD-912-3008
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Intern. Cotter Pin 1/2 Dia. MTD-714-0145
...
59
Fl-Wash. 385n I.D. x 87" MTD-736-0300
...
60
26" Deck Ass'y. MTD-16498
...
61
Deck Link 3.9" Lg. MTD-747-0428
...
62
26n High Lift Blade MTD-742-0255
...
63
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
64
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
65
Hex Bolt Spec. 5/16-24 x 1.0" Lg. MTD-710-0888
...
66
Blade Adapter MTD-748-0300
...
68
Hex Nut 5/16-24 Thd. MTD-912-3057
...
69
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599
...
70
Adapter Plate-Chute MTD-11396
...
71
Chute Cover Ass'y. Comp. MTD-11634
...
72
Torsion Spring MTD-732-0261
...
75
Extension Spring 825" Lg. MTD-732-0157
...
79
Lower Inside Belt Guard MTD-15625
...
80
Brake Cable 11.75" Lg. MTD-727-0290A
...
81
Fl-Wash. .281" I.D. x .50" MTD-736-0142
...
82
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
83
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
84
L-Wash. 1/4" I.D. MTD-936-0329
...
85
Intern. Cot.-Pin 5/16" Dia. MTD-714-0104
...
88
Blade Brake Brkt. Ass'y. MTD-16053
...
89
Shld. Spacer .27" Lg. MTD-748-0234
...
91
Hinge Pin MTD-711-0571
...
92
Blade Spindle Ass'y. Comp. MTD-717-0915

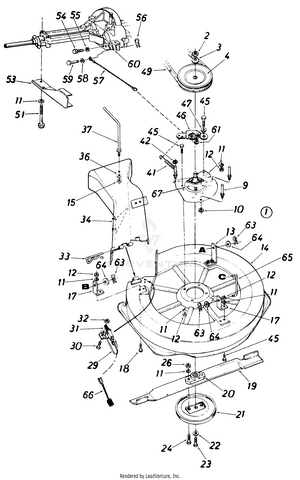

30" Rear Discharge Mowing Deck

...
...
1
30" R.D. Deck Ass'y. Comp. (Service Only) MTD-16760
...
2
Hex Jam Nut 5/8-18 Thd. MTD-712-0318
...
3
Bell-Wash. .630" I.D. x 1.25" MTD-736-0317
...
4
5/8 V-Pulley .75" I.D. x .7" MTD-756-0430
...
9
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
10
Jam Nut, 3/8-16 MTD-912-3008
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Hanger Brkt. 3.25" MTD-16706
...
14
30" R.D. Deck Ass'y. MTD-15906
...
15
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
17
Hanger Brkt. 2.25 MTD-16705
...
18
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
19
30" High Lift Blade MTD-742-0280
...
20
Blade Adapter MTD-748-0300
...
21
Scalp Plate (Optional) MTD-07919
...
22
L-Wash. 3/8" I.D. MTD-736-0169
...
23
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
24
Hex Bolt 5/16-24 x 1.0" Lg. MTD-710-0888
...
26
Hex Nut 5/16-24 Thd. MTD-912-3057
...
29
Electrical Wire MTD-725-0765
...
30
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
31
Safety Switch MTD-725-0269
...
32
Hex Nut 1/4-20 Thd. MTD-912-0287
...
33
Internal Cotter Pin MTD-714-0174
...
34
R.D. Chute Deflector MTD-96094A
...
36
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
37
90ø Rod 5/16-18 Thd. MTD-747-0474
...
41
Extension Spring MTD-732-0157
...
42
Push Speed Nut MTD-726-0201
...
45
Hex Bolt 5/16-18 x .75 MTD-710-0118
...
46
Blade Brake Brkt. Ass'y. MTD-16053
...
47
Shoulder Spacer .500" Dia. MTD-748-0234
...
49
V-Belt 1/2 " x 52" Lg. MTD-954-0264
...
51
Hex Bolt 5/16-18 x 2.75" MTD-710-0176
...
53
Lower Outside Belt Guard MTD-15625B
...
54
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
55
L-Wash. 1/4" I.D. MTD-936-0329
...
56
Int. Cot. Pin 5/16" Dia. MTD-714-0104
...
57
Brake Cable 11.75" Lg. MTD-727-0290A
...
58
Fl-Wash. .281" I.D. x .50 MTD-736-0142
...
59
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
60
Lower Inside Belt Guard MTD-15626B-0637
...
61
PUSH NUT MTD-726-0106
...
63
Int. Cotter Pin 1/2" Dia. MTD-714-0145
...
64
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
65
Deck Link 3.9" Lg. MTD-747-0428
...
66
Wire Lead MTD-725-1037
...
67
Blade Spindle Ass'y. Comp. MTD-717-0916
...
...
...
