MTD 128-288B000 (1988) Self Propelled Mower

Model: 128-288B000 (1988)

Save
 Part Not Listed?Part Not Listed?
product name

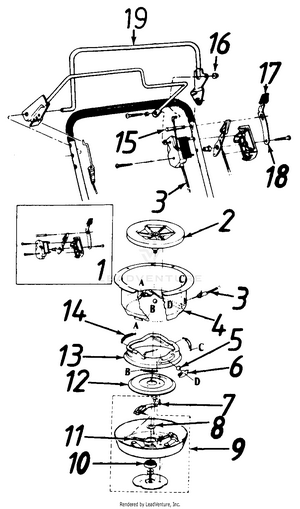

Parts01

...
...
1
Kit-Control Housing Comp. MTD-753-0431
...
2
Fan Adapter MTD-719-0256
...
3
Clutch Cable MTD-746-0402A
...
4
Clutch Housing MTD-14307
...
5
Steel Ball MTD-741-0326
...
6
Ball Block MTD-731-0520
...
7
Hex Tap Scr. 1/4-20 x .75" MTD-710-0875
...
8
Fl-Wash. .69" I.D. x 1.06" MTD-736-0333
...
9
Clutch Blade Housing Ass'y. MTD-14300
...
10
BALL BEARING MTD-941-0600
...
11
Compression Spring MTD-732-0396
...
12
Clutching Cone MTD-14304
...
13
Brake Cup Cone MTD-14305
...
14
Extension Spring MTD-732-0397
...
15
Lock Pin MTD-731-0607
...
16
Push Cap MTD-726-0245
...
17
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
18
Lockout Lever MTD-732-0401
...
19
Control Handle MTD-16391
...
...
...
