MTD 128-176B401 (1988) Self Propelled Mower

Model: 128-176B401 (1988)

Save
Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
FOAM GRIP - 9" MTD-720-0294A

...

...
2
Control Handle Ass'y.-L.H. MTD-16739

...
3
Top Discharge Chute Ass'y. (Top Discharge Model 176B only) MTD-731-0734

...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796

...
5
Lockout Spring MTD-732-0401

...
6
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
7
Control Panel Half MTD-731-0817

...
8
Control Disc Pin MTD-731-0524

...
9
Clutch Panel Half MTD-731-0816

...
10
Throttle Control Lever MTD-931-0972

...
11
Hub Cap MTD-NA

...
xx
Black Hub Cap MTD-731-0354

...
xx

...
xx

...
12
Lock Pin .314" Dia. x 1.75" MTD-731-0607

...
13
Cotter Pin 3/32" Dia. x .75" MTD-714-0507

...
14
Upper Handle-Chrome MTD-749-0437

...
xx
Upper Handle MTD-749-0439E-0637

...
15
Panel Support Brkt. (Top Discharge Model 176B only) MTD-16129A-0637

...
16
Top Catcher Panel Ass'y. (Top Discharge Model 176B only) MTD-17196

...
17
Top Discharge Door (Top Discharge Model 176B only) MTD-17095

...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429

...
19
Torsion Spring (Top Discharge Model 176B only) MTD-732-0483A

...
20
Pivot Pin (Top Discharge Model 176B only) MTD-747-0514

...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134

...
22
Truss Mach. Scr. 1/4-20 x .5" Lg. (Top Discharge Model 176B only) MTD-710-0286

...
23
Hex Bolt 1/4-20 x .50" Lg. (Top Discharge Model 176B only) MTD-910-0289

...
24
Shoulder Bolt .312 Dia. x .18 Lg. Special MTD-738-0704

...
25
Hex Bolt 1/4-20 x .62" Lg. (Top Discharge Model 176B only) MTD-710-0258

...
26
Hex Nut 1/4-20 Thd. MTD-912-0287

...
27
SPRING WASHER BELL MTD-736-0270

...
28
L-Wash. 1/4" I.D. MTD-936-0329

...
29
Front Grass Catcher Frame (Top Discharge Model 176B only) MTD-16702

...
30
Grass Catcher Handle (Top Discharge Model 176B only) MTD-731-0801

...
31
S.P. Control Cover MTD-731-0619

...
32
Spark Plug Insulator MTD-735-0639

...
33

...
34
Throttle Wire-58" Lg. MTD-946-0674A

...
35
Lower Handle MTD-749-0907B

...
xx
Lower Handle MTD-749-0907B

...
36
Engine MTD-NA

...
38
21" Top Discharge Grass Bag-Black (Top Discharge Model 176B only) MTD-764-0212

...
xx
21" Top Discharge Grass Bag-Grey (Top Discharge Model 176B only) MTD-764-0216

...
39
Retaining Strip MTD-14835

...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204

...
42
Chain - Axle Ass'y. MTD-17055B

...
43
Hex B-Tap Scr. 1/4" x .38" Lg. MTD-710-0352

...
44
Fl-Ball Brg. 1/2" I.D. MTD-941-0180

...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896

...
46
Upper Bag Handle (Top Discharge Model 176B only) MTD-747-0495

...
47
Hex L-Nut 3/8-24 Thd. MTD-912-0296

...
48
#48 Chain .500" Pitch x 30 Links MTD-713-0353

...
49
Hex L-Nut 1/2-20 Thd. MTD-712-0346

...

...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0672A

...
52
Cable Tie MTD-725-0157

...
53
Hex Nut 3/8-24 Thd. MTD-712-0241

...
54
Hex AB-Tap Scr. #12 x 1.0" Lg. MTD-710-0969

...
56
21" Blade MTD-942-0621

...
58
Bell-Wash. .46" I.D. x .88" O.D. MTD-736-0412

...
59
Height Adj. Rod 19.42" Ig. MTD-747-0510

...
60
Hex Bolt 7/16-20 x 2.0" Lg. (Grade 5) MTD-710-1002

...
61
Spacer .513" I.D. x .703" O.D. x .69" Lg. MTD-748-0190

...
62
L-Wash. 3/8" I.D. MTD-736-0169

...
63
Lock Wash. 5/16" I.D. MTD-936-0119

...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-16136

...
65
L.H. Handle Wheel Brkt. Ass'y. MTD-16137

...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A

...
67
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. MTD-710-0603

...
68
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.5" Lg. MTD-710-1007

...
69
HEX NUT 5/16-18 MTD-712-3010

...

...
71
Height Adj. Lever MTD-732-0473B

...
72
Extension Spring .50" O.D. x 3.80" Lg. MTD-732-0481

...
73
Bell-Wash. 5/16" I.D. MTD-736-0242

...
74
Spacer .385" I.D. x .502" O.D. x .270" Lg. MTD-750-0526

...
75
Shld. Spacer .500" Dia. x .1 00 MTD-750-0624

...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233

...
78
Instruction Label MTD-777-5815

...
79
Control Label MTD-777-5811

...
80
Shld. Scr. .342" Dia. x .268 MTD-738-0137

...
81

...
82
Wheel Ass'y. Comp. MTD-NA

...
xx
Waffle Tread (7 x 1.5) MTD-734-0922

...
xx
"S" Wave Tread (7 x 2.0) MTD-734-1511

...
xx
Gear Tread (8 x 1.75) MTD-734-1411

...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826

...
83
Flat Weld Nut 1/4-20 Thd. MTD-712-0189

...
84
Sleeve Bearing 1/2" I.D. MTD-741-0486

...
85
Pop Rivet .156" Dia. x .379" MTD-728-0171

...
86
Cable Bracket MTD-14924

...
87
Grass Catcher Locking Knob (Top Discharge Model 176B only) MTD-920-0224

...
88
Foam Strp 1" Lg. (Top Discharge Model 176B only) MTD-722-0134

...
89
Panel Clip (Top Discharge Model 176B only) MTD-731-0883

...
90
SPRING WASHER .317 X .625 X .020 (Top Discharge Model 176B only) MTD-936-0271

...
91
Hex Tap Scr. 1/4-20 x .75" Lg. MTD-710-0875

...
92
Clutch Blade Housing Ass'y. MTD-14300

...
93
BALL BEARING MTD-941-0600

...
94
Comp. Spring .35" O.D. x 2.0" Lg. MTD-732-0396

...
95
S.P. Cable x 50" Lg. MTD-946-0650

...
96

...
97
Clutch Cone MTD-14304

...
98
Casing Clamp MTD-12894

...
99
Ball Block MTD-731-0520

...
100
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651

...
101
Casing Clamp MTD-751-0463

...
102
21" Deck Ass'y. MTD-17075

...
103
Steel Ball .50" Dia. MTD-741-0326

...
104
Brake Cup Cone MTD-14305

...
105
Front Axle Ass'y. MTD-10662

...
106
Sleeve .526" I.D. x .690" O.D. x .880" Lg. MTD-711-0313

...
107
Ext. Spring 1.75" Lg. MTD-732-0397

...
108
Intern. Cotter Pin 5/16" Dia. MTD-714-0104

...
109
Extension Spring .50" O.D. x 3.20" Lg. MTD-732-0482

...
110
Clutch Housing MTD-14309

...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221

...
112
Shld. Bolt .623" Dia. x .425 MTD-938-0705

...
113
Wheel Ass'y. Comp. MTD-NA

...
xx
Waffle Tread (7 x 1.5) MTD-734-0922

...
xx
"S" Wave Tread (7 x 2.0) MTD-734-1511

...
xx
Gear Tread (8 x 1.75) MTD-734-1411

...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826

...
114
Control Cover Half-Upper MTD-731-0617A

...
115
Control Cover Half-Lower MTD-753-0833

...
116
Drive Control MTD-731-0620A

...
117
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841

...
121
Curved Carr. Bolt 5/16-18 x 1.38" Lg. MTD-710-0671

...
122
Fixed Pulley Adapter MTD-756-0504

...
123
Serrated Washer 1.0" I.D. MTD-936-0409

...
124
Serrated Pulley Half MTD-756-0503

...
125
Wave Washer MTD-736-0447

...
126
Flat HD Tap Scr. 1/4-20 x .625" Lg. MTD-710-0618

...
127
Flywheel MTD-748-0319

...
128
Flywheel Adapter MTD-748-0320

...
129
Control Cable-49" Lg. MTD-746-0406

...
130
Wheel Ratchet MTD-948-0318

...
131
Cotter Pin 1/8" Dia. x 1.00" Lg. MTD-714-0115

...
133
Side Chute Deflector Ass'y. MTD-731-0886

...
135
Kit-Control Housing Comp. MTD-753-0431

...
136
Spring - Nylon MTD-10622B

...
137
Engine Mounting Plate Cover MTD-17176

...
138
Chain Cover MTD-17053

...
140
Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg. MTD-710-0599

...
142
Fl-Wash. .510" I.D. x 1.0" O.D. MTD-736-0326

...
143
Hex Flange Brg. .506" I.D. MTD-741-0522

...
144
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300

...
147
Rear Shaft Ass'y. 21.94" Lg. MTD-738-0719

...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A

...
149
Fl-Wash. .531" I.D. x .9301' O.D. MTD-736-0160

...
150
Fl-Wash. .531" I.D. x 1.25" O.D. MTD-736-0179

...
151
Flanged Nyliner Brg. MTD-741-0491

...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
153
Transmission Comp. (See Breakdown) MTD-917-0417B

...
154
Hex Bearing Cup MTD-16500A-0637

...
155
Push Cap MTD-726-0245

...
156
Push Cap MTD-726-0135

...
157
Blade Brake Clutch Ass'y. Comp. MTD-717-0845

...
158
Pan Hd. Tap Scr. #12 x .50" Lg. MTD-710-0748

...
159
Hub Cap MTD-10647

...
xx
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324

...
161
Hex B-Tap Scr. #10 x .38" (Top Discharge Model 176B only) MTD-910-0429

...
162
Serrated Washer 1.0" I.D. MTD-736-0405

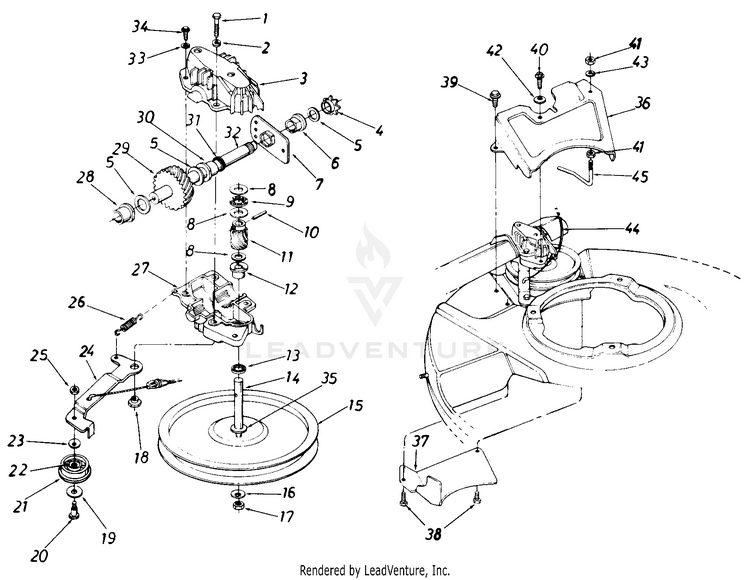

Parts

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106

...
2
L-Wash. 1/4" I.D. MTD-936-0329

...
3
Upper Hsg. Half MTD-717-0418A

...
4
#48 Sprocket 7 Tooth x 1/2 Pitch MTD-713-0400

...
5
FLAT WASHER MTD-936-0336

...
6
Hex Flange Brg. .631" I.D. MTD-741-0413

...
7
Hex Bearing Cup MTD-16500A-0637

...
8
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314

...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479

...
10
Spring Pin Spir. 1/8" x .62" Heavy MTD-715-0152

...
11
11 Tooth Helical Gear MTD-717-0420

...
12
Flange Bearing MTD-748-0208A

...
13
Oil Seal MTD-721-0212

...
14
Pulley-Transmission Shaft .375 O.D. MTD-753-0448

...
15
Fl-Pulley 5.06" O.D. MTD-756-0330A

...
16
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270

...
17
Jam Nut, 1/4-28, LH (Not Part of Transmission Complete) MTD-712-04326

...
18
Shld. Spacer .375" Dia. x .170 (Not Part of Transmission Complete) MTD-738-0440

...
19
Fl-Wash. .390" I.D. x 1.0" (Not Part of Transmission Complete) MTD-736-0344

...
20
Shld. Bolt .375" Dia. x .400" Lg. (Not Part of Transmission Complete) MTD-938-0691

...
21
Fl-Idler Plastic 1.50" Dia. x .48 (Not Part of Transmission Complete) MTD-753-0518

...
22
Needle Brg. .375" x .31 (Not Part of Transmission Complete) MTD-741-0482

...
23
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270

...
24
Idler Brk't. Assy. (Not Part of Transmission Complete) MTD-17052A

...
25
Hex Patch L-Nut 1/4-28 Thd. (Not Part of Transmission Complete) MTD-712-0138

...
26
Extension Spring .33 OD x 1.12 Lg. (Not Part of Transmission Complete) MTD-732-0357A

...
27
Lower Hsg. Half MTD-717-0419

...
28
Flange Bearing .566 ID MTD-941-0415

...
29
33 Tooth Helical Gear MTD-717-0422

...
30
Flange Bearing .629 Dia. MTD-741-0414

...
31
Oil Seal .625 Dia. MTD-721-0213

...
32
Gear Sprocket Shaft MTD-738-0607

...
33
L-Wash. #10 I.D. MTD-736-0722

...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651

...
35
Hex Washer .26" x .88" (Not Part of Transmission Complete) MTD-736-0410

...
36
Transmission Belt Guard (Not Part of Transmission Complete) MTD-17058A-0637

...
37
Belt Cover (Not Part of Transmission Complete) MTD-17065A-0637

...
38
Hex B-Tap Scr. 1/4 x .38" Lg. (Not Part of Transmission Complete) MTD-710-0352

...
39
Hex AB-Tap Scr. 1/4 x .50" Lg. (Not Part of Transmission Complete) MTD-710-0599

...
40
Hex B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896

...
41
Hex Nut 1/4-20 Thd. (Not Part of Transmission Complete) MTD-912-0287

...
42
SPRING WASHER BELL (Not Part of Transmission Complete) MTD-736-0270

...
43
L-Wash. 1/4" I.D. (Not Part of Transmission Complete) MTD-936-0329

...
44
S.P. Cable x 50" Lg. (Not Part of Transmission Complete) MTD-946-0650

...
45
S.P. Belt Guard (Not Part of Transmission Complete) MTD-747-0549

...
xx
Transmission Comp. MTD-917-0417B
...
...
...
