MTD 124-232A000 (1994) Self Propelled Mower

Model: 124-232A000 (1994)

Save
 Part Not Listed?Part Not Listed?
product name

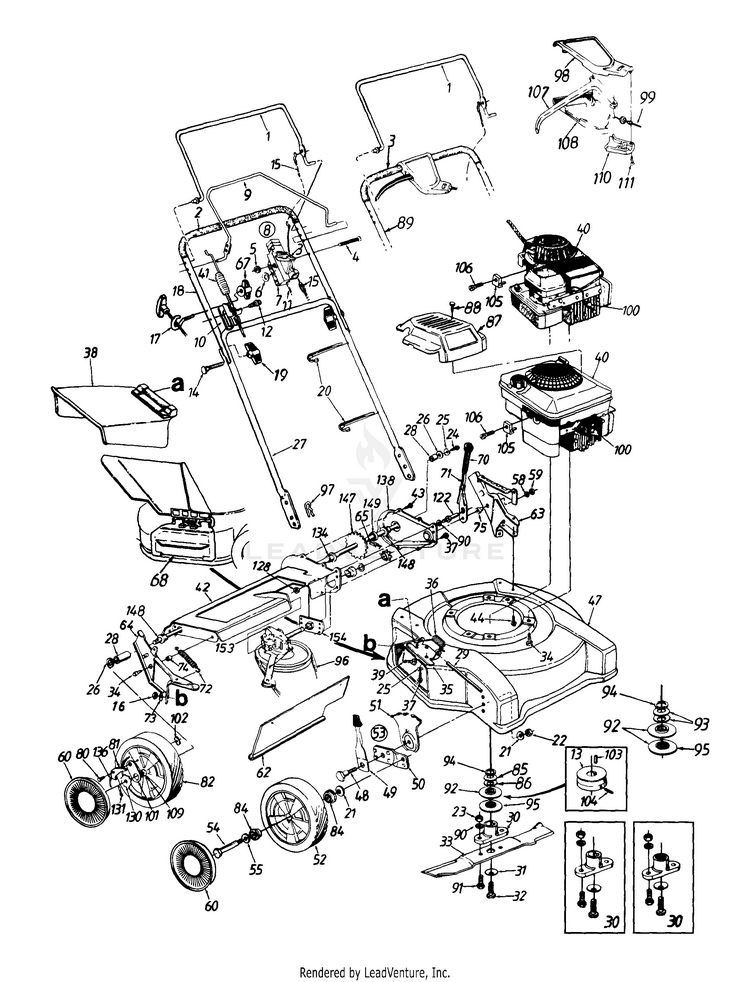

General Assembly

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
3
Throttle Lever MTD-946-0876
...
4
Oval C-Sunk Scr. MTD-710-0605
...
5
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
6
Curved Spring Wash. .66" I.D. MTD-936-0501
...
7
Throttle Body New Part MTD-946-0875
...
8
Throttle Box Comp. (Incl. Ref. 3, 4, 5, 6, 7) MTD-811-0185
...
9
S.P. Bail Ass'y. MTD-747-0854-0637
...
10
Cable Bracket MTD-16309A
...
11
Throttle Wire 55" Lg. MTD-946-0671A
...
xx
Throttle Cable MTD-946-1115
...
12
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
13
Keyed Pulley For model (232) MTD-756-0554
...
14
Curved Hd. Bolt 5/16-18 x 2" MTD-710-1174
...
15
Control Cable 39" MTD-946-0550
...
xx
Control Cable - 51" MTD-946-0737
...
16
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
17
Rope Guide MTD-710-1205
...
18
Upper Handle (Dual Bail) MTD-749-0538C
...
19
Hand Knob MTD-920-0276
...
20
Cable Tie MTD-725-0157
...
21
Bell-Wash .38" I.D. x .88" MTD-736-0105
...
22
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798
...
23
Hex Nut 3/8-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0241
...
24
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
25
SPRING WASHER BELL MTD-736-0270
...
26
Fl-Wash .531" I.D. x .93" MTD-736-0160
...
27
Lower Handle MTD-749-0928A-0637
...
28
Spacer .513" I.D. x .703" MTD-748-0190
...
29
Hinge Pin MTD-747-0710A
...
30
Blade Adapter Kit (Keyed) MTD-753-0484
...
xx
Blade Adapter Kit (Splined) MTD-753-0485
...
31
Bell-Wash .39" I.D. (Keyed) MTD-736-0452
...
xx
Bell-Wash. .46" I.D. (Splined) MTD-936-0453
...
32
Hex Bolt 3/8-24 x 1.5" Lg. (Keyed) MTD-710-1044
...
xx
Hex Bolt 7/16-20 x 1.5" Lg. (Splined) MTD-710-0757
...
33
22" Blade MTD-742-0622
...
xx
22" Mulching Blade (Optional); Part of Optional Mulching Kit - For model 190-100-000. MTD-942-0722
...
34
Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A
...
35
Chute Deflector Adapter MTD-17032A
...
36
Torsion Spring MTD-932-0593
...
37
Hex Self-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
38
Chute Deflector Ass'y. MTD-931-1034B
...
39
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
40
Engine MTD-NA
...
41
Drive Cable - 41.5" Lg. (Dual Bail) MTD-746-0594
...
42
Chain - Axle Ass'y. MTD-17055B
...
?43
Hex B-Tap Scr. 1/4 x .38" Lg. MTD-710-0352
...
44
Hex Wash. Hd. B-Tap Scr. 5/16-18 MTD-710-0603
...
?45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
47
22" Deck Ass'y. New Part MTD-682-0001A
...
48
Shld. Bolt .5" Dia. x .357 MTD-738-0507B
...
49
Front Spring Lever MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adjustment Plate MTD-787-01290A
...
52
Wheel Ass'y. Comp. MTD-NA
...
xx
8" x 1.75" Front Wheels Bar Tread MTD-634-0020
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Wheels - Front MTD-753-08093
...
xx
8" x 1.75" Rear Wheels Bar Tread MTD-634-0020
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
54
Shld. Bolt .498" Dia. x 1.45" MTD-738-0102
...
55
Wave Washer.510 ID x.750 OD MTD-936-0504
...
58
Fl-Wash .385" I.D. x .87" MTD-736-0300
...
59
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
60
Hub Cap MTD-NA
...
xx
Hub Cap Gray (3-1/2" Dia.) MTD-920-0249
...
xx
Hub Cap MTD-731-0981C
...
62
Rear Flap New Part MTD-731-1483
...
63
L.H. Handle Wheel Brkt. Ass'y. MTD-16137B
...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-16136B
...
65
#48 Chain .5" Pitch x 30 Links New Part MTD-713-0353
...
67
Handle Knob 1/4-20 Thd. MTD-720-0279
...
68
Mulching Baffle (Optional); Part of Optional Mulching Kit-For model 190-100-000. MTD-731-1386D
...
70
Grip MTD-720-0223
...
71
Height Adj. Lever MTD-732-0606
...
72
Ext. Spring .5" O.D. x 3.8" Lg. MTD-732-0481
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Spacer .383" I.D. x .503" O.D. MTD-950-0736
...
75
Shld. Spacer .5" Dia. MTD-750-0624
...
80
Shld. Scr .342" Dia. x .268" MTD-738-0137
...
81
Pawl LH MTD-948-0188B
...
xx
RH Pawl MTD-748-0381
...
82
Wheel Ass'y. Comp. MTD-NA
...
xx
8" x 1.75" Front Wheels Bar Tread MTD-634-0020
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Wheels - Front MTD-753-08093
...
xx
8" x 1.75" Rear Wheels Bar Tread MTD-634-0020
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
84
Bearing MTD-NA
...
xx
BALL BEARING MTD-941-0484
...
xx
Sleeve Brg. Rear Wheel Bearings MTD-741-0486B
...
85
Spring Washer, .890 x 1.70 MTD-936-0513
...
86
Fl-Wash .885" I.D. (Keyed) MTD-736-0514
...
87
Engine Shroud - Black (Optional) MTD-751B281440
...
xx
XTE Engine Shroud (Red) (Optional) MTD-751B281295
...
xx
Engine Shroud - Black (Optional) MTD-731-1396A
...
88
Hi-Lo Scr. #8-18 x 1.25" Lg. MTD-710-1256
...
89
Upper Handle MTD-749-0539C-0637
...
90
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
91
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
92
Splined Pulley Half (2 Req'd.) MTD-756-0502
...
xx
Upper Pulley Half (Keyed) MTD-756-0962
...
93
Bell-Wash. 1.01" I.D. (Used w/Splined Adapter) MTD-736-0450
...
94
Crankshaft Spacer (Splined) MTD-748-0332
...
xx
Crankshaft Spacer (Keyed) MTD-748-0358
...
95
Lower Pulley Half (Keyed) MTD-756-0961
...
96
BELT 3/8 x 32.2" MTD-954-0369
...
97
Hairpin Clip MTD-714-0104
...
98
Control Cover Half-Lower MTD-753-0833
...
99
S.P. Cable MTD-946-0710A
...
100
Spark Plug Boot MTD-735-0639
...
101
Pawl Plate MTD-16855
...
102
Weld L-Nut 1/4-20 Thd. MTD-712-0414
...
103
Sq. Key 3/16" x 3/4" Lg. For model (232) MTD-714-0122
...
?104
Set Scr #10-32 x .25" Lg. For model (232) MTD-710-0497
...
105
Cable Clamp (B&S) MTD-BS-690798
...
106
Hex Wash. Hd. Scr. #10-32 x .62" Lg. (B & S) MTD-710-1237
...
107
Drive Control MTD-731-0620A
...
108
Control Cover Half-Lower MTD-753-0833
...
109
Sleeve Brg 1/2" I.D. MTD-741-0486B
...
110
Control Cover Half-Lower MTD-753-0833
...
111
Fl-"C"-Sunk Hd. Tap Scr. 010 x .75" Lg. MTD-710-0841
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
128
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. MTD-714-0115
...
134
Hex Flange Bearing MTD-741-0522
...
136
Spring - Nylon MTD-10622B
...
138
Chain Cover MTD-17053A
...
147
Rear Shaft Ass'y. 21.94" Lg. MTD-738-0719A
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash.531" I.D. x .93" MTD-736-0160
...
153
Transmission Comp. (See "Transmission And Belt Guard Assembly" illustration and Parts List). MTD-917-0417B
...
154
Hex Bearing Cup MTD-16500A-0637

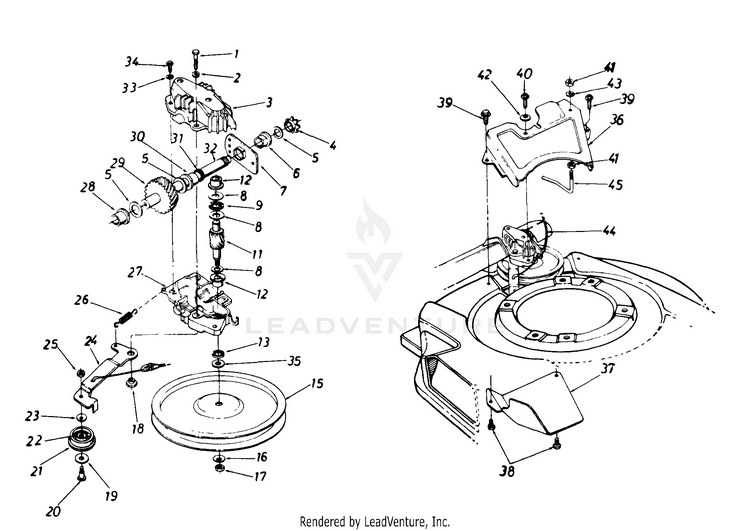

Transmission And Belt Guard Assembly

...
...
1
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
2
L-Wash. 1/4" I.D. MTD-726-0329
...
3
Upper Hsg. Half MTD-717-0418A
...
4
#48 Sprocket 7 Tooth x 1/2 Pitch MTD-713-0400
...
5
FLAT WASHER MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. MTD-741-0413
...
7
Hex Bearing Cup MTD-16500A-0637
...
8
Thrust Wash .382" I.D. x .70" O.D. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. MTD-741-0479
...
11
11 Tooth Helical Gear MTD-917-1216
...
12
Flange Bearing MTD-748-0208A
...
13
Oil Seal MTD-721-0212
...
15
Fl-Pulley 5.06" I.D. Not Part of Transmission Complete MTD-756-0330A
...
16
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
17
Jam Nut, 1/4-28, LH Not Part of Transmission Complete MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 Not Part of Transmission Complete MTD-738-0440
...
19
Fl-Wash .390" I.D. x 1.0" Not Part of Transmission Complete MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" Not Part of Transmission Complete MTD-738-0826
...
21
Pulley Ass'y Idler w/ Bearing New Part (Incl. Ref. 22); Not Part of Transmission Complete MTD-956-0008
...
22
Needle Brg .375" x .375" Not Part of Transmission Complete MTD-741-0556
...
23
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
24
Idler Brk't. Ass'y. Not Part of Transmission Complete MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. Not Part of Transmission Complete MTD-712-0138
...
26
Extension Spring 1.12" Lg. Not Part of Transmission Complete MTD-732-0357A
...
27
Lower Hsg. Half MTD-717-0419A
...
28
Flange Bearing .566 ID MTD-941-0415
...
29
33 Tooth Helical Gear MTD-717-0422A
...
30
Flange Bearing .629 Dia. MTD-741-0414
...
31
Oil Seal .625 Dia. MTD-721-0213
...
32
Gear Sprocket Shaft MTD-738-0607A
...
33
L-Wash. #10 I.D. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
35
Hex Washer .26" x .88" Not Part of Transmission Complete MTD-736-0410
...
36
Transmission Belt Guard Not Part of Transmission Complete MTD-17718
...
37
Belt Cover MTD-17064
...
38
Hex B-Tap Scr. 1/4 x .38" Lg. Not Part of Transmission Complete MTD-710-0352
...
39
Hex AB-Tap Scr. 1/4 x 50" Lg. Not Part of Transmission Complete MTD-730-0599
...
40
Hex B-Tap Scr. 1/4 x 62" Lg. MTD-710-0896
...
41
Hex Nut 1/4-20 Thd. Not Part of Transmission Complete MTD-912-0287
...
42
SPRING WASHER BELL Not Part of Transmission Complete MTD-736-0270
...
43
L-Wash. 1/4" I.D. Not Part of Transmission Complete MTD-936-0329
...
44
S.P. Cable Not Part of Transmission Complete MTD-946-0710A
...
45
S.P. Belt Guard Not Part of Transmission Complete MTD-747-0549
...
xx
Transmission Comp. MTD-917-0417B
...
...
...
