MTD 121-118R192 Self Propelled Mower

Model: 121-118R192

Save
 Part Not Listed?Part Not Listed?
product name

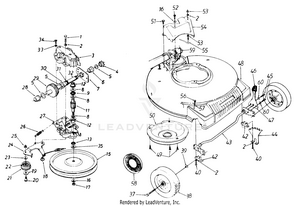

Parts

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" (Part of Transmission Complete, Ref. No. 36) MTD-710-1062
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
Upper Hsg. Half (Part of Transmission Complete, Ref. No. 36) MTD-717-0418A
...
4
#48 Sprocket 7 T x 1/2 Pitch (Part of Transmission Complete, Ref. No. 36) MTD-713-0400
...
5
FLAT WASHER (Part of Transmission Complete, Ref. No. 36) MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. (Part of Transmission Complete, Ref. No. 36) MTD-741-0413
...
7
Hex Bearing Cup (Part of Transmission Complete, Ref. No. 36) MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. (Part of Transmission Complete, Ref. No. 36) MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. (Part of Transmission Complete, Ref. No. 36) MTD-741-0479
...
11
11 Tooth Helical Gear (Part of Transmission Complete, Ref. No. 36) MTD-917-1216
...
12
Flange Bearing (Part of Transmission Complete, Ref. No. 36) MTD-748-0208A
...
13
Oil Seal (Part of Transmission Complete, Ref. No. 36) MTD-721-0212
...
15
Fl-Pulley 5.06" O.D. MTD-756-0330A
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Jam Nut, 1/4-28, LH MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
19
Fl-Wash. .390" I.D. x 1.0" MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
21
Fl-ldler Plastic 1.50" Dia. MTD-956-0558
...
22
Needle Brg. .375" x .31 MTD-741-0556
...
23
UNKNOWN MTD-NA
...
24
Idler Brk't. Ass'y. MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
27
Lower Hsg. Half (Part of Transmission Complete, Ref. No. 36) MTD-717-0419A
...
28
Flange Bearing .566 ID (Part of Transmission Complete, Ref. No. 36) MTD-941-0415
...
29
33 Tooth Helical Gear (Part of Transmission Complete, Ref. No. 36) MTD-717-0422A
...
30
Flange Bearing .629 Dia (Part of Transmission Complete, Ref. No. 36) MTD-741-0414
...
31
Oil Seal .625 Dia. (Part of Transmission Complete, Ref. No. 36) MTD-721-0213
...
32
Gear Sprocket Shaft (Part of Transmission Complete, Ref. No. 36) MTD-738-0607A
...
33
L-Wash. #10 I D (Part of Transmission Complete, Ref. No. 36) MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. (Part of Transmission Complete, Ref. No. 36) MTD-710-0651
...
35
Hex Washer .26" x .88" MTD-736-0410
...
xx
Transmission Comp. MTD-917-0417B
...
37
Front Axle Bolt MTD-738-0102
...
38
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
39
Bell-Wash. .380n I.D. x .88 MTD-736-0105
...
40
Screw, Hex MTD-710-0788
...
42
Block Bushing MTD-741-0492A
...
43
Axle Ass'y. MTD-17733
...
44
Height Adj. Bracket MTD-17059
...
45
Hex TT-Tap Scr. 1/4-20 x .38" MTD-710-0653
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
Spring Lever MTD-732-0639
...
48
Plastic Front End MTD-731-1281
...
49
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
50
Belt Cover MTD-782-7522
...
51
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
52
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
53
Hex Nut 1/4-20 Thd. MTD-912-0287
...
54
Transmission Belt Guard MTD-17058A-0637
...
55
S.P. Belt Guard MTD-747-0549
...
56
HL Screw, 5/16-14 x .750 MTD-710-1242
...
57
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
58
Hub Cap MTD-731-0981C
...
59
S.P. Cable 44" Lg. MTD-746-0712A
...
60
External L-Wash. 114" I.D. MTD-736-0222

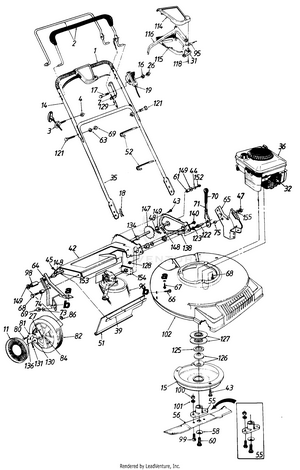

Parts

...
...
1
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
2
Control Handle Ass'y. (Std.) MTD-747-0748
...
xx
HANDLE ASSEMBLY (Deluxe) MTD-731-1135
...
3
Rope Guide Bolt MTD-710-1205
...
4
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
7
Cable Brkt. MTD-17174
...
11
Hub Cap MTD-731-0981C
...
14
Upper Handle MTD-749-0757
...
15
Belt Cover MTD-782-7522
...
16
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
17
Hex Bolt 1/4-20 x 1.875" Lg. MTD-710-1216
...
18
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
19
Throttle Control Ass'y. Comp.-49" Lg. (118R) MTD-946-0821A
...
xx
THROTTLE CONTROL 42.02" (115R) MTD-946-0832A
...
26
Hex Nut 1/4-20 Thd. MTD-912-0287
...
27
Pawl Plate MTD-16855
...
31
Control Cover Half-Lower MTD-753-0833
...
32
Spark Plug Insulator MTD-735-0639
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine MTD-NA
...
39
Retaining Strip MTD-14835
...
42
Chain-Axle Ass'y. MTD-682-7507
...
43
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
44
SPRING WASHER BELL MTD-736-0270
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
47
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
48
#48 Chain 1/2" Pitch x 38 Links (Endless) MTD-913-0361
...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0672A
...
52
Cable Tie MTD-725-0157
...
55
Blade Adapter Kit MTD-753-0519
...
56
21" Mulching Blade MTD-942-0721
...
58
Bell-Wash. .46" I.D. MTD-936-0453
...
60
Hex Bolt 7/16-20 x 2.5" MTD-710-0561
...
61
Spacer. 513" I.D. MTD-748-0190
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-682-3006
...
65
L.H. Handle Wheel Brkt. Ass'y. MTD-682-3007
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
Height Adj. Lever MTD-732-0580
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Spacer .383" I.D. x .503" O.D. MTD-950-0736
...
75
Shld. Spacer .5" Dia. MTD-750-0624
...
80
Shld. Scr. .342" Dia. x .268 MTD-738-0137
...
81
Pawl LH MTD-948-0188B
...
82
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
84
Sleeve Bearing 1/2" I.D. MTD-741-0486B
...
86
Flat Nut 1/4-20 Thd. MTD-712-0189
...
95
S.P. Cable-44" Lg. MTD-746-0712A
...
96
V-Belt MTD-954-0343
...
98
Sleeve.526" I.D. MTD-711-0313
...
99
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
638/N 21" Deck Ass'y. MTD-782-0015
...
114
Control Cover Half-Lower MTD-753-0833
...
115
Control Cover Half-Lower MTD-753-0833
...
116
Drive Control MTD-731-0620A
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x 75n Lg. MTD-710-0841
...
121
Curved Carr. Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 818n I.D. MTD-736-0169
...
125
Crankshaft Spacer ( 118R ) MTD-748-0332
...
xx
Serrated Washer 1.0" I.D. (115R) MTD-936-0409
...
126
Bell-Wash. 1.01" I.D. MTD-736-0450
...
127
Serrated Pulley Half MTD-756-0502
...
128
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
129
Control Cable (118R) MTD-946-0553
...
xx
Control Cable-51" (115R) MTD-746-0727
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1 MTD-714-0115
...
134
Hex Flange Bearing MTD-741-0522
...
136
Spring-Nylon MTD-10622B
...
138
Chain Cover Ass'y. MTD-682-7506
...
140
Hex S-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
147
Rear Shaft Assy. 21.44" Lg. MTD-938-0864
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
Transmission Comp. (See Breakdown) MTD-917-0417B
...
154
Hex Bearing Cup MTD-16500A-0637
...
155
Fl-Wash. 885" I.D. MTD-736-0300
...
...
...
