MTD 11A-020L706 (2013) Push Walk Behind Mower

Model: 11A-020L706 (2013)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-BS-796112S
...
xx
Air Filter MTD-490-200-0011
...
xx
Fuel Cap MTD-BS-795472
...
xx
Control Cable MTD-946-0957
...
xx
Blade Adapter MTD-748-0376E
...
xx
Blade MTD-942-0640
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Bolt MTD-710-1044
...
xx
COMPLETE WHEEL MTD-734-04063B
...
xx
COMPLETE WHEEL MTD-734-04063B
...
xx
Trailshield MTD-731-06953
...
xx
20" FIXED DISCHARGE CHUTE MTD-731-0064A
...
xx
Blade Removal Tool (Optional Accessory) MTD-490-850-0005
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
Oil Siphon (Optional Accessory) MTD-490-850-0008
...
xx
Side Discharge Blower (Optional Accessory) MTD-490-850-0016
...
xx
Cargo Carrier (Optional Accessory) MTD-490-850-0015
...
xx
Garage Floor Mat (Optional Accessory) MTD-735-04255
...
xx
Mower Kick Stand (Optional Accessory) MTD-490-850-0012
...
xx
Mower Cover (Optional Accessory) MTD-490-290-0012
...
xx
Non-Stick Mower Deck Spray (Optional Accessory) MTD-490-900-0062

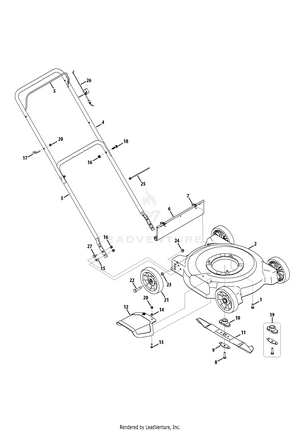

General Assembly

...
...
1
Hex Ind. Washer Screw, 3/8-16 x 1.0 MTD-710-0654A
...
2
Cutting Deck, 20" MTD-787-01759A-0638
...
3
Lower Handle MTD-749-04037
...
4
Upper Handle MTD-749-1092A
...
5
Blade Control MTD-747-1161A-0637
...
6
Rear Flap MTD-731-06953
...
7
Hinge Clip MTD-732-04631A
...
8
Screw, 3/8-24 x 1.5" MTD-710-1044
...
9
BLADE BELL SUPPORT MTD-736-0524B-1
...
10
Blade Adapter MTD-748-0376E
...
11
Cutting Blade MTD-942-0640
...
12
20" FIXED DISCHARGE CHUTE MTD-731-0064A
...
13
Carriage Screw, 1/4-20 x 1.0" MTD-710-0932A
...
14
Flat Washer MTD-736-0173
...
15
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
16
Flange Lock Nut, 5/16-18 MTD-712-04063
...
17
Eye Bolt MTD-710-1205
...
18
Carriage Bolt, 5/16-18 x 1.5" MTD-710-0262
...
19
Blade Adapter Kit (Incl. Ref. 8-10) MTD-753-06315
...
20
Flange Lock Nut, 1/4-20 MTD-712-04064
...
21
COMPLETE WHEEL MTD-734-04063B
...
22
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
23
Bell Washer MTD-736-0105
...
24
Flange Lock Nut, 3/8-16 MTD-712-04065
...
25
Cable Tie MTD-725-0157
...
26
Control Cable, 148cc MTD-946-0957
...
27
Shoulder Screw, 5/16-18 x.428" MTD-738-04033

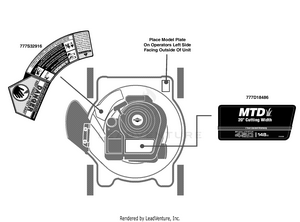

Label Map

...
...
777S32916
LABEL-MOWER DECK SAFETY MTD-777S32916
...
777D18486
LBL:MWR_ENGFINGER/450:SIDE MTD-777D18486
...
...
...
