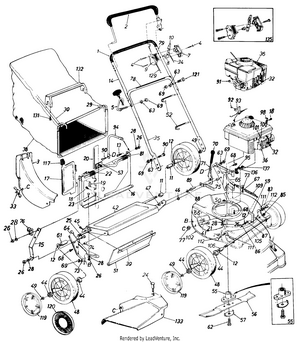

MTD 119-817R401 (1989) Push Walk-Behind Mower

Model: 119-817R401 (1989)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Grip Foam MTD-720-0295
...
2
Control Handle Ass'y.-L.H. MTD-731-0609
...
3
Top Discharge Chute Ass'y. MTD-731-1023
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
5
Rope Guide Bolt MTD-710-0842B
...
7
Control Panel Half MTD-731-0817
...
8
Control Disc Pin MTD-731-0524
...
9
Clutch Panel Half MTD-731-0816
...
10
Throttle Control Lever MTD-931-0972
...
11
Spacer .526" I.D. x .690" O.D. x . 640 " Lg . MTD-711-0500
...
12
Fl-Wash. .510" I.D. x .75" MTD-736-0108
...
13
Truss Mach. Scr. 1/4-20 x .62" MTD-710-0946
...
14
Upper Handle Chrome MTD-749-0438D-0637
...
15
Panel Support Brkt. MTD-16129A-0637
...
16
Top Catcher Panel Ass'y. MTD-16862
...
17
Top Discharge Door MTD-17095
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
19
Torsion Spring MTD-732-0483A
...
20
Pivot Pin MTD-747-0514
...
21
Carriage Bolt 1/4-20 x .62"* MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x .75" Lg. MTD-710-0225
...
23
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
24
Shoulder Bolt .312 Dia. x .18 Lg. Special MTD-738-0704
...
25
Hex Bolt 1/4-20 x .62" Lg.* MTD-710-0258
...
26
Hex Nut 1/4-20 Thd. MTD-912-0287
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
29
Front Grass Catcher Frame MTD-747-0705-0637
...
30
Rear Grass Catcher Frame MTD-749-0764A-0637
...
32
Spark Plug Insulator MTD-735-0639
...
33
Wing Nut MTD-712-0397A
...
34
Throttle Wire-58" Lg. (816R & 817R) MTD-946-0674A
...
xx
Throttle Cable (818R) MTD-946-1115
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
38
21" Rear Discharge Grass Bag MTD-964-0082
...
xx
21" Rear Discharge Grass Bag MTD-964-0082
...
39
Retaining Strip MTD-14835
...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204
...
42
Rear Axle Ass'y. MTD-16131A
...
44
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Fl-Wash. .38" I.D. x 1.0" MTD-736-0258
...
47
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
48
Wheels - Front MTD-753-08093
...
49
Hex L-Nut 1/2-20 Thd. MTD-712-0346
...
50
Plug MTD-731-0564
...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0671A
...
52
Cable Tie MTD-725-0157
...
53
Foam Strip 1" Lg. MTD-722-0139
...
55
Blade Adapter Kit (Splined) MTD-753-0485
...
56
21" Blade MTD-942-0621
...
57
Blade Bell-Wash. .44" I.D. MTD-753-0525
...
59
Height Adj. Connecting Arm MTD-16863
...
61
Sleeve .526" I.D. x .69" MTD-711-0313
...
62
Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5) MTD-710-0757
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-16136A
...
65
L.H. Handle Wheel Brkt. Ass'y. MTD-16137B
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex Wash. Hd. TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
Height Adj. Lever MTD-732-0606
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Spacer .383" I.D. x .503" O.D. MTD-950-0736
...
75
Shld. Spacer .500" Dia. MTD-750-0624
...
76
Rope Guide MTD-719-0279
...
77
Bolt Retainer 1/4 x .50 O.D. MTD-726-0233
...
78
Instruction Label MTD-777-5816
...
79
Control Label MTD-777-5814
...
81
Panel Clip MTD-731-0880
...
83
Flanged Nyliner Brg. MTD-741-0491
...
85
JAM LOCK NUT MTD-712-0266A
...
86
Shld. Bolt .50" Dia. x .295" MTD-738-0234
...
87
Bell-Wash. .515" I.D. x 1.0" O.D. MTD-736-0253
...
88
L-Wash. 3/8" I.D. MTD-736-0169
...
89
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
90
Truss Mach. Scr. 5/16-18 x .75" MTD-710-0323
...
91
Hex Nut 3/8-16 Thd. (817R) MTD-712-0798
...
92
Pop Rivet (Model 816R Only) MTD-728-0171
...
93
Cable Bracket (Model 816R Only) MTD-14924
...
94
Catcher Panel Support Arm MTD-749-0778
...
95
Clamp MTD-726-0175
...
98
Cable Clamp (Model 816R Only) MTD-12894A
...
100
Hex Wash. Hd. Self-Tap Scr. (Model 816R Only) MTD-710-0651
...
101
Cable Clamp (Model 816R Only) MTD-751-0463
...
102
N/629 21" Deck Ass'y. MTD-16858
...
105
Front Axle Ass'y. MTD-982-7509-0637
...
106
Sleeve .526" I.D. x .690" O.D. x .880" Lg. MTD-711-0313
...
109
Extension Spring 8" Lg. MTD-732-0362
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
Shld. Bolt .623" Dia. x .425 MTD-938-0705
...
117
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
119
Hub Cap MTD-731-0981C
...
120
Hub Cap MTD-731-0981C
...
121
Curved Carr. Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
129
CONTROL CABLE 55" (817R) MTD-946-0479A
...
xx
Control Cable 46" Lg. (816R) MTD-746-0480A
...
xx
Control Cable 58" Lg. (818R) MTD-746-0482
...
131
Hex AB-Tap Scr. #12 x 1.0" MTD-710-0969
...
132
Bag Handle MTD-731-0801
...
133
Side Chute Deflector Ass'y. MTD-731-0884
...
135
Kit-Control Housing Comp. MTD-753-0430
...
136
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
137
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
...
...
