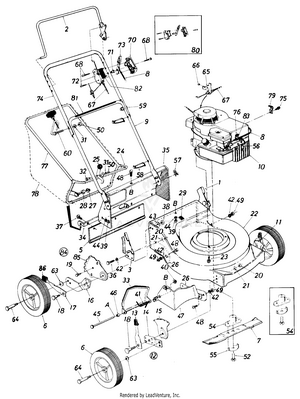

MTD 119-312R000 (1989) Push Walk-Behind Mower

Model: 119-312R000 (1989)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Handle Brkt. Ass'y.-L.H. MTD-12297
...
2
Control Handle Ass'y. MTD-14321
...
3
Handle Brkt. Ass'y.-R.H. MTD-12296B-0637
...
5
Rear Flap Ass'y. MTD-731-0665
...
6
Wheel Ass'y. MTD-NA
...
xx
Plastic Rim MTD-734-0841
...
xx
Plastic Rim MTD-734-1162A
...
xx
Twinline Tread MTD-734-0661
...
xx
Waffle Tread MTD-734-0812
...
xx
Smooth Tread MTD-734-0843
...
xx
Twinline Tread MTD-734-0643
...
xx
Waffle Tread MTD-734-0645
...
xx
Smooth Tread MTD-734-0845
...
7
21" Blade MTD-942-0621
...
8
Throttle Wire-58" Lg. (312R) MTD-946-0674A
...
xx
Throttle Cable (313R & 31 5R) MTD-946-1115
...
9
Lower Handle MTD-749-0907B
...
xx
Lower Handle MTD-749-0907B
...
10
Engine MTD-NA
...
11
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
12
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
13
Front Spring Lever MTD-94832
...
14
Front Pivot Bar MTD-15262B
...
15
Height Adjustment Plate MTD-787-01290A
...
16
Rear Pivot Bar-R.H. MTD-14765
...
xx
Rear Pivot Bar-L.H. (Not Shown) MTD-14766
...
17
Spring Lever MTD-732-0417A
...
18
Shld. Bolt .50" Dia. x .375 MTD-738-0507B
...
19
Hex Wash. Hd. Tap Scr. 1/4 x.62" Lg. MTD-710-0892
...
20
Hex Nut 3/8-16 Thd. MTD-712-0798
...
21
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
22
21" Deck Ass'y. MTD-16241
...
23
Self-Tap Screw 3/8-16 x .88" MTD-710-0654A
...
24
Catcher Lower Frame Ass'y. MTD-13924
...
25
Cam Lever Grip Ass'y. MTD-13435
...
26
Baffle MTD-16366A
...
27
Push Nut 3/8" Rod MTD-726-0100
...
28
Plastic Roller MTD-731-0430
...
29
Plastic Plug MTD-731-0564
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
Shld. Bolt .437" Dia. x .180" MTD-738-0140
...
33
Chute Door MTD-13407
...
34
Grass Catcher Hitch Brkt. MTD-14012
...
35
Rear Deck Section MTD-16258
...
36
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
37
Carr. Bolt 1/4-20 x .75" Lg.* MTD-710-0703
...
38
Hex Nut 1/4-28 Thd. MTD-712-0138
...
39
Sems Nut 1/4-20 Thd. MTD-712-0271
...
40
PUSH NUT MTD-726-0106
...
41
Torsion Spring MTD-732-0346
...
42
L-Wash. 1/4" I.D. MTD-936-0329
...
43
SPRING WASHER BELL MTD-736-0270
...
44
Fl-Wash. .385" I.D. x 1.25" MTD-736-0211
...
45
Hinge Pin MTD-738-0386
...
46
Spacer MTD-950-0218
...
47
Rear Baffle MTD-16259
...
48
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
49
Hex Nut 1/4-20 Thd. MTD-912-0287
...
50
HEX NUT 5/16-18 MTD-712-3010
...
52
Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5) MTD-710-1044
...
54
Blade Adapter Kit MTD-753-0462
...
55
Blade Bell-Wash. .44" I.D. MTD-753-0525
...
56
Spark Plug Boot (Optional Parts) MTD-735-0639
...
57
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
58
Cable Tie MTD-725-0157
...
59
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
60
Rope Guide Bolt MTD-710-0842B
...
63
Bell-Wash. .400" I.D. x .88" O.D. x .060 MTD-736-0105
...
64
Axle Bolt MTD-738-0102
...
65
Cable Bracket (B&S) MTD-14924
...
66
Pop Rivet (B&S) MTD-728-0171
...
67
Clutch Control Cable 45" Lg. (312R) MTD-946-0477A
...
xx
CONTROL CABLE 55" (313R & 315R) MTD-946-0479A
...
68
Truss Mach. Hd. "B" Tap Scr. #12 x 1.50" Lg. MTD-710-0796
...
70
Control Panel Half MTD-731-0816
...
71
Control Disc Pin MTD-731-0524
...
72
Clutch Panel Half MTD-731-0817
...
73
Throttle Control Lever MTD-931-0972
...
74
Upper Handle Chrome MTD-749-0438D-0637
...
xx
Upper Handle Chrome MTD-749-0438D-0637
...
75
Hex B-Tap Scr. #10 x .38" (B&S) MTD-910-0429
...
76
Casing Clamp (B&S) MTD-751-0369
...
77
Catcher Upper Frame MTD-749-0278
...
78
Grass Bag (Without Flip Top) MTD-764-0171B
...
xx
Grass Bag (With Flip Top) MTD-764-0170B
...
79
Casing Clamp (B&S) MTD-12894A
...
80
Control Housing Comp. MTD-753-0430
...
81
Instruction Label-Handle MTD-777-5776
...
82
Control Label-Throttle MTD-777-5773
...
83
Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg. (B&S) MTD-710-0227
...
84
Rear Height Adj. Ass'y.-R.H. MTD-16106
...
xx
Rear Height Adj. Ass'y.-L.H. MTD-16107
...
85
Rear Index Plate MTD-14764C
...
86
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
...
...
