product name

MTD 119-302R000 (1989) Push Walk-Behind Mower

Model: 119-302R000 (1989)

Save
 Part Not Listed?Part Not Listed?
product name

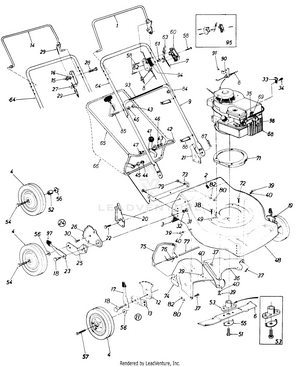

Parts

...
...
1
Control Handle Ass'y. (302R & 305R) MTD-14321
...
2
Plug MTD-731-0564
...
3
Rear Flap Ass'y. MTD-731-0665
...
4
7" Wheel Ass'y. Comp. MTD-734-1161A
...
xx
8" Wheel Ass'y. Comp. MTD-734-1162A
...
6
20" Blade MTD-742-0520
...
7
Throttle Wire-58" Lg. (302R) MTD-946-0674A
...
xx
Throttle Cable (305R) MTD-946-1115
...
8
Clutch Control Cable 45" Lg. (302R) MTD-946-0477A
...
xx
CONTROL CABLE 55" (305R) MTD-946-0479A
...
9
Lower Handle MTD-749-0907B
...
xx
Lower Handle MTD-749-0907B
...
11
Height Adj. Ass'y. Comp. (R.H.) (Optional Parts) MTD-753-06761
...
12
Height Adjustment Plate (Optional Parts) MTD-787-01290A
...
13
Front Pivot Bar (Optional Parts) MTD-15262B
...
14
Control Handle (303R) MTD-747-0550
...
15
Hex Nut 1/4-28 Thd. MTD-712-0138
...
16
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
17
Front Spring Lever (Optional Parts) MTD-94832
...
18
Shld. Bolt .50" Dia. x .375 (Optional Parts) MTD-738-0507B
...
19
Height Adj. Ass'y. Comp. (R.H.) (Optional Parts) MTD-753-06761
...
20
Handle Brkt. Ass'y.-R.H. MTD-12296B-0637
...
21
Handle Brkt. Ass'y.-L.H. MTD-12297
...
22
Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-0892
...
23
Spring Lever (Optional Parts) MTD-732-0417A
...
24
Rear Height Adj. Ass'y.-R.H. (Optional Parts) MTD-16106
...
xx
Rear Height Adj. Ass'y.-L.H. (Not Shown) (Optional Parts) MTD-16107
...
25
Rear Pivot Bar-R.H. (Optional Parts) MTD-14765
...
xx
Rear Pivot Bar-L.H. (Not Shown) (Optional Parts) MTD-14766
...
26
Rear Index Plate (Optional Parts) MTD-14764C
...
27
Cable Mounting Bracket MTD-16201
...
28
Hex Bolt 1/4-28 x 1.75" Lg. MTD-710-0559
...
29
Control Cable - 55" (Tecumseh) (303R) MTD-946-0555
...
30
Hex Wash. Hd. Tap Scr. 1/4 x .62" Lg. (Optional Parts) MTD-710-0892
...
31
Hex Nut 3/8-16 Thd. MTD-712-0798
...
32
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
33
Cable Clip (B&S) MTD-12894A
...
34
Hex B-Tap Scr. #10 x .38" (B&S) MTD-910-0429
...
35
Casing Clamp (B&S) MTD-751-0369
...
36
Rear Chute Baffle-L.H. MTD-13405A
...
37
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
38
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206
...
39
Hex Nut 1/4-20 Thd. MTD-912-0287
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
41
Cam Lever Grip Ass'y. MTD-13435
...
42
Grass Catcher Lower Frame MTD-13924
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Push Cap 3/8" Rod MTD-726-0100
...
45
Plastic Roller MTD-731-0430
...
46
Lock Wash. 5/16" I.D. MTD-936-0119
...
47
Shld. Bolt .437" Dia. x .180" MTD-738-0140
...
48
20" Deck Ass'y. MTD-16108
...
49
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A
...
51
Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5) MTD-710-1044
...
52
Spacer (Used w/o Height Adjuster) MTD-750-0515
...
53
Blade Adapter Kit MTD-753-0462
...
54
Rear Axle Bolt (Used w/ Height Adjuster) MTD-738-0102
...
xx
Rear Axle Bolt (Used w/o Height Adjuster) MTD-738-0509
...
55
Blade Bell-Wash. .44" I.D. MTD-753-0525
...
56
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
57
Front Axle Bolt MTD-738-0102
...
58
Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg. (Optional Parts) MTD-710-0796
...
60
Control Panel Half (Optional Parts) MTD-731-0816
...
61
Control Disc Pin (Optional Parts) MTD-731-0524
...
62
Clutch Panel Half (Optional Parts) MTD-731-0817
...
63
Throttle Control Lever (Optional Parts) MTD-931-0972
...
64
Upper Handle Chrome MTD-749-0438D-0637
...
xx
Upper Handle Chrome MTD-749-0438D-0637
...
65
Grass Catcher Upper Frame MTD-749-0278
...
66
Grass Bag (With Flip Top) MTD-764-0170B
...
xx
Grass Bag (Without Flip Top) MTD-764-0171B
...
68
Engine MTD-NA
...
69
Hex AB-Tap Scr. #8 x .38" (B&S) MTD-710-0227
...
71
Engine Mounting Cover MTD-13773A
...
72
Hex Self-Tap Scr. 1/4-20 x .75" MTD-710-0642
...
73
Grass Catcher Hitch Brkt. MTD-14012
...
74
Rear Chute Baffle-R.H. MTD-14235
...
75
Chute Door MTD-13407
...
76
Torsion Spring MTD-732-0346
...
77
Hinge Pin MTD-738-0386
...
79
Carr. Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
80
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
82
Fl-Wash. .281" I.D. x 1.25" MTD-736-0211
...
84
Curved Carr. Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
85
Rope Guide Bolt MTD-710-0842B
...
87
Hairpin Cotter MTD-714-0104
...
88
Cable Tie MTD-725-0157
...
90
Cable Brkt. (B&S) MTD-14924
...
91
Pop Rivet (B&S) MTD-728-0171
...
93
Instruction Label-Handle MTD-777-5776
...
94
Control Label-Throttle (Optional Parts) MTD-777-5773
...
95
Kit-Control Housing Comp. (Optional Parts) MTD-753-0430
...
97
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
98
Spark Plug Boot (Optional Parts) MTD-735-0639
...
...
...
