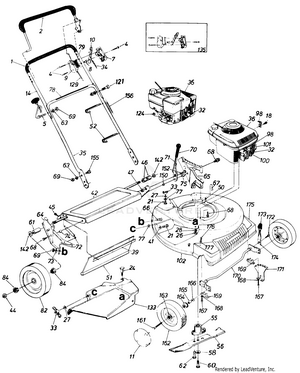

MTD 11852-7 (1987) Push Walk-Behind Mower

Model: 11852-7 (1987)

Save
 Part Not Listed?Part Not Listed?
product name

21"

...
...
1
Grip MTD-718-0145
...
2
Control Handle Ass'y. L.H. MTD-731-0609
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
5
Rope Guide Bolt MTD-710-0842
...
7
Control Panel Half MTD-731-0817
...
8
Control Disc Pin MTD-731-0524
...
9
Clutch Panel Half MTD-731-0816
...
10
Throttle Control Lever MTD-931-0972
...
11
Hub Cap MTD-731-0571
...
14
Upper Handle Chrome MTD-749-0438D-0637
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
24
Shoulder Bolt .312 Dia. x .18 Lg. Special MTD-738-0704
...
26
Hex Nut 1/4-20 Thd. MTD-912-0287
...
27
SPRING WASHER BELL MTD-736-0270
...
28
L-Wash. 1/4" I.D. MTD-936-0329
...
32
Spark Plug Insulator MTD-735-0639
...
33
Wing Nut MTD-712-0109
...
34
Throttle Wire-58" Lg. (11852) MTD-946-0674A
...
xx
Throttle Wire 55" Lg. (11851) MTD-946-0671A
...
35
Lower Handle Chrome MTD-749-0726
...
36
Engine MTD-NA
...
39
Retaining Strip MTD-14835
...
41
Fl-Wash. .344" I.D. x .62" MTD-736-0204
...
42
Rear Axle Ass'y. MTD-16131
...
44
Hex L-Nut 1/2-20 Thd. MTD-712-0346
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Spacer.526" I.D. MTD-711-0500
...
47
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
50
Plug MTD-731-0564
...
51
Rear Flap MTD-731-0671
...
52
Cable Tie MTD-725-0157
...
55
Blade Adapter MTD-748-0317
...
56
21" Blade (11852) MTD-742-0307
...
xx
21" Blade (11851) MTD-742-0290
...
58
Bell-Wash. .460" I.D. x 1.38" MTD-736-0411
...
60
Hex Bolt 7/16-20 x 1.5" MTD-710-0757
...
61
Sleeve.526" I.D. MTD-711-0313
...
62
Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg. MTD-910-1006
...
63
UNKNOWN MTD-NA
...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-16136
...
65
L.H. Handle Wheel Brkt. Ass'y. MTD-16137
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/16-18 MTD-710-0603
...
68
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0143
...
71
Height Adj. Lever MTD-732-0473B
...
72
Extension Spring 3.80" Lg. MTD-732-0481
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Spacer.385" I.D. MTD-750-0526
...
75
Shld. Spacer .5" Dia. MTD-750-0624
...
77
Bolt Retainer 1/4 x .50" O.D. MTD-726-0233
...
78
Instruction Label MTD-777-5816
...
79
Control Label MTD-777-5814
...
82
Wheel Ass'y. Comp. Rear MTD-734-1412
...
84
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
98
Casing Clamp MTD-12894
...
100
Hex Wash. Hd. Self-Tap Scr. MTD-710-0651
...
101
Casing Clamp MTD-751-0442
...
102
21" Deck Ass'y. MTD-17050
...
121
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
124
Hex Nut 3/8 x 16 Thd. (11851 ) MTD-712-0798
...
129
Conrol Cable 46 Lg. (11852) MTD-946-0478A
...
xx
CONTROL CABLE 55" (11851) MTD-946-0479A
...
133
Side Chute Deflector Ass'y. MTD-731-0885
...
135
Kit Control Housing Comp. MTD-753-0430
...
142
Fl-Wash. .510" I.D. x .75" MTD-736-0108
...
150
Fl-Wash. 3/8" I.D. x 1.0" MTD-736-0258
...
152
Hex Bolt 3/8-24 x .75" Lg. MTD-710-0180
...
155
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
156
Plastic Tubing MTD-731-0759
...
161
Hex Bolt 3/8-16 x 1.75" Lg. MTD-710-0347
...
162
Wheel Ass'y. Comp. 8 x 1.75 MTD-734-1259
...
163
Flange Ball Brg. 3/8" I.D. MTD-741-0267
...
164
BALL BEARING MTD-941-0484
...
165
Spacer MTD-750-0434
...
166
Bell-Wash. .400" I.D. x .88 MTD-736-0105
...
167
Screw, Hex MTD-710-0788
...
168
L-Wash. 1/4" I.D. MTD-936-0329
...
169
Block Bushing MTD-741-0492A
...
170
Axle Ass'y. MTD-17060
...
171
Height Adj. Bracket MTD-17059
...
172
Hex Wash. Hd. B-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
173
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
174
Spring Lever MTD-732-0553
...
175
Plastic Front End MTD-731-0865
...
176
HL Screw, 5/16-14 x .750 MTD-710-1242
...
177
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
xx
Hardware Pack (11851) MTD-8851-400-7
...
xx
Hardware Pack (11852) MTD-8852-400-7
...
...
...
