MTD 118-506C000 (1988) Push Walk-Behind Mower

Model: 118-506C000 (1988)

Save
 Part Not Listed?Part Not Listed?
product name

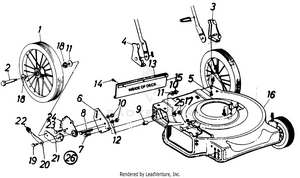

Parts01

...
...
1
WHEEL ASSEMBLY W/TIRE MTD-734-0244
...
2
Shoulder Screw MTD-938-0481A
...
3
Handle Mount Brkt.-L.H. MTD-12935
...
4
Handle Mount Brkt.-R.H. MTD-12936
...
5
Hex B-Tap Scr. 5/16-18 x .5" MTD-710-0603
...
6
Mounting Plate MTD-16645
...
7
HEX SCREW SEMS 3/8-16 x .62 MTD-710-0209
...
8
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
9
Spacer MTD-750-0699
...
10
Hex Nut 3/8-16 Thd. MTD-712-0798
...
11
Bell-Wash. .40" I.D. x .88" MTD-736-0105
...
12
L-Wash. 3/8" I.D. MTD-736-0169
...
13
Retaining Strip MTD-14836
...
14
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
15
Rear Flap Ass'y. MTD-731-0794
...
16
22" Deck Ass'y. MTD-16526
...
17
HEX NUT 5/16-18 MTD-712-3010
...
18
Flange Bearing MTD-748-0147
...
19
Shoulder Bolt .50" Dia. MTD-738-0507B
...
20
Spring Lever MTD-732-0417A
...
21
Pivot Bar-R.H. MTD-14765
...
xx
Pivot Bar-L.H. (Not Shown) MTD-14766
...
22
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
23
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
24
Index Plate MTD-14764C
...
25
Bell-Wash. .345" I.D. MTD-736-0242
...
26
Rear Height Adj. Ass'y. Comp.-R.H. MTD-16106
...
xx
Rear Height Adj. Ass'y. Comp.-L.H. (Not Shown) MTD-16107
...
...
...
