product name

MTD 118-062C000 (1988) Push Walk-Behind Mower

Model: 118-062C000 (1988)

Save
Part Not Listed?Part Not Listed?
product name

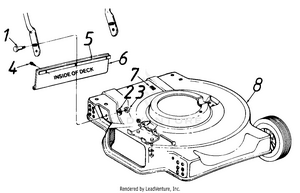

Parts01

...
...
1
Shld. Bolt .437" Dia. x .268 MTD-738-0296

...
2
Bell-Wash. .345" I.D. x .88 MTD-736-0242

...
3
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429

...
4
Hex Screw, 1/4-14 x 0.625" MTD-710-0896

...
5
Retainer Strip MTD-14846

...
6
Rear Flap Ass'y. MTD-731-0794

...
7
Plastic Plug MTD-731-0564

...
8
20" Deck Ass'y. (050C Series) MTD-15713

...
xx
22" Deck Ass'y. (060C Series) MTD-16527
...
...
...
