MTD 11701C (1986) Push Walk-Behind Mower

Model: 11701C (1986)

Save
Part Not Listed?Part Not Listed?
product name

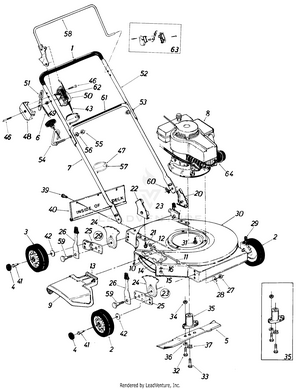

Rotary

...

...
2
Front Wheel Ass'y. Comp. 8 x 1.75 MTD-734-0719

...
3
Rear Wheel Ass'y. Comp. 8x 1.75 MTD-734-0719

...
4

...
5
20" Blade MTD-742-0123

...
6
Throttle Cable MTD-946-1115

...
7
Lower Handle MTD-749-0928A-0637

...
8
3 1/2 H.P.Engine Tecumseh TVS 90-431870 MTD-NA

...
9
Chute Deflector Ass'y. Comp. MTD-11683

...
10
Adapter Plate MTD-11130

...
11
Pivot Pin MTD-711-0555

...
12
PUSH NUT MTD-726-0106

...
13
Torsion Spring MTD-732-0253

...
14
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289

...
15
Hex Nut 1/4-20 Thd. MTD-912-0287

...
16
L-Wash. 1/4" I.D. MTD-936-0329

...
20
Handle Brkt. Ass'y. L.H. MTD-12935

...
21
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. MTD-710-0603

...
22
Handle Brkt. Ass'y. R.H. MTD-12936

...
23
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
24
Height Adjustment Plate MTD-787-01290A

...
25
Pivot Bar MTD-15262B

...
26
Front Spring Lever MTD-94832

...
27
Hex Nut 3/8-16 Thd. MTD-712-0798

...
28
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331

...
29
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761

...
30
20" Deck Ass'y. Comp. MTD-14920

...
31
TT Screw, 3/8-16 x 1.00 MTD-710-0654A

...
32
Hex Bolt 5/16-18 x 1.0" Lg. (Grade 8) MTD-710-0888

...
33
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331

...
34
Hex Nut 5/16-24 Thd. MTD-912-3057

...
35
Blade Adapter Kit MTD-753-0348

...
36
Lock Wash. 5/16" I.D. MTD-936-0119

...
37
L-Wash. 3/8" I.D. H.D. MTD-736-0217

...
39
Hex Screw, 1/4-14 x 0.625" MTD-710-0896

...
40
Rear Flap Ass'y. MTD-731-0820

...
41
Shld. Bolt .498" Dia. x 1.45" MTD-738-0102

...
42
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105

...
43
Clutch Control Cable 45" Lg. MTD-946-0477A

...
46
Truss Mach. Self-Tap Scr. #12 x 1.5" Lg. MTD-710-0796

...
47
Cable Tie MTD-725-0157

...
48
Control Panel Half MTD-731-0816

...
49
Control Disc Pin MTD-731-0524

...
50
Clutch Panel Half MTD-731-0817

...
51
Throttle Control Lever MTD-931-0972

...
52
Upper Handle MTD-749-0536

...
53
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671

...
54
Rope Guide Bolt MTD-710-0842

...
55
HEX NUT 5/16-18 MTD-712-3010

...
56
Lock Wash. 5/16" I.D. MTD-936-0119

...
57
Cable Tie MTD-725-0157

...
58
Control Handle Ass'y. R.H. MTD-14320

...
59
Shoulder Bolt .50" Dia. MTD-738-0507B

...
60
Hairpin Cotter MTD-714-0104

...
61
Instruction Label Handle MTD-777-5776

...
62
Control Label Throttle MTD-777-5773

...
63
Kit Control Housing Comp. MTD-753-0360

...
64
Spark Plug Boot MTD-735-0639

...
xx
Hardware Pack MTD-8701-400-6
...
...
...
