MTD 115-112-000 (1985) Push Walk-Behind Mower

Model: 115-112-000 (1985)

Save
 Part Not Listed?Part Not Listed?
product name

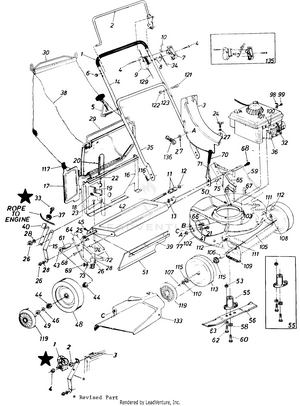

Parts01

...
...
1
Grip MTD-718-0145
...
2
Control Handle Ass'y. -L.H. MTD-14321
...
3
Top Discharge Chute Ass'y. Top Discharge Model 112 Only MTD-731-0733
...
4
Truss Mach. Scr. #12 x 1.50" Lg. MTD-710-0796
...
5
ope Guide Bolt MTD-710-0842
...
6
Cap Speed Nut .31 Dia. MTD-726-0135
...
7
Control Panel Half MTD-731-0523
...
8
Control Disc Pin MTD-731-0524
...
9
Clutch Panel Half MTD-731-0526
...
10
Throttle Control Lever MTD-931-0972
...
11
Spacer.526" I.D. x .690" O.D. x .640" Lg. MTD-711-0500
...
12
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
13
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
14
Upper Handle Chrome MTD-749-0437
...
15
Panel Support Brkt. Top Discharge Model 112 Only MTD-16129A-0637
...
16
Top Catcher Panel Top Discharge Model 112 Only MTD-16140
...
17
Top Door Top Discharge Model 112 Only MTD-16145
...
18
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
19
Torsion Spring MTD-732-0483A
...
20
Pivot Pin .187" Dia. x 7.25" Lg. MTD-747-0514
...
21
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
22
Truss Mach. Scr. 1/4-20 x.75" Lg. Top Discharge Model 112 Only MTD-710-0924
...
23
Hex Bolt 1/4-20 x .50" Lg. Top Discharge Model 112 Only MTD-910-0289
...
24
Wing Bolt 1/4-20 x .62" Lg. MTD-710-0934
...
25
Truss Mach. Scr. 1/4-20 x .62" Lg. Top Discharge Model 112 Only MTD-710-0258
...
26
Hex Nut 1/4-20 Thd. Top Discharge Model 112 Only MTD-912-0287
...
27
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
28
L-Wash. 1/4" I.D. Top Discharge Model 112 Only MTD-936-0329
...
29
Front Grass Catcher Frame Top Discharge Model 112 Only MTD-747-0494
...
30
Grass Catcher Handle MTD-747-0495
...
32
Spark Plug Insulator MTD-735-0639
...
33
TT Screw, 3/8-16 x 1.00 Top Discharge Model 112 Only MTD-710-0654A
...
34
Throttle Wire-58" Lg. MTD-946-0674A
...
35
Lower Handle MTD-749-0907B
...
36
Engine MTD-NA
...
37
Flanged Ball Bearing 3/8" I.D. MTD-741-0267
...
38
21" Top Discharge Grass Bag Top Discharge Model 112 Only MTD-764-0212
...
39
Retaining Strip MTD-14835
...
40
Rope Guide Brkt. Top Discharge Model 112 Only MTD-16324
...
41
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0204
...
42
Rear Axle Ass'y. MTD-16131
...
43
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
44
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
46
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
xx
Hex L-Nut 3/8-24 Thd. MTD-912-0296
...
48
Rear Wheel Ass'y. Comp. 8 x 1.75 MTD-734-1026
...
49
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
50
Plug MTD-731-0564
...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0672A
...
53
Hex Nut 5/16-24 Thd. MTD-912-3057
...
55
Blade Adapter Kit MTD-753-0348
...
56
21" Blade MTD-742-0289
...
58
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
59
Height Adj. Rod 1.50" x 19.42" Lg. MTD-747-0510
...
60
Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5) MTD-710-0331
...
61
Spacer.51" I.D. x .69" O.D. x.690" Lg. MTD-748-0191
...
62
Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) MTD-710-0888
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-16136
...
65
L.H. Handle Wheel Brkt. Ass'y. MTD-16137
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex Wash. Hd. B-Tap Scr. 5/16-18 MTD-710-0603
...
68
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0143
...
71
Height Adj. Lever MTD-732-0473B
...
72
Extension Spring .50" O.D. x 3.80" Lg. MTD-732-0481
...
73
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
74
Spacer.385" I.D. x .502" O.D. x .270" Lg. MTD-750-0526
...
75
Shld. Spacer .500" Dia. x .100 MTD-750-0624
...
77
Bolt Retainer 1/4 X .50" O.D. MTD-726-0233
...
98
Throttle Control Cable Clip MTD-12894
...
99
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
100
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
101
Casing Clamp MTD-751-0333
...
102
21" Deck Ass'y. MTD-16125
...
103
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
xx
Speed Nut 1/4-20 U-Type MTD-712-0185
...
105
Front Axle Ass'y. MTD-10662
...
106
Sleeve .526" I.D. x .690" O.D. x .880" Lg. MTD-711-0313
...
107
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
108
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
109
Extension Spring .50" O.D. x 3.20" Lg. MTD-732-0482
...
110
Fl-Wash. .531" I.D. x .930" O.D. MTD-736-0160
...
111
LOCK WASHER 3/8 X.56 OD MTD-736-0221
...
112
Shld. Bolt .623" Dia. x .425 MTD-738-0615
...
113
Front-Wheel Ass'y. Comp. 7 x 1.75 MTD-734-1264
...
115
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
116
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
117
Door Grip x 2.5 Top Discharge Model 112 Only MTD-720-0208
...
xx
Cable Tie (Not Shown) MTD-726-0192
...
119
Hub Cap Plastic MTD-NA
...
121
Curved Carr. Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
122
HEX NUT 5/16-18 MTD-712-3010
...
123
Lock Wash. 5/16" I.D. MTD-936-0119
...
129
Clutch Control Cable 45" Lg. MTD-946-0477A
...
133
Side Chute Deflector (102 Only) MTD-16148
...
135
Kit Control Housing Comp. MTD-753-0360
...
136
Wing Nut MTD-712-0109
...
xx
Hub Caps MTD-NA
...
xx
Red MTD-731-0124
...
xx
Orange MTD-731-0254
...
xx
Black MTD-731-0354
...
xx
Gray MTD-731-0355

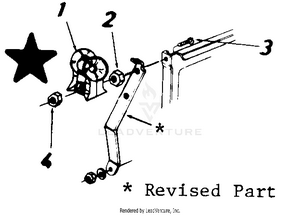

Parts02

...
...
1
Rope Guide MTD-719-0279
...
2
HEX NUT 5/16-18 (Spacer) MTD-712-3010
...
3
Truss Mach. Scr. 1/4-20 x 1.5" Lg. MTD-710-0578
...
4
Hex Nut 1/4-20 Thd. MTD-912-0287
...
...
...
