MTD 11305S (1985) Push Walk-Behind Mower

Model: 11305S (1985)

Save
 Part Not Listed?Part Not Listed?
product name

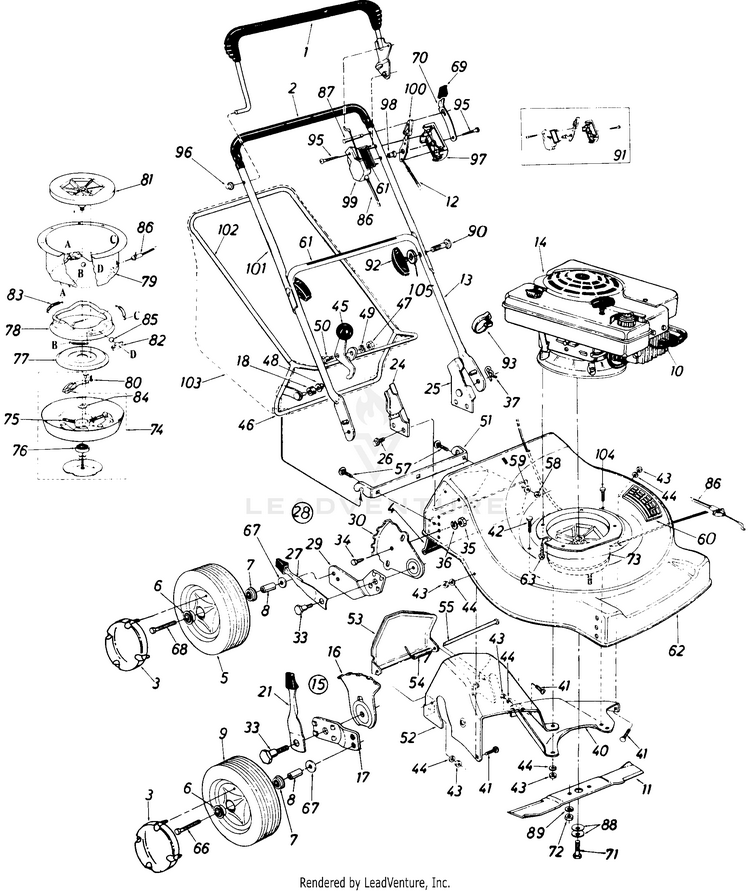

Rotary

...
...
1
Control Handle Ass'y. L.H. MTD-731-0609
...
2
Grip MTD-718-0145
...
3
Hub Cap MTD-731-0571
...
4
Rear Flap Ass'y. MTD-731-0665
...
5
Rear Wheel Ass'y. 8 x 1.75 MTD-734-0657
...
6
Ball Bearing 3/8" I.D. MTD-741-0267
...
7
BALL BEARING MTD-941-0484
...
8
Spacer 3/8" 1 .D. MTD-750-0434
...
9
Front Wheel Ass'y. 8 x 1.75 MTD-734-0657
...
10
Spark Plug Boot MTD-735-0639
...
11
20" Blade MTD-742-0220
...
12
Throttle Cable MTD-946-1115
...
13
Lower Handle MTD-749-0907B
...
14
3.5 H.P. Engine Tec. TVS 90-43261 MTD-NA
...
15
Height Adj. Ass'y. Comp. (R.H.) (Front) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) (Front) (Not Shown) MTD-753-06761
...
16
Height Adjustment Plate MTD-787-01290A
...
17
Pivot Bar MTD-15262B
...
18
Plastic Roller MTD-731-0430
...
xx
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
xx
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
21
Front Spring Lever MTD-94832
...
xx
HEX SCREW SEMS 3/8-16 x .62 MTD-710-0209
...
24
Handle Brkt. Ass'y.-R.H. MTD-12296B-0637
...
25
Handle Brk't. Ass'y. L.H. MTD-12297
...
26
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
27
Spring Lever MTD-732-0417A
...
28
Height Adj. Assy. R.H. (Rear) MTD-16106
...
xx
Height Adj. Ass'y. L.H. (Rear) (Not Shown) MTD-16107
...
29
Rear Pivot Bar R.H. MTD-14765
...
xx
Rear Pivot Bar L.H. MTD-14766
...
30
Index Plate MTD-14764C
...
xx
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
xx
Bell-Wash. .515" I.D. x 1.14" MTD-736-0255
...
33
Shoulder Bolt .50" Dia. MTD-738-0507B
...
34
Hex Wash. Hd. Tap Scr. 1/4 x .62" Lg. MTD-710-0892
...
35
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
36
L-Wash. 3/8 I.D.* MTD-736-0169
...
37
Hairpin Cotter MTD-714-0104
...
40
Rear Chute Baffle L.H. MTD-13405
...
41
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
42
Hex Bolt 1/4-20 x .88" Lg.* MTD-710-0206
...
43
Hex Nut 1/4-20 Thd. MTD-912-0287
...
44
L-Wash. 1/4" I.D. MTD-936-0329
...
45
Cam Lever Ass'y. MTD-13435
...
46
Grass Catcher Lower Frame Ass 'y. MTD-13924
...
47
HEX NUT 5/16-18 MTD-712-3010
...
48
Push Cap 3/8 Rod MTD-726-0100
...
49
Lock Wash. 5/16" I.D. MTD-936-0119
...
50
Shld. Bolt .437" Dia. x .180 MTD-738-0140
...
51
Hitch Brk't. MTD-14012
...
52
Rear Chute Ass'y. MTD-14235
...
53
Chute Door MTD-13407
...
54
Torsion Spring MTD-732-0346
...
55
Hinge Pin MTD-738-0386
...
57
Carr. Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
58
Sems Nut 1/4-20 Thd. MTD-712-0271
...
59
Fl-Wash. .285" I.D. x 1.25" MTD-736-0211
...
60
Foot Pad MTD-731-0756
...
61
Control Labels MTD-777-5196
...
62
20" Deck Ass'y. MTD-16108
...
63
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
66
Hex Scr. 3/8-16 x 1.75" Lg. MTD-710-0347
...
67
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
68
Hex Bolt 3/8-16 x 1.75" Lg. MTD-710-0347
...
69
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
70
Lockout Spring MTD-732-0401
...
71
Hex Cl-Scr. 3/8-24 x 2.0" Lg. MTD-710-0818
...
72
Hex Nut 3/8-24 Thd. MTD-712-0241
...
73
Blade Brake/Clutch Ass'y. Comp. MTD-717-0480
...
74
Clutch Blade Housing Ass'y. MTD-14300
...
75
Compression Spring MTD-732-0396
...
76
BALL BEARING MTD-941-0600
...
77
Clutching Cone MTD-14304
...
78
Brake Cup Cone MTD-14305
...
79
Clutch Housing MTD-14306
...
80
Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
81
Fan Adapter MTD-719-0256
...
82
Ball Block MTD-731-0520
...
83
Extension Spring MTD-732-0397
...
84
Fl-Wash. .690" I.D. x 1.06" MTD-736-0333
...
85
Steel Ball .500" Dia. MTD-741-0326
...
86
Clutch Cable 46" MTD-746-0400
...
87
Lock Pin MTD-731-0607
...
88
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
89
L-Wash. 3/8" I.D. MTD-736-0169
...
90
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
91
Kit Control Housing Comp. MTD-753-0361
...
92
Star Knob MTD-720-04072A
...
93
Cable Tie MTD-726-0192
...
95
Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
96
Push Cap 5/16" Rod MTD-726-0135
...
97
Control Panel Half MTD-731-0523
...
98
Conrol Disc Pin MTD-731-0524
...
99
Clutch Panel Half MTD-731-0526
...
100
Throttle Control Lever MTD-931-0972
...
101
Upper Handle Chrome MTD-749-0438D-0637
...
102
Grass Catcher Upper Frame MTD-749-0512
...
103
Grass Bag MTD-764-0191
...
104
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
105
Bell-Wash. 5/16" I.D. MTD-736-0242
...
xx
Grass Catcher Comp. MTD-19019
...
...
...
