MTD 11301S (1985) Push Walk-Behind Mower

Model: 11301S (1985)

Save
 Part Not Listed?Part Not Listed?
product name

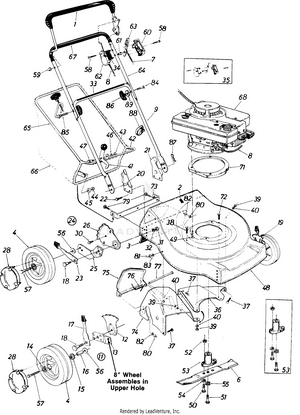

Rotary

...
...
1
Control Handle Ass'y. L.H. MTD-731-0609
...
2
Plug MTD-731-0564
...
3
Rear Flap Ass'y. MTD-731-0665
...
4
Wheel Ass'y. Comp. 8 x 1.75 MTD-734-0657
...
6
20" Blade MTD-742-0123
...
7
Throttle Cable MTD-946-1115
...
8
CONTROL CABLE 55" MTD-946-0479A
...
9
Lower Handle MTD-749-0907B
...
11
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
12
Height Adjustment Plate MTD-787-01290A
...
13
Pivot Bar 8" Wheel assembles in upper hole MTD-15262B
...
14
Ball Bearing 3/8 I.D. MTD-741-0267
...
15
BALL BEARING MTD-941-0484
...
16
Spacer MTD-750-0434
...
17
Front Spring Lever MTD-94832
...
18
Shoulder Bolt .50" Dia. MTD-738-0507B
...
19
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
20
Handle Brkt. Ass'y.-R.H. MTD-12296B-0637
...
21
Handle Brk't. Ass'y. L.H. MTD-12297
...
22
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
23
Spring Lever MTD-732-0417A
...
24
Rear Height Adj. Ass'y. R.H. MTD-16106
...
xx
Rear Height Adj. Ass'y. L.H. (Not Shown) MTD-16107
...
25
Rear Pivot Bar R.H. MTD-14765
...
xx
Rear Pivot Bar L.H. (Not Shown) MTD-14766
...
26
Index Plate MTD-14764C
...
28
Hub Cap MTD-731-0571
...
30
Hex Wash. Hd. Tap Scr. 1/4 x .62" Lg. MTD-710-0892
...
31
Hex Nut 3/8-16 Thd. MTD-712-0798
...
32
L-Wash. 3/8 I.D. MTD-736-0169
...
33
Instruction Label Handle MTD-777-3455
...
34
Control Label Throttle MTD-777-5168
...
35
Kit Control Housing Comp. MTD-753-0360
...
36
Rear Chute Baffle L.H. MTD-13405
...
37
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
38
Hex Bolt 1/4-20 x .88" Lg. MTD-710-0206
...
39
Hex Nut 1/4-20 Thd. MTD-912-0287
...
40
L-Wash. 1/4" I.D. MTD-936-0329
...
41
Cam Lever Ass'y. MTD-13435
...
42
Grass Catcher Lower Frame MTD-13924
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Push Cap 3/8" Rod MTD-726-0100
...
45
Plastic Roller MTD-731-0430
...
46
Lock Wash. 5/16" I.D. MTD-936-0119
...
47
Shld. Bolt .437" Dia. x .180 MTD-738-0140
...
48
20" Deck Ass'y. MTD-16108
...
49
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
50
Hex Bolt 5/16-18 x 1.0" Lg. Grade 5 MTD-710-0888
...
51
Hex Bolt 3/8-24 x 2.25" Lg. Grade 5 MTD-710-0331
...
52
Hex Nut 5/16-24 Thd. MTD-912-3057
...
53
Blade Adapter Kit MTD-753-0348
...
54
Lock Wash. 5/16" I.D. MTD-936-0119
...
55
L-Wash. 3/8 I.D. (H.D.) MTD-736-0217
...
56
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
57
Axle Bolt MTD-710-0347
...
58
Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
59
Push Cap 5/16" Rod MTD-726-0135
...
60
Control Panel Half MTD-731-0523
...
61
Control Disc Pin MTD-731-0524
...
62
Clutch Panel Half MTD-731-0526
...
63
Throttle Control Lever MTD-931-0972
...
64
Upper Handle Chrome MTD-749-0438D-0637
...
65
Grass Catcher Upper Frame MTD-749-0278
...
66
Grass Bag MTD-764-0170
...
67
Grip MTD-718-0145
...
68
3-1/2 H.P. Engine Tec. TVS 90-43262 MTD-NA
...
71
Engine Mounting Cover MTD-13773
...
72
Hex Wash Hd. Self-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
73
Grass Catcher Hitch Brk't. MTD-14012
...
74
Rear Chute Baffle R.H. MTD-14235
...
75
Chute Door MTD-13407
...
76
Torsion Spring MTD-732-0346
...
77
Hinge Pin .25" Dia. x 7.25" MTD-738-0386
...
79
Carr. Bolt 1/4-20 x .75" Lg. MTD-710-0703
...
80
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
81
Hex Nut 1/4-20 Thd. MTD-912-0287
...
82
Fl-Wash. .281n l.D. x 1.25" MTD-736-0211
...
83
L-Wash. 1/4" I.D. MTD-936-0329
...
84
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
85
Rope Guide Bolt MTD-710-0842
...
86
Star Knob MTD-720-04072A
...
87
Hairpin Cotter MTD-714-0104
...
88
Cable Tie MTD-726-0192
...
89
Bell-Wash. 5/16" I.D. MTD-736-0242
...
xx
Grass Catcher Comp. MTD-19019
...
...
...
