MTD 111008R (1991) Push Walk-Behind Mower

Model: 111008R (1991)

Save
 Part Not Listed?Part Not Listed?
product name

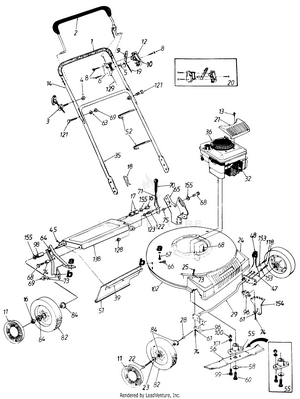

Rotary

...
...
1
Grip Foam MTD-720-0295
...
2
Control Handle Ass'y. MTD-731-0609
...
3
Rope Guide Bolt MTD-710-1205
...
4
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
5
Control Disc Pin MTD-731-0524
...
6
Clutch Panel Half MTD-731-0816A
...
8
Truss Mach Scr. #12 x 1.5" Lg. MTD-710-0796
...
9
Throttle Control Lever MTD-931-0972
...
10
Control Panel Half MTD-731-0817A
...
11
Hub Cap (Beige) MTD-731-0982C
...
12
Throttle Control Label MTD-777-5812
...
13
Truss Hd. AB-Tap Scr. #6 x .62" Lg. MTD-710-0936
...
14
Upper Handle MTD-749-0756A
...
16
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
17
Spacer .526" I.D. x .64" Lg. MTD-711-0500
...
18
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
19
Throttle Wire 55" Lg. MTD-946-0671A
...
20
Kit Control Housing Comp. MTD-753-0430
...
21
Engine Cover MTD-720-0265
...
22
Front Axle Bolt MTD-738-0102
...
23
Wave Wash. .53" I.D. x .78" MTD-736-0232
...
24
Plastic Front End MTD-731-0865
...
25
HL Screw, 5/16-14 x .750 MTD-710-1242
...
28
Bell-Wash. .38" I.D. x .88" MTD-736-0105
...
29
Front Axle Ass'y. MTD-17733
...
32
Spark Plug Insulator MTD-735-0639
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine MTD-NA
...
39
Retaining Strip MTD-14835
...
45
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
47
Spring Lever MTD-732-0639
...
48
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
51
Rear Flap 3.75" x 17.30" Lg. MTD-731-0672A
...
52
Cable Tie MTD-725-0157
...
55
Blade Adapter Kit MTD-753-0519
...
56
21" Mulching Blade MTD-942-0721
...
58
Bell-Wash. .46" I.D. MTD-936-0453
...
60
Hex Bolt 7/16-20 x 2.5" MTD-710-0561
...
61
L-Wash. 1/4" I.D. MTD-736-0389
...
63
Lock Wash. 5/16" I.D. MTD-936-0119
...
64
R.H. Handle Wheel Brkt. Ass'y. MTD-682-3006
...
65
L.H. Handle Wheel Brkt. Ass'y. MTD-682-3007
...
66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 MTD-712-3010
...
70
Grip MTD-720-0223
...
71
Height Adj. Lever MTD-732-0580
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
Screw, Hex MTD-710-0788
...
75
Shld. Spacer .5" Dia. MTD-750-0624
...
82
Wheel Ass'y. Comp. Rear MTD-734-1517B
...
84
Fl-Ball Brg. 1/2" I.D. MTD-941-0180
...
96
Block Bushing MTD-741-0492A
...
98
Sleeve.526" I.D. MTD-711-0313
...
99
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
21" Deck Ass'y. MTD-782-0016
...
118
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
121
Curved Carr. Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
123
L-Wash. 3/8" I.D. MTD-736-0169
...
128
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
129
Control Cable 39" MTD-746-0476A
...
138
Rear Axle Ass'y. MTD-682-7508
...
153
External L-Wash. 1/4" I.D. MTD-736-0222
...
154
Height Adj. Brkt. MTD-17059
...
155
Fl-Wash. .385" I.D. x .37" O.D. MTD-736-0300
...
...
...
