MTD 110050R (1990) Push Walk-Behind Mower

Model: 110050R (1990)

Save
 Part Not Listed?Part Not Listed?
product name

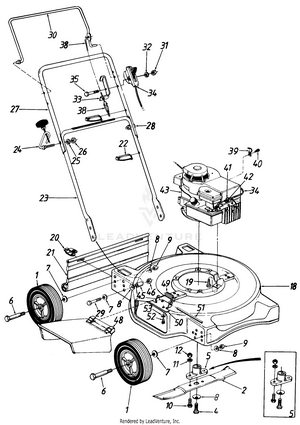

Rotory

...
...
1
Wheel Ass'y. Complete MTD-734-1170
...
2
20" Blade MTD-742-0520
...
xx
22" Blade MTD-742-0522
...
4
Hex Bolt 3/8-24 x 1.5" Lg. MTD-710-1044
...
5
Blade Adapter Kit (Keyed) MTD-753-0484
...
6
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
7
Bell-Wash. .380" I.D. x .88" MTD-736-0105
...
8
Bell-Wash. .39" I.D. x 1.13 MTD-736-0331
...
9
Hex Nut 3/8-16 Thd. MTD-712-0798
...
10
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
11
L-Wash. 3/8" I.D. MTD-736-0169
...
12
Hex Nut 3/8-24 Thd. MTD-712-0241
...
18
20" Deck Ass'y. MTD-17038
...
19
Hex Wash. Hd. Scr. 3/8-16 x 1" Lg. MTD-710-0654A
...
20
Hinge Clip MTD-17098P
...
21
Rear Flap MTD-731-0872B
...
22
Cable Tie MTD-725-0157
...
23
Lower Handle MTD-749-0928A-0637
...
24
Rope Guide Bolt MTD-710-0842B
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
Upper Handle MTD-749-0756
...
28
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
29
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
30
Control Handle MTD-747-0748
...
31
Hex Nut 1/4-20 Thd. MTD-912-0287
...
32
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
33
Cable Mounting Bracket MTD-17174
...
34
Throttle Control MTD-746-0800A
...
35
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
38
Control Cable MTD-946-0553
...
39
Casing Clamp MTD-12894A
...
40
Hex B-Tap Scr. #10 x .38" MTD-910-0429
...
41
Casing Clamp MTD-751-0369
...
42
Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg. MTD-710-0227
...
43
Engine MTD-NA
...
45
Spacer .381" I.D. x .56" O.D. x.75" Lg. MTD-750-0727
...
46
Hex L-Nut 3/8-24 Thd. MTD-912-0355
...
48
Chute Deflector Ass'y. MTD-931-1034B
...
49
Torsion Spring MTD-932-0593
...
50
Chute Deflector Adapter MTD-17032A
...
51
Hinge Pin MTD-747-0710A
...
52
Hex Self-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
53
SPRING WASHER BELL MTD-736-0270
...
...
...
