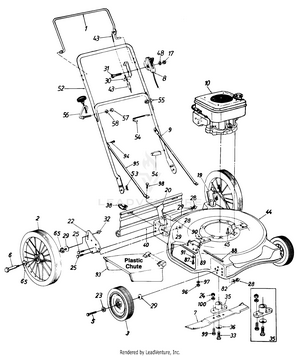

MTD 110-504R098 (1990) Push Walk-Behind Mower

Model: 110-504R098 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

504R098

...
...
1
Control Handle Ass'y. MTD-747-0748
...
2
WHEEL ASSEMBLY W/TIRE MTD-734-0244
...
3
Front Wheel Ass'y. Comp. MTD-734-1161A
...
5
Front Axle Bolt MTD-738-0213
...
6
Shoulder Screw MTD-938-0481A
...
7
22" Blade MTD-742-0522
...
8
Throttle Control Ass'y. Comp. MTD-946-0645A
...
9
Lower Handle MTD-749-0928A-0637
...
10
3.5 H.P. Engine-See Breakdown MTD-NA
...
17
Hex Nut 1/4-20 Thd. MTD-912-0287
...
19
Handle Mount Brkt.-L.H. MTD-17189
...
20
Handle Mount Brkt.-R.H. MTD-17188
...
22
Mounting Plate MTD-16645C
...
23
Wave Wash. .53" I.D. MTD-736-0232
...
24
Hex Nut 3/8-24 Thd. MTD-712-0241
...
25
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
30
Cable Brkt. MTD-17174
...
31
Hex Bolt 1/4-20 x 2.0" Lg. MTD-710-0501
...
32
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
33
Hex Bolt 7/16-20 x 1.5" Lg. (Grade 5) MTD-710-0757
...
35
Blade Adapter Kit MTD-753-0485
...
36
Bell-Wash. .46" I.D. MTD-936-0453
...
38
Hinge Clip MTD-17098P
...
40
Rear Flap Ass'y. MTD-731-1026
...
43
Control Cable-43" MTD-746-0734
...
44
22" Deck Ass'y. MTD-97046
...
45
Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg. MTD-710-0654A
...
xx
Hex Bolt 1/4-28 x 1.25" Lg. MTD-710-0428
...
xx
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
48
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
52
Upper Handle MTD-749-0755
...
53
Intern. Cot. Pin 5/16" Dia. MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
Curved Carriage Bolt 5/16-18 x 1.38" Lg. MTD-710-0671
...
56
Rope Guide Bolt MTD-710-0842B
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Lock Wash. 5/16" I.D. MTD-936-0119
...
65
Bearing 1/2" I.D. MTD-748-0147
...
82
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
87
Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
88
Hinge Pin MTD-747-0710A
...
89
Chute Deflector Adapter MTD-17032A
...
90
Torsion Spring MTD-932-0593
...
91
SPRING WASHER BELL MTD-736-0270
...
93
Chute Deflector Ass'y. MTD-931-1034B
...
94
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
95
Strut Bar MTD-749-0771
...
96
Hex Nut 1/4-20 Thd. MTD-912-0287
...
97
SPRING WASHER BELL MTD-736-0270
...
98
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
99
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
100
Pin, Clevis, 5/8 Dia X 3-1/16 Lg MTD-711-0577
...
...
...
