MTD 110-017R000 (1990) Push Walk-Behind Mower

Model: 110-017R000 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

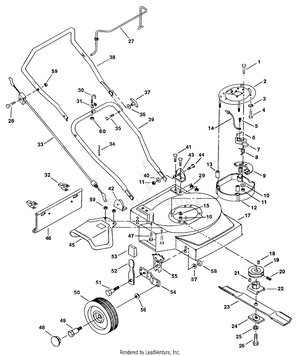

Parts

...
...
1
Hex Bolt 3/8-16 x 1.75" Lg. (Gr. 5) MTD-710-0347
...
2
Plate Assembly MTD-706-14499-00-90
...
3
Internal L-Wash. 1/4" I.D. MTD-736-0498
...
4
Hex Bolt 1/4-20 x 5/8" Lg. MTD-710-0258
...
5
Screw #6-20 x 3/8 Tapping MTD-706-11785-06
...
6
Contact-Brake Arm MTD-706-13863-01
...
7
Housing-Brake Spring MTD-706-13815-01
...
8
Spring-Brake Arm MTD-706-13865-02
...
9
Brake Arm & Pad Assembly MTD-706-13806-02
...
10
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
11
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
12
Spacer Ring MTD-706-10778-01
...
13
Spacer MTD-706-10777-01
...
14
Wire Assembly-Eng. Control MTD-706-13915
...
15
Fl-Wash. 5/16" I.D. MTD-706-10005
...
16
L-Nut 5/16-18 Thd. MTD-712-0429
...
17
Deck Assembly-16" Steel MTD-706-14487-00-14
...
18
Key-Square 5/32 x 1/2" MTD-706-13988
...
19
Pulley-Brake MTD-706-13856
...
20
Set Screw 5/16-18 x 3/8" MTD-706-16118
...
21
Key-Woodruff #6 MTD-706-10004
...
22
Adapter Blade Mtg. MTD-706-13807-01-05
...
23
Blade-16" Gas MTD-706-13813-00-08
...
24
Plate-Blade Retainer MTD-706-10110-00-05
...
25
L-Wash. 3/8" I.D. MTD-736-0217
...
26
Hex Bolt 3/8-24 x 1" Lg. (Special) MTD-710-1039
...
27
Lever-Engine Control MTD-706-13840-00-90
...
28
Hex Bolt 1/4-20 x 1-1/4" Lg. MTD-706-10007-20-09
...
29
L-Nut 1/4-20 Thd. MTD-712-0324
...
30
J-Bolt (Rope Guide) MTD-747-0779
...
31
Rope Guide Half MTD-706-10786
...
32
Hinge Clip MTD-17098P
...
33
Control Cable-Brake MTD-706-13816
...
34
Cable Tie MTD-725-0157
...
35
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
36
Saddle Washer MTD-706-10057-01
...
37
Star Knob MTD-720-04072A
...
38
Upper Handle MTD-706-13831-01-91
...
39
Lower Handle MTD-706-14486-01-91
...
40
Fl-Wash. 3/8" I.D. MTD-706-10067-01
...
41
Hex Bolt 1/4-20 x 1/2" Lg. MTD-706-10007-10-09
...
42
R.H. Handle Bracket MTD-706-10685-02-90
...
43
L.H. Handle Bracket MTD-706-10684-02-90
...
44
Hex Bolt 3/8-16 x 3/4" Lg. MTD-710-0216
...
45
Safety Chute Guard MTD-706-15491-01-90
...
46
Safety Trail Shield MTD-731-1027
...
47
Carriage Bolt 1/4-20 x 3/4" MTD-710-0134
...
48
Gray (1-7/8" Dia.) MTD-720-0258
...
49
Wheel Bolt MTD-738-0102
...
50
Front Wheel-6" MTD-706-15533-09
...
xx
Rear Wheel-7" MTD-706-15533-10
...
51
Pivot Bolt-Adjuster MTD-738-0507B
...
52
Front Spring Lever MTD-94832
...
53
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
54
Pivot Arm-Adjuster MTD-15262B
...
55
Height Adjustment Plate MTD-787-01290A
...
56
Bell-Wash. 3/8" I.D. x 7/8" O.D. MTD-736-0105
...
57
Bell Washer .39" I.d. x 1.38" O.D. MTD-936-0356
...
58
Hex Nut 3/8-16 Thd. MTD-712-0798
...
59
Flange Lock Nut 1/4-20 MTD-706-11909
...
60
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
...
...
