Kenmore DU3017

...
...
1
On/Off Switch KC01EDRZZ000
...
2
Body Plate KC06AEDCZ000
...
3
Switch Pedal/Button (Deco) 561035101
...
4
Holder KC11DEDCZ0000
...
5
Button (Deco) 561035102
...
6
Air Inlet Connection KC17HEDCZV06
...
7
Suction Inlet 561035103
...
8
Spring KC18DEDKZ000
...
9
Plastic Holder KC78NEDCZ000
...
10
Front Body 561035104
...
11
Rear Body (Deco) 561035105
...
12
Spring KC18DEDDZ000
...
13
Body Cover 561035106
...
14
Filter Cover (Deco) 561035107
...
15
Controller Box 561028107
...
16
Handle Release (Deco) 561035108
...
17
Upper Cord Storage Hook KC53EEDCZV06
...
18
Lower Cord Storage Hook KC54EEDCZV06
...
19
Lever Shaft KC56SEDCZ000
...
20
Holder / Stopper KC60DEDCZ000
...
21
Extension Wand Holder 561035109
...
22
Lever Guide KC72NEDCZ000
...
23
Overload Protector Pc KC76FEDCZ000
...
24
Connection Pipe 561035110
...
25
Locking Cam KC83DEDCZ000
...
26

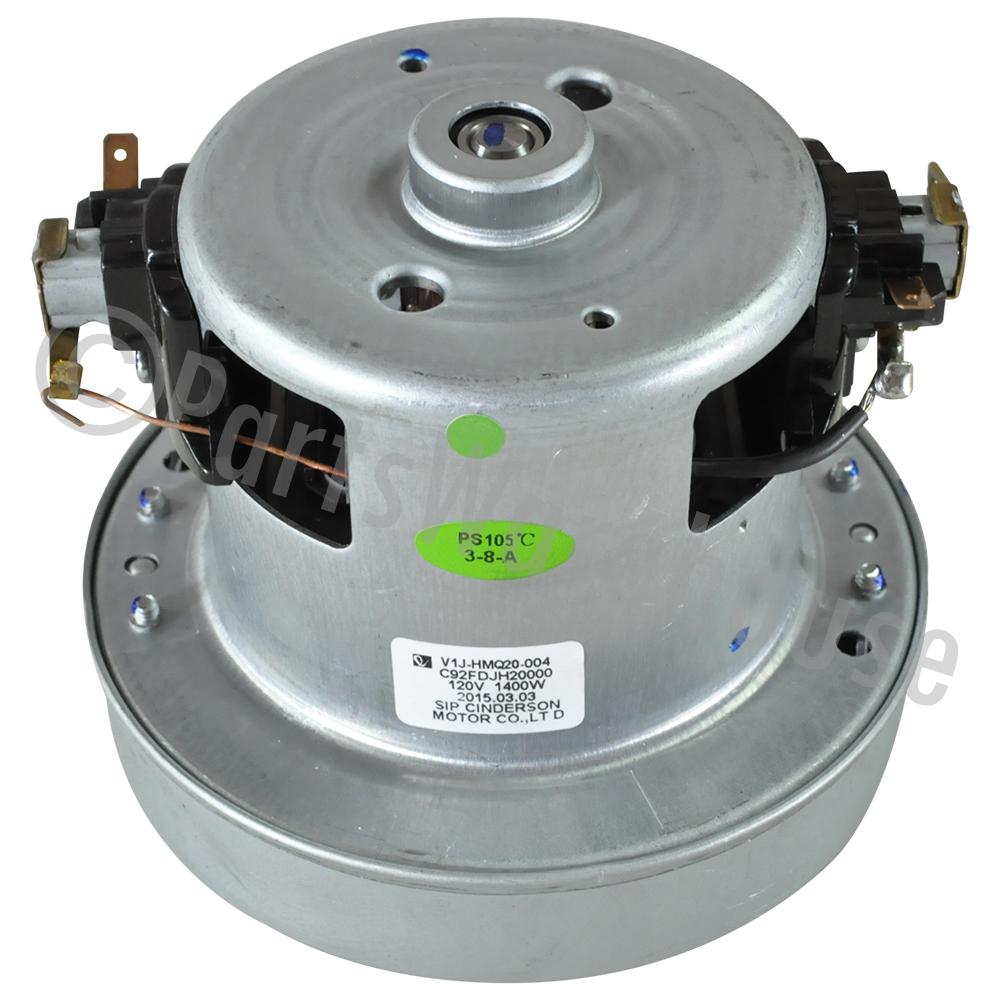

Fan Motor 591012134
...
27
Pipe Insert (Overmold) 561033114
...
28
Air Guide Unit 561035111
...
29
Screw 4368563
...
30
Contact Spring KC17EEDCZ000
...
31
Screw KSXTW4+16EFY
...
32
Exhaust Filter 561014108
...
33
Motor Support Cover KC63FEDCZV06
...
34
Motor Support Rubber (Rear) KC03FEDCZ000
...
35
Motor Support Rubber (Front) KC02FEDCZ000
...
36
Filter 561015211
...
37
Dust Compartment Packing KC66KEDCZ000
...
38
Brown Lead Wire KC80GEDAZ000
...
39
Brown Lead Wire KC80GEDBZ000
...
40
Brown Lead Wire KC80GEDEZ000
...
41
Blue Lead Wire KC82GEDCZ000
...
42
Blue Lead Wire KC82GEDDZ000
...
43
Dust Compartment Packing KC66KEDDZ000
...
44
Power Cord 561033118
...
45
Cord Stopper KC62ECHPZ000
...
46
Spring KC18DEDEZ000
...
47
Screw 561015151
...
48
Wire Connector KS4154460
...
49
Pvs Silicome Fiberglass Sleeving 561011136
...
50
Sealing Ring 561035112

Kenmore DU3017

...
...
1
Nozzle Housing (Deco) 561035113
...
2
On/Off Switch KC01EDRZZ000
...
3
Upper Body (Deco) KC02AEDCZ0U0
...
4
Lower Body KC03AEDCZV06
...
5
Agitator Cover (Deco) 561033121
...
6
Switch Pedal (Deco) 561035114
...
7
Front Motor Support KC07FEDCZ000
...
8
Nozzle Washer KC07REDCZ000
...
9
Latch (Nozzle) KC08DEDEZV06
...
10
Furniture Guard KC10AEDCZV06
...
11
Body Cap (Deco) 561035115
...
12
Body Supporter A 561035116
...
13
Button (Deco) 561035117
...
14
Body Supporter B 561035118
...
15
Switch Lever KC15EEDCZ000
...
16
Body Stopper 561035119
...
17
Roller Shaft KC16CEDCZ000
...
18
Roller Shaft KC16CDDEZ000
...
19
Ring Clip KC23FBVNZ000
...
20
Leaf Spring KC24DDWJZ000
...
21
Lower Plate KC27AEDCZV06
...
22
Belt KC28SEDCZ000
...
23
Contact Base KC32NEDCZ000
...
24
Contact Base Spacer KC33NEDCZ000
...
25
Connecting Terminal D KC43WEDCZ000
...
26
Pedal Spring Left KC57AEDCZ000
...
27
Hose Pipe Assembly 561015106
...
28
Overload Protector KC76KEDCZ000
...
29
Pcb B Unit KC85VDWJZ000
...
30
Nozzle Assembly 561033131
...
31
Motor Assembly (Dc) KC90FEDCZ000
...
32
Nozzle Roller (Overmold) KC90QEDCZV06
...
33
Agitator Assembly 561035120
...
34
Switch - On/Off KC98EDWFZ000
...
35
Wheel (Overmold) 561035121
...
36
Screw 4368563
...
37
Screw KSXTW4+16EFY
...
38
Locking Clip KC82DEDDZ000
...
39
Washer 4369562
...
40
Screw KSXSN4+6FS
...
41
Black Lead Wire Unit KC85GEDDZ000
...
42
White Lead Wire Unit KC85WEDAZ000
...
43
Black Lead Wire Unit KC85GEDEZ000
...
44
Brown Lead Wire Unit KC80GEDCZ000
...
45
Red Lead Wire Unit KC81GEDCZ000
...
46
Black Lead Wire Unit KC85GEDKZ000
...
47
Brown Lead Wire Unit KC80GEDDZ000
...
48
Screw KSXTW4+12T
...
49
Screw 561015183

Kenmore DU3017

...
...
1
Gasket A KC03LEDCZU00
...
2
Lid 561035122
...
3
Ornamental Plate KC21TEDCZ000
...
4
Dust Box Plate KC25KEDCZ000
...
5
Supporter Unit KC36KEDCZ000
...
6
Air Guide 561028119
...
7
Filter Case KC42KEDCZ0U0
...
8
Pre-Filter KC43KEDCZV0S
...
9
Primary Filter (Overmolded) KC44KDMTZ000
...
10
Valve Grommet KC45KEDCZV06
...
11
Handle (Lid) 561035123
...
12
Protector Cover KC68KCHPZV07
...
13
Protector KC69KCHPZV07
...
14
Spring 8191800
...
15
Dust Box Packing 561033138
...
16
Dust Packing KC74KEDCZU00
...
17
Dust Box Terminal 561035124
...
18
Partition Assembly KC97LEDCZ000
...
19
Screw 4368563
...
20
Dust Box Unit 561035125

Kenmore DU3017

...
...
1
Handle Assembly 561035126
...
2
Fixed Wand Unit 561035127
...
3
Rotating Fan Tool 561033145
...
4
2-In-1 Combo Tool KC88REDCZV06
...
5
Pet Handi-Mate KC80SEAFZV07
...
6
Use & Care Guide 561035128
...
7
Quick Start Guide 561035129
...
...
...
