Kenmore 116.31069110 Upright Vacuum

Model: 116.31069110

Save
 Part Not Listed?Part Not Listed?
product name

Kenmore 116.31069110

...
...
1
Hose Unit KC84PDTDZV06
...
2
Screw 4368563
...
3
Tool Caddy KC66PCHDZV07
...
4
Bag Supporter KC10KCTNZV07
...
5
Plug (Female) KC68ECTNZ000
...
6
Lead Wire, White KC43GBRFZ000
...
7
Suction Inlet Packing 4370575
...
8
Cord Stopper 4369538
...
9
Dust Compartment Packing KC74KCRCZ000
...
10
Extension Wand Holder KC70PCRCZV07
...
11
Dust Bag / Upright Hepa Sears No. 50690 / Kenmore Style No. 0, Available At Any Sears Retail Store KC16KCMPZ000
...
12
Handle Screw 4370779
...
13
Wire Nut (Small) 8174824
...
14
Dust Container KC40KCRDZV07
...
16
Motor Support Rubber 488380
...
17
Filter Cover KC41KCRCZV07
...
19
Hose Hook KC53PCHEZV06
...
20
Hose Hook KC53PCHDZV07
...
21
Exhaust Filter -Hepa Sears No. 20-86889 / Kenmore Style No. Ef1, Available At Any Sears Retail Store 8175062
...
22
Dust Compartment Packing KC74KCSVZ000
...
23
Locking Cam 8174943
...
24
Screw / Vis 8192713
...
26
Roller Shaft 4369561
...
27
Washer (2) 4369562
...
28
Wheel (2) 4370812
...
29
Stopper, Wheel (2) 4369564
...
30
Protector 4370429
...
31
Protector Spring KC70KCNFZG00
...
33
Air Outlet Packing KC45LCRCZ000
...
34
Screw KXTN4+12FFY
...
35
Motor Support Rubber 4370265
...
36
Air Guide - Right KC55LCRCZ000
...
37
Air Guide - Left KC54LCRCZ000
...
38
Dust Cover Door KC48HDTDZRUW
...
39
Motor, Fan 8192146
...
40
Flange, Motor KC25SCJYZ000
...
41
Lead Assembly KC99WBZHZ000
...
42
Wire Nut (Large) 4368522
...
44
Window KC21HCH0Z000
...
45
Bulb, Light 8192266
...
46
Lead Wire, White KC43GCHEZ000
...
47
Lead Wire, Black 8191894
...
48
Socket, Bulb KC93HCHDZ000
...
49
Dust Cover KC60KDTDZR0W
...
50

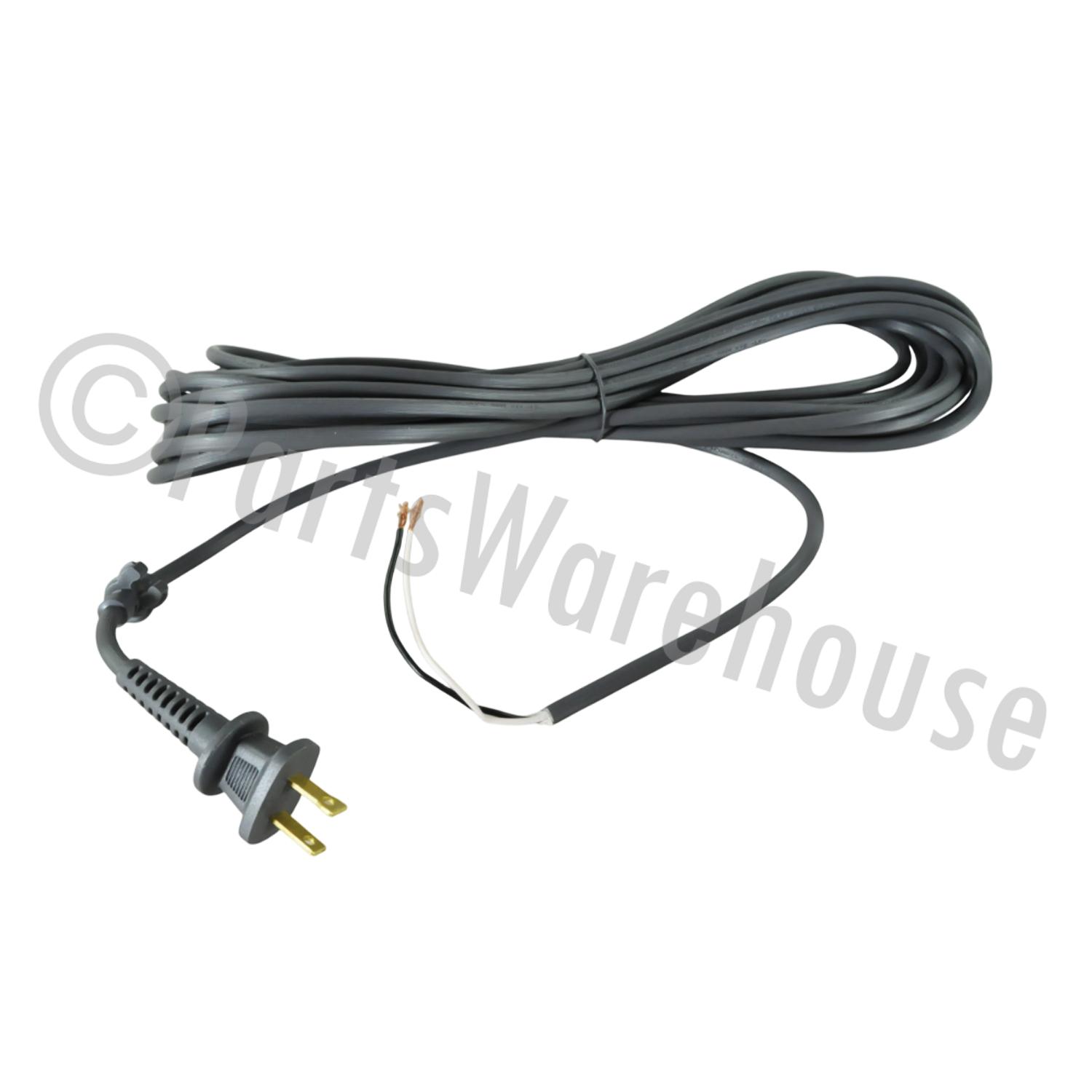

Cord, Power KC97EAABZV06
...
51
Filter Door KC02HCRCZV07
...
52
Protector Cover 4370408
...
53
Dust Cover Packing KC66KCRCZ000
...
54
Secondary Filter 4369572
...
55
Vac Switch 4370574
...
56
Vac Switch Tube KC62PAXKZ000
...
57
Owners Manual KC01ZDTDZ000
...
58
Repair Parts List KC40ZDTDZ0U0
...
59
Label KC21TDTDZ000
...
60
Label Wiring Diagram KC30ZDHDZ000

Kenmore 116.31069110

...
...
1
Nozzle Housing KC01ADTDZRUW
...
2
Screw 4369606
...
3
Cover, Foot Pedal 4370260
...
4
Guard, Furniture KC10ACKPZV06
...
5
Agitator Assembly KC84RCKPZ000
...
6
Lower Plate KC27ACKPZV06
...
7
Spring, Latch 4368644
...
8
Latch 4370077
...
9
Guard, Belt 4370274
...
10
Nozzle Hose KC34FDTDZV06
...
11
Belt Sears No. 20-40096, Available At Any Sears Retail Store 4369591
...
12
Screw 4368879
...
13
Belt Shifter Assy 4370393
...
14
Pedal 4370394
...
15
Spring, Pedal 4370258
...
16
Pedal Shaft 4370259
...
17
Screw 4368563
...
18
Sliding Knob Height Adjustment 4369542
...
19
Upper Body KC02ACKPZV06
...
20
Upper Body Cap KC12ACKPZV06
...
21
Nozzle Roller Assembly 8192737
...
22
Roller Shaft 4369499
...
23
Nozzle Roller Cam 4370768
...
24
Spring, (Nozzle) KC58ACRYZ000

Kenmore 116.31069110

...
...
1
Handle A KC22BCHEZR0W
...
2
Switch, Slide KC04EDTDZVU6
...
3
Plug (Male) KC68ECTKZ000
...
4
Handle B KC23BCHEZV07
...
5
Cord Hook 8192573
...
6
Screw 4368563
...
7
Micro Switch 4368653

Kenmore 116.31069110

...
...
1
Crevice Tool 4368684
...
2
Combination Brush 8192260
...
3
Brush, Holder Tufted 8192261
...
4
Fabric Brush 8192294
...
5
Handi-Mate Jr. KC80SDTDZV0N
...
6
Extension Wand 4370414
...
7
Suction Regulator 4368996
...
...
...
